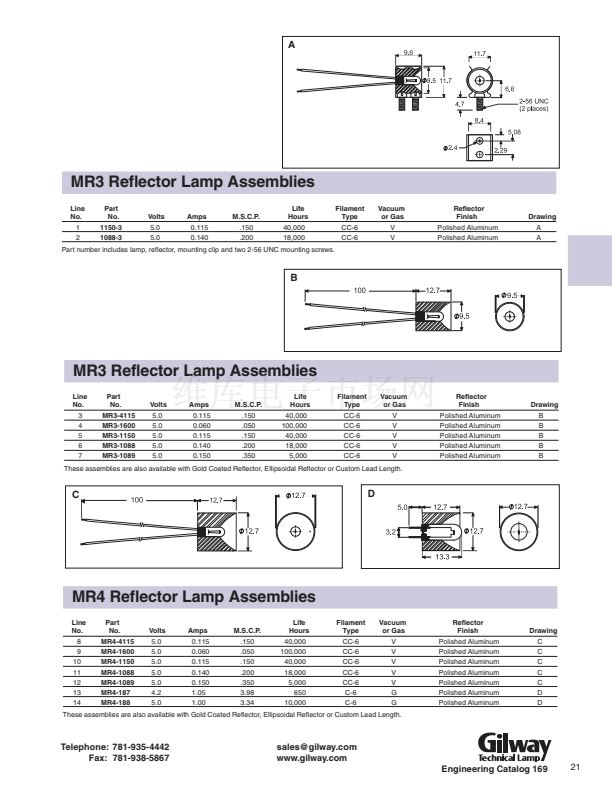

A
MR3 Reflector Lamp Assemblies
Line
No.
1
2
Part
No.
1150-3
1088-3
Volts
5.0
5.0
Amps
0.115
0.140
M.S.C.P.
.150
.200
Life
Hours
40,000
18,000
Filament
Type
CC-6
CC-6
Vacuum
or Gas
V
V
Reflector
Finish
Polished Aluminum
Polished Aluminum
Drawing
A
A
Part number includes lamp, reflector, mounting clip and two 2-56 UNC mounting screws.
B
MR3 Reflector Lamp Assemblies
Line
No.
3
4
5
6
7
Part
No.
MR3-4115
MR3-1600
MR3-1150
MR3-1088
MR3-1089
Volts
5.0
5.0
5.0
5.0
5.0
Amps
0.115
0.060
0.115
0.140
0.150
M.S.C.P.
.150
.050
.150
.200
.350
Life
Hours
40,000
100,000
40,000
18,000
5,000
Filament
Type
CC-6
CC-6
CC-6
CC-6
CC-6
Vacuum
or Gas
V
V
V
V
V
Reflector
Finish
Polished Aluminum
Polished Aluminum
Polished Aluminum
Polished Aluminum
Polished Aluminum
Drawing
B
B
B
B
B
These assemblies are also available with Gold Coated Reflector, Ellipsoidal Reflector or Custom Lead Length.
C
D
MR4 Reflector Lamp Assemblies
Line
No.
8
9
10
11
12
13
14
Part
No.
MR4-4115
MR4-1600
MR4-1150
MR4-1088
MR4-1089
MR4-187
MR4-188
Volts
5.0
5.0
5.0
5.0
5.0
4.2
5.0
Amps
0.115
0.060
0.115
0.140
0.150
1.05
1.00
M.S.C.P.
.150
.050
.150
.200
.350
3.98
3.34
Life
Hours
40,000
100,000
40,000
18,000
5,000
650
10,000
Filament
Type
CC-6
CC-6
CC-6
CC-6
CC-6
C-6
C-6
Vacuum
or Gas
V
V
V
V
V
G
G
Reflector
Finish
Polished Aluminum
Polished Aluminum
Polished Aluminum
Polished Aluminum
Polished Aluminum
Polished Aluminum
Polished Aluminum
Drawing
C
C
C
C
C
D
D
These assemblies are also available with Gold Coated Reflector, Ellipsoidal Reflector or Custom Lead Length.
Telephone: 781-935-4442
Fax: 781-938-5867
sales@gilway.com
www.gilway.com
Engineering Catalog 169
