DIVISION OF DELTROL CORP.
100
100U/101U
SERIES RELAY
5 AND 10 AMP
GENERAL PURPOSE
FEATURES
s
Class F Coil Insulation System for 155擄C
Total Temperature
s
Coil Molded in DuPont Rynite
廬
for Environmental
Protection
s
Unique Armature Stop Maintains Adjustment
MODELS
100:
100RF:
100U:
101U:
101UP:
5 & 10 Amp with Solder Lug Terminals
With Diallyl Phthalate Panel For Switching RF
5 Amp Unit with UL and CSA Recognition
10 Amp Unit with UL and CSA Recognition
10 Amp Unit with Printed Circuit Terminals
CONTACT DATA
CONFIGURATION:
Thru 3PDT
MATERIALS:
5 AMP:
1/8" Diameter Moveable Fine Silver
3/16" Diameter Stationary Fine Silver
10 AMP:
3/16" Diameter Moveable Silver Cadmium Oxide
3/16" Diameter Stationary Fine Silver
Gold Flash is Standard on All Contacts
Gold Diffused Available on Special Order 鈥?Min. Qty. Req鈥檇.
COIL DATA
NOMINAL
VOLTAGE
6VAC
12VAC
24VAC
48VAC
120VAC
240VAC
6VAC
12VAC
24VAC
48VAC
120VAC
240VAC
6VDC
12VDC
24VDC
48VDC
110VDC
RESISTANCE
IN OHMS
鹵
10%
5.0
20
80
315
2025
8000
4.5
18
72
285
1850
7200
30
120
480
1850
10,000
NOMINAL
COIL
POWER
AC Coils
Single
Pole Units
2.0VA
CONTACT RATINGS
MOVEABLE
POLE
CONTACT SIZE CONFIGURATION
UL
RATINGS*
1/8 HP or 5 amp at
120VAC
1/4 HP or 5 amp at
277VAC
5 amp at 28VDC
10 amp or 1/3 HP
at 120VAC**
1/2 HP or 10 amp at
277VAC
10 amp at 28VDC
AC Coils
2&3
Pole Units
2.2VA
1/8" Diameter
thru 3PDT
DC Coils
1-3
Pole Units
Coil Voltages:
1.2W
3/16" Diameter
thru 3PDT
**UL/CSA
On 100U/101U Series Only
**3 Pole Devices Rated at 6-2/3 Amp When Switching
Greater Than 150VAC, Unless Polarity is the Same on
All Poles
UL RECOGNIZED FILE NO.:
E37066 (100U/101U Only)
CSA CERTIFIED FILE NO.:
LR20690 (100U/101U Only)
AC: Up to 277 Volts/60 Hz
DC: Up to 125 Volts
Coil Treatment:
Molded Rynite
廬
Std. Class F
Insulation Resistance:
100 Megohms Minimum
UL Insulation System File No.:
E74443
S155D 155擄C Total Temperature Std.
(Covers S105 Class A and S130D Class B Requirements)
OPERATE DATA
Pick Up (at 25擄C):
AC Volts 85% or Less of Nominal
DC Volts 75% or Less of Nominal
Operate Time:
Approx. 15 Milliseconds
Release Time:
Approx. 15 Milliseconds
EXPECTED LIFE
Electrical At Rated Load (Minimum)
100,000 Operations
Mechanical Life
10,000,000 Operations
ENVIRONMENTAL DATA
Operating Ambient:
AC: -45擄 to 70擄C
DC: -45擄 to 85擄C
Coil Temperature Rise:
(25擄C Ambient 鈥?Continuous Duty)
AC: 45擄C Approx. @ 60 Hz 鈥?Use at 50 Hz
will Cause Slight Increase in Coil Rise
DC: 25擄C Approx.
DIELECTRIC STRENGTH
800 VRMS, 60 Hz Between Contacts
1500 VRMS (Model 100), 2200 VRMS
(Model 100U/101U), 60 Hz Between Other Elements

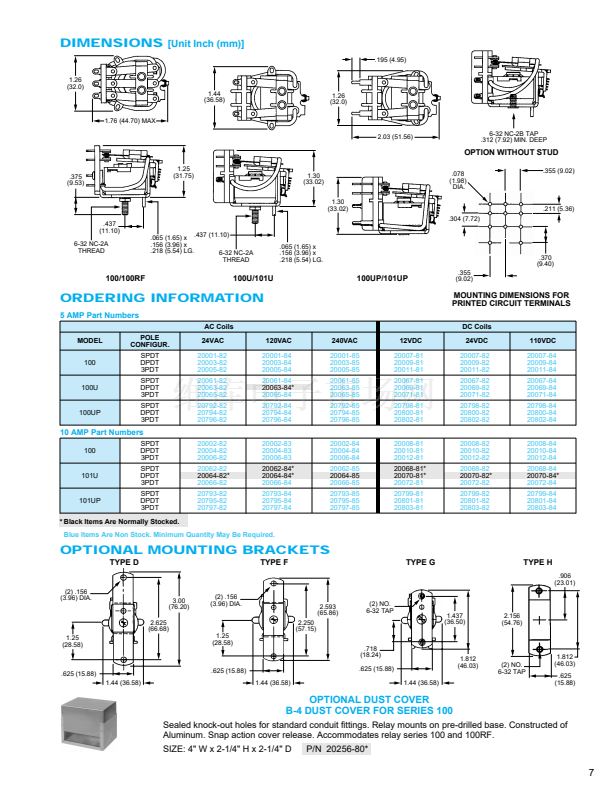

MECHANICAL DATA
Terminals:
100/100U/101U Pierced Solder Lugs .125" x .032"
100UP/101UP Printed Circuit Pins
Weight:
All Versions Approx. 2.0 oz. (57 g)
