Miniature Power Relay IF - Faston
V23077
PCB/plug-in relay for DC voltage,
neutral, monostable
Features
q
High-temperature relay with contact-side Faston
terminals
Switching capacity 4000 VA at 125 擄C ambient tempera-
ture
Nominal coil power 360 mW
Mechanical and electrical characteristics comply with the
鈥淩ules for electrical relays in power installations鈥?(VDE
0435/9.72)
Clearance/creepage distances
>
8 mm between coil and
contact
Tracking resistance of the plastics to PTI 250
Used for safe electrical insulation in the following appli-
cations
鈥?open and closed-loop control equipment for domestic
use (VDE 0631)
鈥?electrical equipment for domestic use
(EN 60 335-1/VDE 0700)
ECR3029-2
Approx. original size
q
q
q
q
q
q
Design
鈥?/div>
With 1 make contact
or
with 1 break contact
(changeover contact on request)

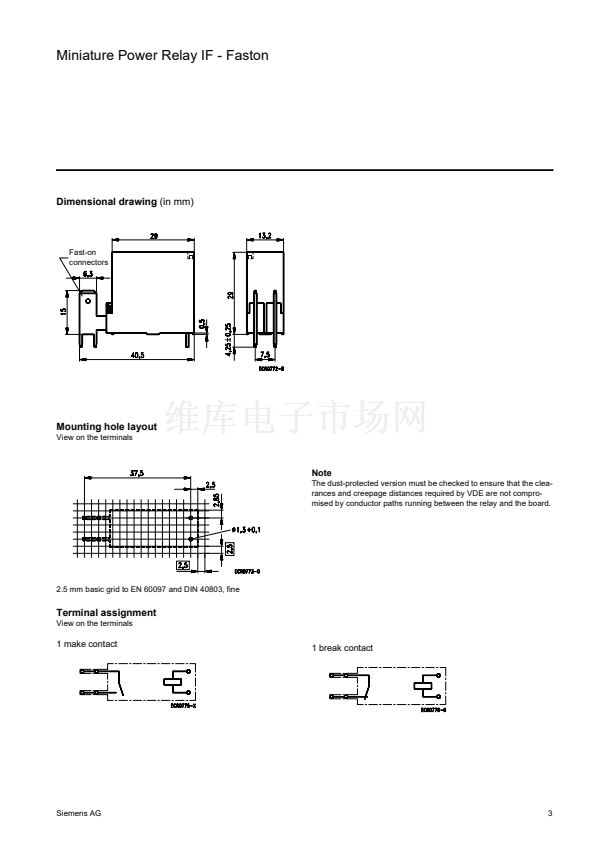

For printed circuit assembling
With PCB terminals (coil) and flat terminals (contacts) for
6.35 mm fast-on connectors
Dust-protected
鈥?/div>
鈥?/div>
Typical applications
q
q
q
q
q
鈥?/div>
Oven timers
Electric heaters
Microwave ovens
Air-conditioning equipment
Power supply equipment
SEV
CSA
UL
SEMKO
脰VE
BEAB
Approvals
VDE
VDE
Mark of conformity
91.1 11672.01
LR 89731-12
File E 48393
9330076
22905/E
C 0573
5081
BEAB
