0811-1X1T-27 Datasheet

  • 0811-1X1T-27

  • 1port.No LEDs.RJ45 10Base-T

  • 2頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

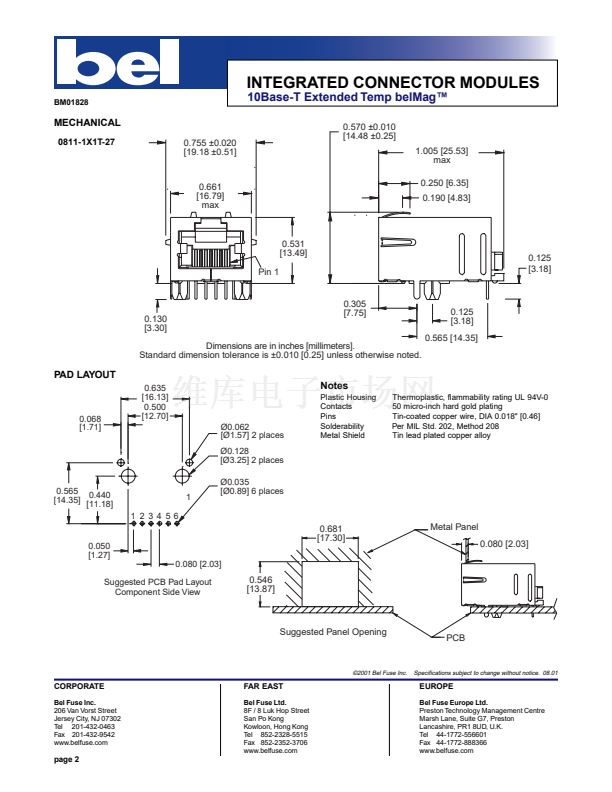

INTEGRATED CONNECTOR MODULES
10Base-T Extended Temp belMag鈩?/div>
BM01828
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Shielded connector with integrated 10Base-T magnetics
Compatible with a variety of 10Base-T transceiver ICs
鈥?/div>
Complies with IEEE 802.3 standards and all 10Base-T
Ethernet standards
Integrated design conserves valuable board space
Minimum interwinding breakdown voltage of 1500 Vrms
Adaptable, modular design provides higher reliability
鈥?/div>
Operating temperature -40擄 to +85擄 C
鈥?/div>
Storage temperature -40擄 to +85擄 C
鈥?/div>
Reduced pin count for improved crosstalk and optimum
PCB trace routing
ELECTRICAL SPECIFICATIONS AT 25擄 C
Common to Common
Mode Rejection
dB min
Insertion Loss
dB max
Part Number
1MHz to 10MHz
Return Loss
dB min
Crosstalk
dB min
OCL
碌H min
1MHz to 10MHz
10MHz to 30MHz
100kHz to 100MHz
TX
RX
0811-1X1T-27
-1.0
-18
-40
-40
45
230
SCHEMATIC
0811-1X1T-27
Pin
RJ-45
TCT 1
TD+ 2
TD- 3
1CT : 2.5
1 TX+
2 TX-
1CT : 1
Available Options
鈥?Various transformer turns ratios
RD+ 4
RD- 5
RCT 6
3 RX+
4
5
6 RX-
7
8
Shield
漏2001 Bel Fuse Inc.
Specifications subject to change without notice. 08.01
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
page 1
