0806-5400-04 Datasheet

  • 0806-5400-04

  • EuroDOCSIS 2.0 Diplexer Filter w/surge protection

  • 53.45KB

  • 2頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

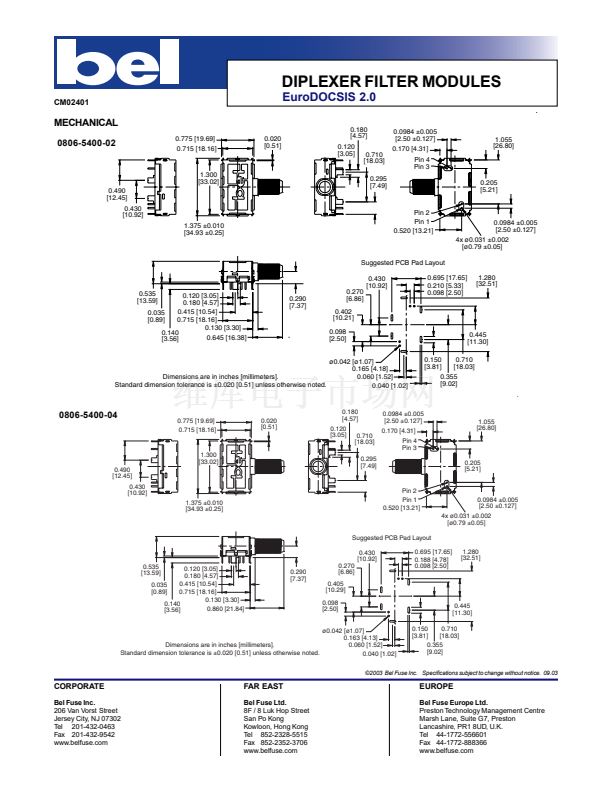

DIPLEXER FILTER MODULES
EuroDOCSIS 2.0
鈥?/div>
Optimized for use in cable modems, cable TV set-top
boxes and PCI card applications
Designed to meet European Data Over Cable Service
Interface Specification (EuroDOCSIS) 2.0
鈥?/div>
鈥?/div>
Surge protection per IEC 61000-4-5 Class 4
鈥?/div>
鈥?/div>
鈥?/div>
CM02401
Excellent insertion loss and return loss characteristics
Pre-tuned, shielded modules with integral coaxial
F-connector
Metal housing minimizes EMI for superior performance
ELECTRICAL SPECIFICATIONS at 25擄 C
Low Pass Filter
Passband Insertion Loss
Stopband Insertion Loss
Return Loss
5MHz - 67MHz
1.5dB max
88MHz - 126MHz
50dB min
126MHz - 860MHz
48dB min
5MHz - 67MHz
12dB min
High Pass Filter
Passband Insertion Loss
Stopband Insertion Loss
Return Loss
88MHz
1.8dB max
88MHz - 102MHz
1.5dB max
103MHz - 860MHz
1.0dB max
5MHz - 63MHz
50dB min
63MHz - 65MHz
48dB min
SCHEMATIC
0806-5400-02
0806-5400-04
Downstream
(High-Pass Filter)
Pin 1
Downstream
Output
F-Connector
Input
Surge
Protection*
Pin 2 / Pin 4
Upstream
(Low-Pass Filter)
*0806-5400-04 provides surge
protection circuit.
Pin 3
Upstream
Output
Pin 2 / Pin 4
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 09.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
