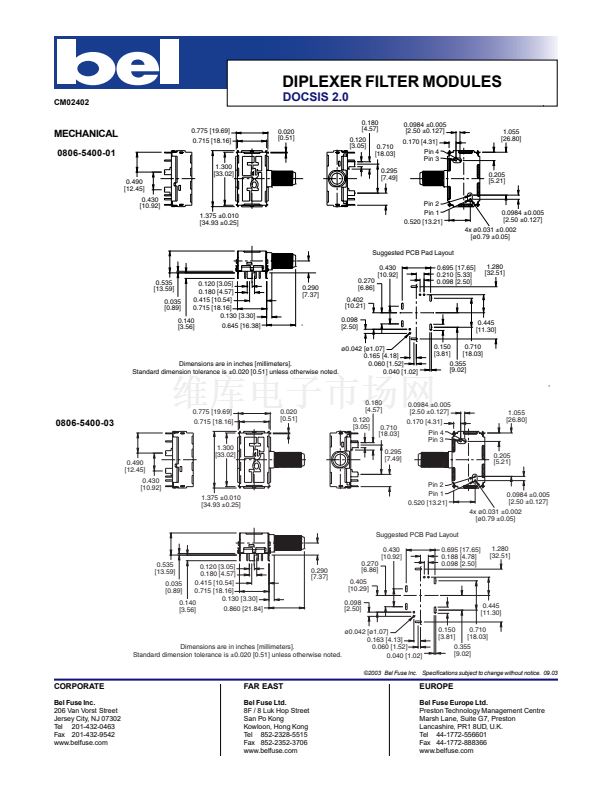

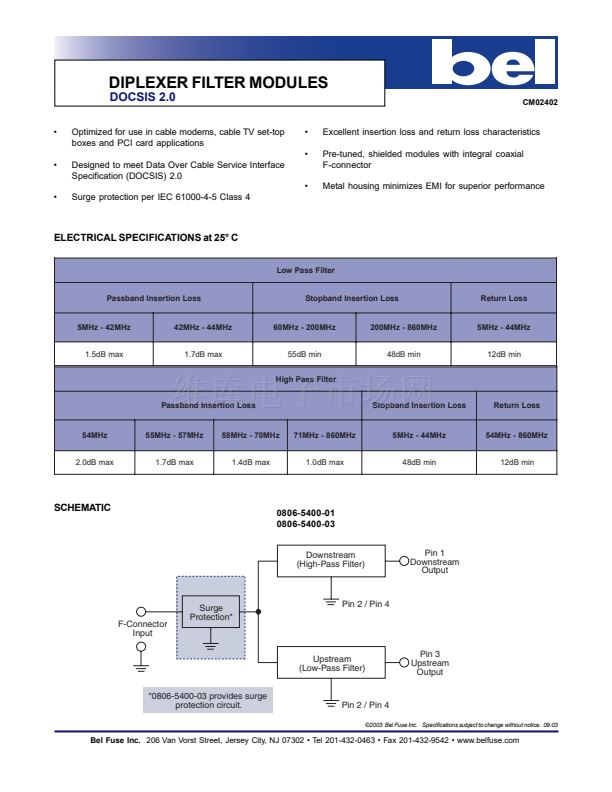

CM02402
Excellent insertion loss and return loss characteristics
Pre-tuned, shielded modules with integral coaxial
F-connector
Metal housing minimizes EMI for superior performance
ELECTRICAL SPECIFICATIONS at 25擄 C
Low Pass Filter
Passband Insertion Loss
Stopband Insertion Loss
Return Loss
5MHz - 42MHz
1.5dB max
42MHz - 44MHz
1.7dB max
60MHz - 200MHz
55dB min
200MHz - 860MHz
48dB min
5MHz - 44MHz
12dB min
High Pass Filter
Passband Insertion Loss
Stopband Insertion Loss
Return Loss
54MHz
2.0dB max
55MHz - 57MHz
1.7dB max
58MHz - 70MHz
1.4dB max
71MHz - 860MHz
1.0dB max
5MHz - 44MHz
48dB min
54MHz - 860MHz
12dB min
SCHEMATIC
0806-5400-01
0806-5400-03
Pin 1
Downstream
Output
Downstream
(High-Pass Filter)
F-Connector
Input
Surge
Protection*
Pin 2 / Pin 4
Upstream
(Low-Pass Filter)
*0806-5400-03 provides surge
protection circuit.
Pin 3
Upstream
Output
Pin 2 / Pin 4
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 09.03
