H
T-1
3
/
4
(5 mm) Right Angle Mount
Housing
Technical Data
HLMP-5029
Option 010
Option 100
Features
鈥?Fits Any HP High Dome
T-1
3
/
4
LED Lamp
鈥?Snap-In Fit Makes Mounting
Simple
鈥?High Contrast Black Plastic

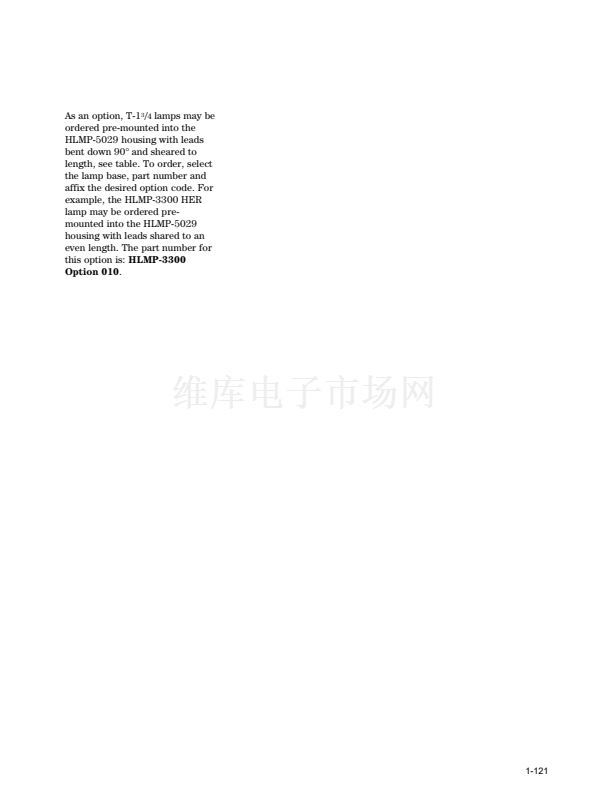

鈥?May be Ordered with
Mounted T-1
3
/
4
Lamp as an
Option
Description
The HLMP-5029 is a black plastic
right angle housing which mates
with Hewlett-Packard high dome
T-1
3
/
4
lamps. The leads should be
prebent 90擄 as shown prior to
snapping into the right angle
housing.
The housing material is high
temperature nylon capable of
withstanding temperatures up
to +150擄C.
Physical Dimensions
OPTION NO.
#010
#100
CATHODE LEAD
LENGTH
4.70 (0.185)
3.68 (0.145)
20.32 (0.800)
MIN.
ANODE LEAD
LENGTH
4.70 (0.185)
3.68 (0.145)
SHEARED
EVEN LEADS
UNSHEARED
1.27 (0.050)
NOM. LONGER UNEVEN LEADS
THAN CATHODE
NOTES: 1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. LEAD WIDTH MAY BE 0.45 (0.018) OR 0.64 (0.025)
SQUARE NOMINAL DEPENDING UPON PRODUCT TYPE.
3. OPTION 100 IS AVAILABLE FOR LONGER LEADS.
9.27 (0.365)
8.76 (0.345)
6.32 (0.249)
6.09 (0.240)
5.06 (0.200)
4.57 (0.180)
3.10 (0.122)
REF.
4.70 (0.185)
3.94 (0.155)
6.37 (0.251)
6.09 (0.240)
NOTE 2
DESIGNATES CATHODE
90 擄
SEE TABLE
2.54 (0.100)
REF.
PATENT PENDING
5.33 (0.210)
REF.
1-120
5964-3814E
