2.40
.15
2.100
FULL R
+.010
.700 -.015
.125 鹵 .010
.005
FULL R
SEE NOTE 4
.078
TYP
3.600
.156
TYP
1.800
6 FINS
EQ SP
@1.47 2 PL
4.60
(.330)
.015 R
MAX TYP
.330 TYP
.50
.34 TYP
.06 TYP
APPROVALS
DRAWN:
DATE
6/90
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
V I COR

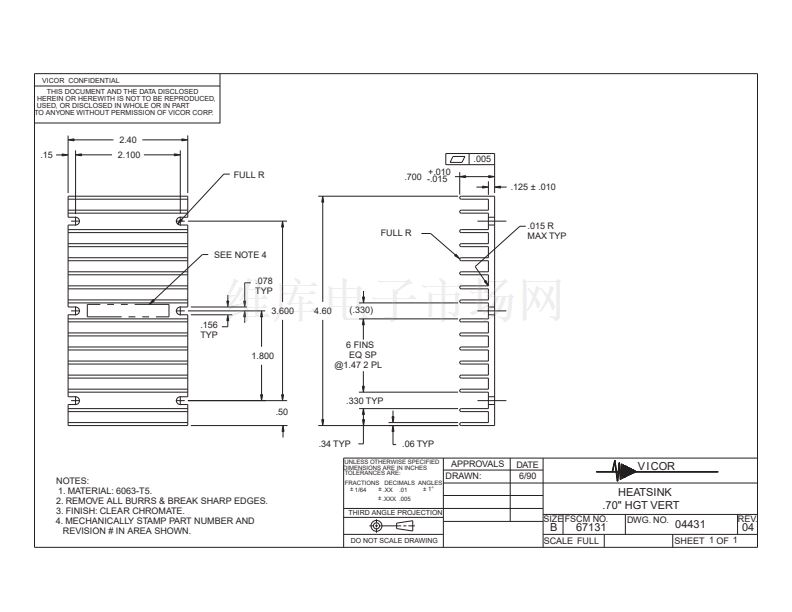

HEATSINK
.70" HGT VERT
SIZE FSCM NO.
NOTES:
1. MATERIAL: 6063-T5.
2. REMOVE ALL BURRS & BREAK SHARP EDGES.
3. FINISH: CLEAR CHROMATE.
4. MECHANICALLY STAMP PART NUMBER AND
REVISION # IN AREA SHOWN.
FRACTIONS DECIMALS ANGLES
鹵 1擄
鹵 1/64
鹵 .XX .01
鹵 .XXX .005
THIRD ANGLE PROJECTION
B
67131
DWG. NO.
04431
REV.
04
DO NOT SCALE DRAWING
SCALE FULL
SHEET 1 OF 1
