Multi SD鈥擲peed control for DC fans
New Fan Speed Control and
Temperature Alarm
Download the
Installation/Operation Manual
at our website:
hes
in Inc
sions
m
Dime
www.controlres.com/new_products.htm
SmartFan Multi SD
is a new generation
fan speed control and temperature alarm
designed for DC fans and blowers. By controlling
fan speed, Multi SD can regulate temperature,
reduce acoustical noise and improve reliability.
Multi SD offers features that were previously
only available on custom products. The Multi SD
includes diode ORing and fusing of dual power
feeds with a wide voltage range, jumper selectable
12, 24 or 48 VDC operation, multiple sensor inputs,
fan current limiting and a full speed over-ride input.
SmartFan products are used extensively in a
wide range of applications including file servers,
storage subsystems, telecommunications, ATE
and medical equipment.

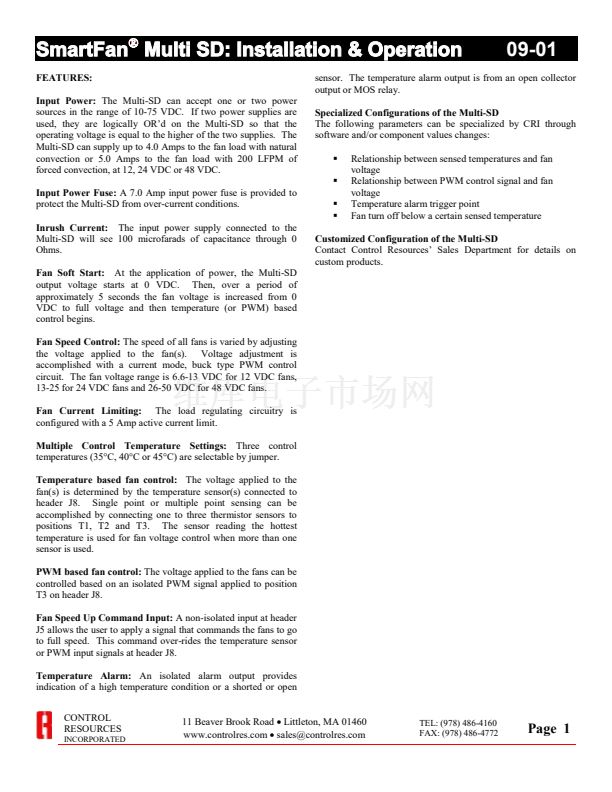

FEATURES
鈥?/div>
Accepts and diode ORs dual power feeds in the
range from 10 to 75 VDC
鈥?/div>
Maximum fan current is 4.0 Amps (still air) and
5.0 Amps (200 ft/min air stream) at 55擄C
鈥?/div>
Soft start and current limiting at start up
鈥?/div>
12, 24 or 48 VDC operation is selectable
by jumper
鈥?/div>

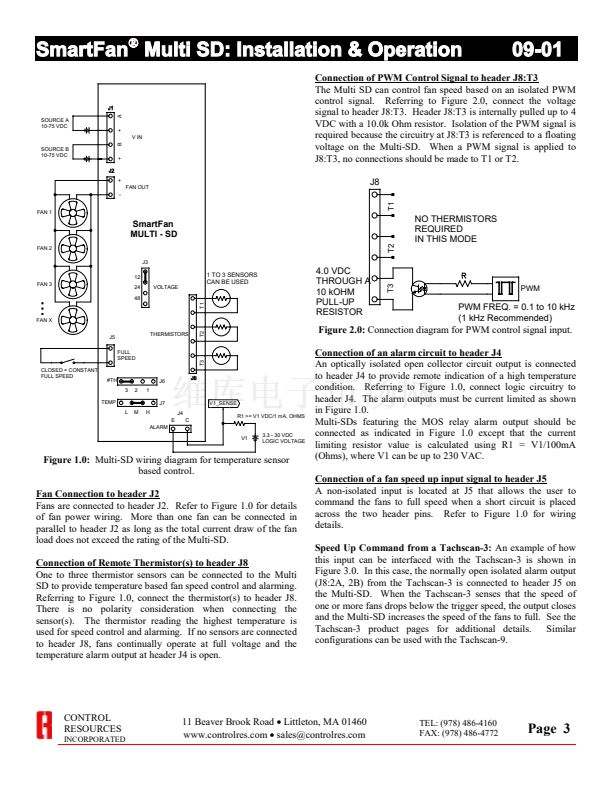

Accepts temperature (thermistor) inputs from up
to three OR鈥檇 sensors and provides proportional
speed control to the fans.
鈥?/div>
Jumper selectable Control Temperatures of 35擄,
40擄, or 45擄C
鈥?/div>
A temperature alarm is triggered if sensor
temperature reaches 10擄C above Control
Temperature or if cooling system power is lost
鈥?/div>

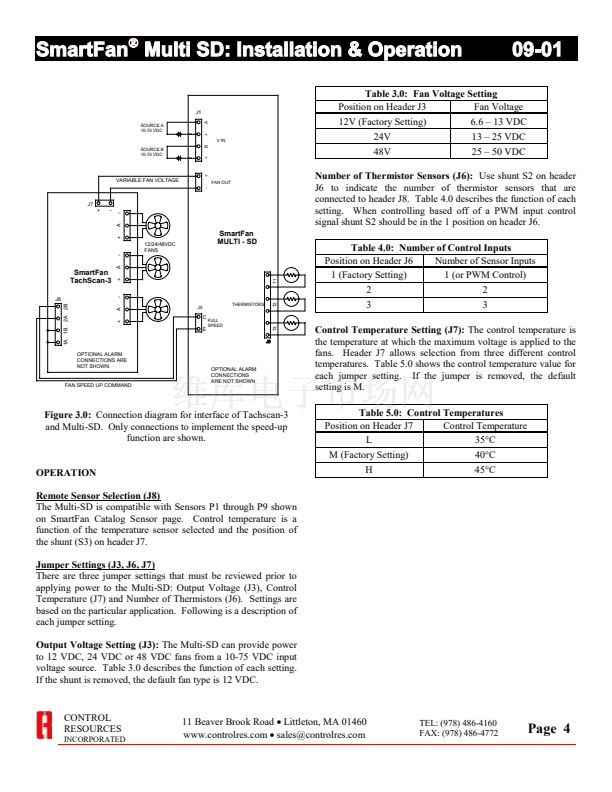

Compatible with SmartFan TachScan-3 and
TachScan-9 fan speed alarms
鈥?/div>
Small size of 1.5" X 5.0" permits mounting in
small spaces with in fan trays, etc.
鈥?/div>
Agency approvals (CUL) pending
SPECIFICATIONS
PART NO.
042D440
042D440R
H118
SUPPLY
VOLTAGE RANGE
10 to 75 VDC
Hardware Pack
1
MAXIMUM WATTS TO FANS
1
200 FT/MIN
240 Watts/5.0 Amps
STILL AIR
192 Watts/4.0 Amps
ISOLATED
TEMPERATURE ALARM
SINKING CURRENT
1 mA
100 mA
Air temperature of 55
擄
C or less.
CONTROL
RESOURCES
INCORPORATED
E-mail: sales@controlres.com
s
Web: www.controlres.com
09-01
U.S. Patents 4,659,290, 4,722,699 and 5,364,026
