AMD

廬

29K

鈩?/div>

Family

Technical

Bulletin

EPD Systems Engineering

Arbiter Solution for Shared-Bus Systems Using the

Am29030

鈩?/div>

or Am29035

鈩?/div>

Microprocessor

September 2, 1993

Purpose

The Revision D Am29030 and Am29035

鈥撯€撯€?/div>

microprocessors inappropriately assert the

REQ

鈥撯€撯€撯€?/div>

signal after

BGRT

is deasserted. In doing so, they

create the potential for a bus collision in

shared-bus

systems.

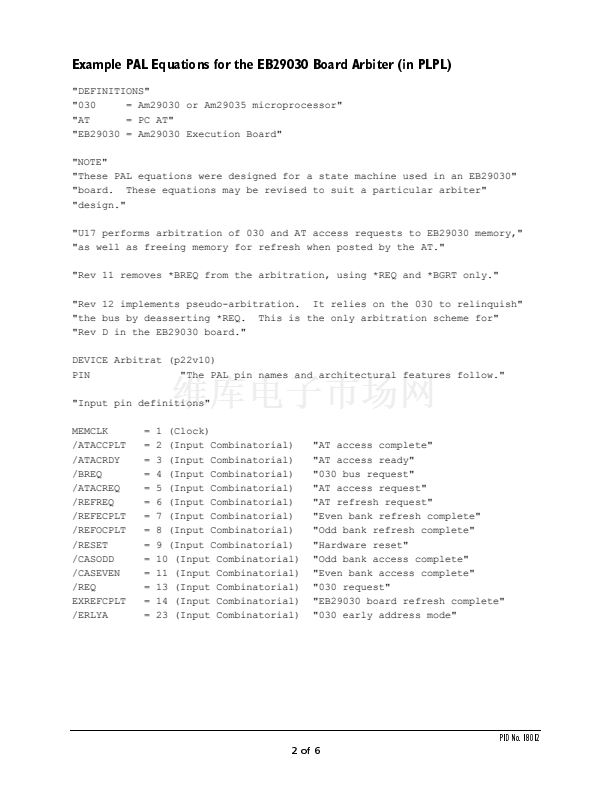

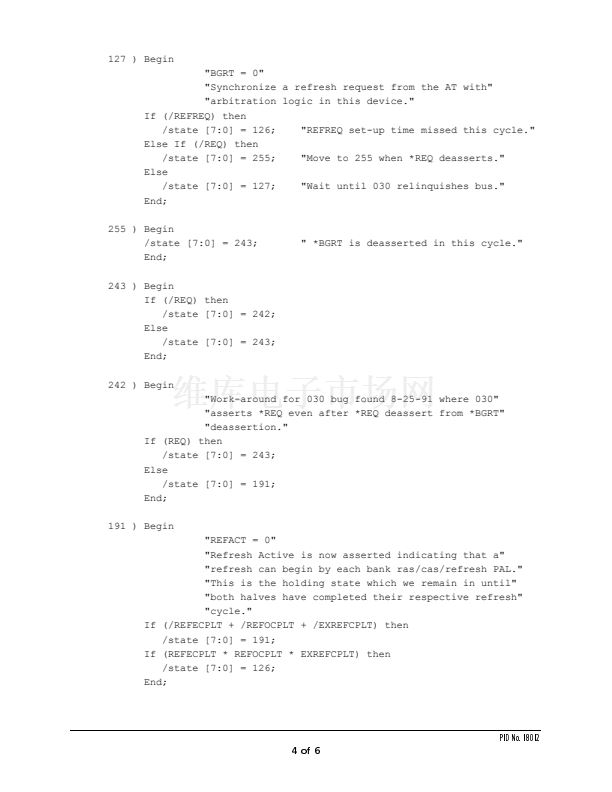

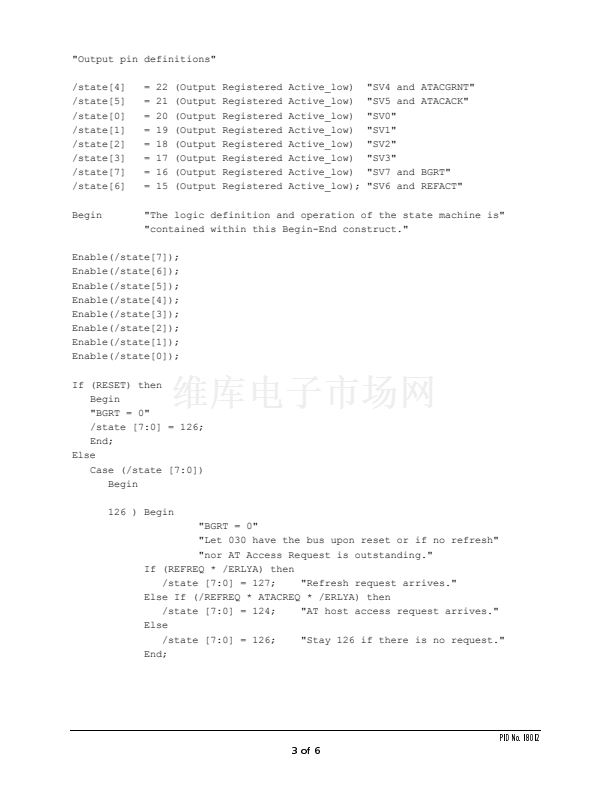

This bulletin includes the PAL equations for

a state machine used in an EB29030

鈩?/div>

board to

prevent bus collisions. These equations may be

revised to suit a particular arbiter design.

Affected Parts

Assistance is available in the U.S. from 9:00

. to

6:00

. central time, Monday through Friday

(except major holidays). In Europe assistance is

available during U.K. business hours. Contact us at

one of the following numbers:

To reach the U.S.

From

U.S.

U.K.

Japan

Any other location

婁

Call

1-800-2929-AMD

0-800-89-1455

0031-11-1163

+1-512-462-4118

婁

The information in this bulletin affects the following

parts:

Toll applies.

Device

Am29030 microprocessor

Am29035 microprocessor

If You Need Assistance

Revision

B, D

To reach the U.K.

From

U.K.

France

Germany

Italy

Any other location

婁

Call

(0)256-811101

0590-8621

0130-813875

1678-77224

+44-(0)256-811101

婁

Product support for the 29K Family processors is

available from our Embedded Processor Division

(EPD) Technical Support Hotlines located in the

U.S. and in the U.K.

Toll applies.

PID No. 18012

1 of 6
