Optional isolated MOS relay alarm output for high
current or high voltage applications
0.156 D(2)
(3.96)
.560 MAX
(14.2)

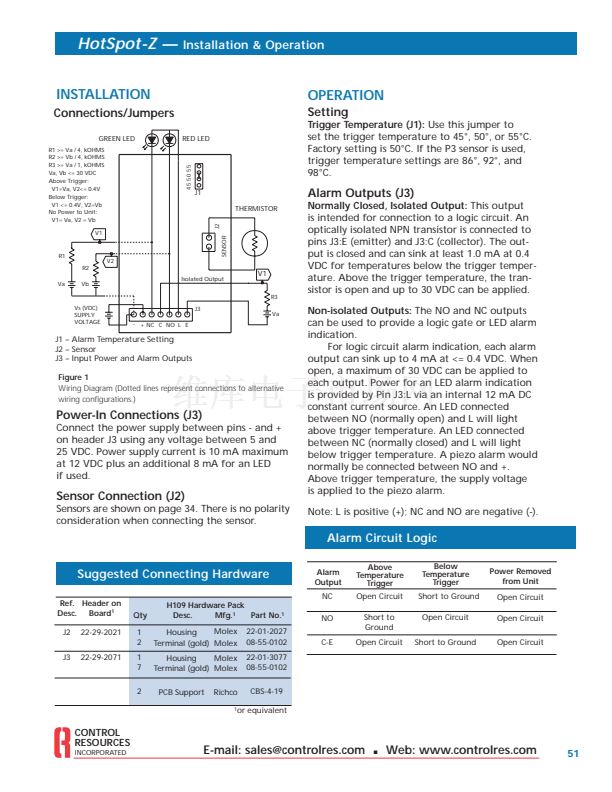

Normally Closed (E,C) Alarm Output:
Optically
isolated to drive logic circuits. Closed and can
sink at least 1.0 mA at 0.4 volts below trigger
temperature. Open above trigger temperature
and will accept up to 30 VDC.
Normally Closed (NC) Alarm Output:
Closed
below trigger temperature and will sink 4 mA at
0.4 volts or less. Open above trigger temperature
and will accept up to 30 VDC. Applies nominal 8
mA to an LED connected from NC to L.
Normally Open (NO) Alarm Output:
Open below
trigger temperature and will accept up to 30
VDC. Closed above trigger temperature and will
sink 4 mA at 0.4 volts or less. Applies nominal 8
mA to an LED connected from NO to L. Applies
nominal power supply voltage to a piezo alarm
connected from NO to +.
SPECIFICATIONS
Part Number
015Z150
015Z150S
H109
Sensor Type
Header on board for remote sensor
Sensor soldered to board
Hardware Pack
Note: Maximum operating temperature is 65擄C
CONTROL
RESOURCES
50
INCORPORATED
.270
(6.9)
E-mail: sales@controlres.com
s
Web: www.controlres.com
