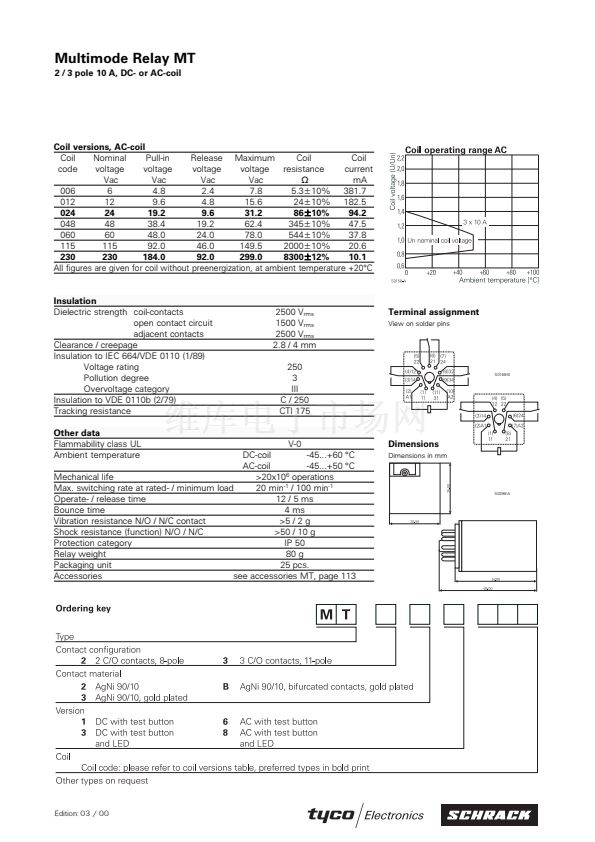

Multimode Relay MT

2 / 3 pole 10 A, DC- or AC-coil

2 C/O or 3 C/O contacts

Cadmium-free contacts

DC and AC coils

Mechanical indicator as standard

Electrical indicator

New test system with front operated finger protected

push-to-test button and integral locking test tab

路

White write on panel

Applications

Mechanical engineering, plant control

路

路

路

路

路

路

F0161-A

VUCs

Technical data of approved types on request

Contact data

Configuration

2 C/O contacts or 3 C/O contacts

Type of contact

single cont.

bifurcated cont.

Rated current

10 A

4A

Rated voltage / max.breaking voltage

250 Vac / 440 Vac

Rated breaking capacity

2500 VA

500 VA

Make current (max. 4 s at duty cycle 10%)

20 A

8A

Contact material

AgNi 90/10

Contact life

Type

Load

MT321 10 A, 250 Vac, C/O contact

Operations

1x10

5

Standard

VDE 0435

DC coil

AC coil

Nominal coil power DC coil

AC coil

Operate category

Coil data

Nominal voltage

6...220 Vdc

6...230 Vac

typ. 1.2 W

typ. 2.3 VA

1/a

Coil versions, DC-coil

Coil code

Nominal

Pull-in

Release

Coil

Coil

*

standard

PD

voltage

voltage

voltage

resistance

current

Vdc

Vdc

Vdc

c

mA

006

0A6

6

4.5

0.6

32+10% 187.5

012

0B2

12

9.0

1.2

110+10% 109.1

+

024

0C4

24

18.0

2.4

475+10%

50.5

048

0E8

48

36.0

4.8

2000+10%

24.0

060

0G0

60

45.0

6.0

2850+10%

21.1

110

1B0

110

82.5

11.5

10000+12%

11.0

220

2C0

220

165.0

22.0

40000+15%

5.5

All figures are given for coil without preenergization, at ambient temperature +20擄C

*

Protection diode PD; standard polarity: 2-pole relays: +2 / -7,

3-pole relays: +2 / -10

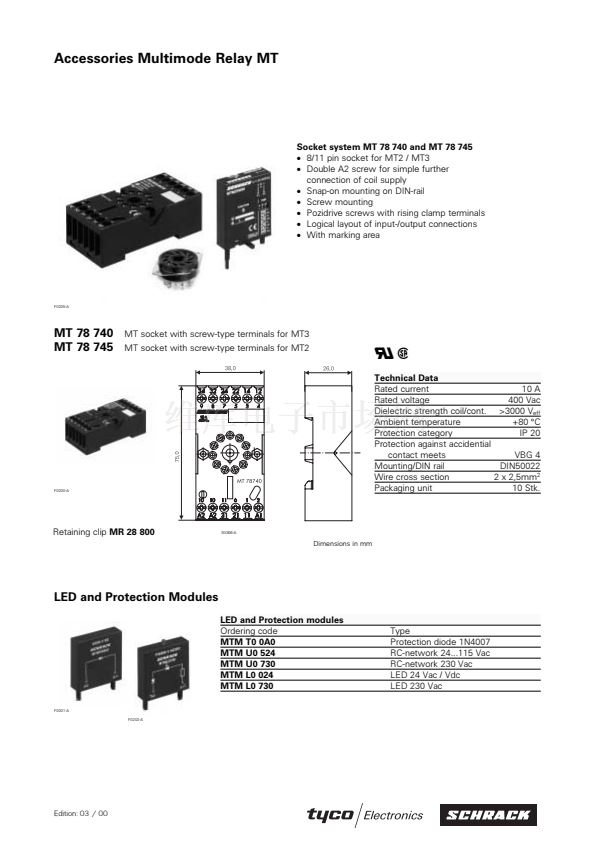

Edition: 03 / 00
