ADI的高雙軸數字傾斜傳感器ADIS16209非常適合各種需要傾斜測量的應用,包括測量設備,工廠機器制造工具,衛星天線穩定系統,運動安全監視以及汽車輪胎平衡等.本文介紹了ADIS16209的主要性能,方框圖和應用,以及ADIS1620x/PCB評估板的電路圖.

　　High-Accuracy, Dual-Axis Digital Inclinometer and Accelerometer ADIS16209
The ADIS16209 programmable, dual-mode inclinometer sensor is suited to a perse set of industrial applications that require inclination changes to be measured, including surveying equipment, factory machine tools, satellite antenna stabilization systems, motion safety monitors and automotive wheel alignment. Functionally equivalent inclinometer solutions are typically 100 times larger than the ADIS16209.

    The ADIS16209 is a high-accuracy, digital inclinometer, that accommodates both single axis (±180°) and dual-axis (±30°) operation. The standard supply voltage (+3.3 V) and SPI  serial interface enable simple integration into most industrial system designs. A simple internal register structure handles all output data and configuration features. This includes access to the following output data:

　　Calibrated acceleration
　　Accurate incline angles
　　Power supply
　　Internal temperature
　　Auxiliary analog and digital input signals
　　Diagnostic error flags
　　Programmable alarm conditions Configurable operating parameters include
　　Sample rate
　　Power management
　　Digital filtering
　　Auxiliary analog and digital output
　　Offset/null adjustment
　　Self-test, for sensor’s mechanical structure
　　The ADIS16209 is available in a 9.2 mm × 9.2 mm × 3.9mm LGA package that operates 　　　　　　　　　　　   over a temperature range of −40°C to +125°C. It is capable of being attached using standard RoHScompliant solder reflow processes.

   主要特性:
   Dual-mode inclinometer system
   Dual–axis, inclinometer configuration, ±30°
   Single-axis, vertical operation, ±180°
   High accuracy, 0.1°
   14-bit digital inclination data, 0.025° resolution
   14-bit digital acceleration data, 0.244 mg resolution
   ±1.7 g accelerometer measurement range
   12-bit digital temperature sensor output
   Digitally controlled sensitivity and bias calibration
   Digitally controlled sample rate
   Digitally controlled frequency response
　 Dual alarm settings with rate/threshold limits
   Auxiliary digital I/O
   Digitally activated self test
   Digitally activated low power mode
   SPI-compatible serial interfaceAuxiliary 12-bit ADC input and DAC output
   Single-supply operation: +3.0 V to +3.6 V
   3500 g powered shock survivability
   應用:

   Platform control, stabilization, and alignment
   Tilt sensing, inclinometers, leveling
   Motion/position measurement
   Monitor/alarm devices (security, medical, safety)
   Navigation


    詳情請見:
       https://www.analog.com/UploadedFiles/Data_Sheets/ADIS16209.pdf

    ADIS1620x/PCB評估板
    The ADIS1620x/PCBs are simple evaluation boards that provide convenient access to the ADIS1620x family of products, using a standard 2 mm, 2 × 6, connector interface. These
connectors can be accessed using a variety of cable options, including standard 1 mm ribbon cables. The ADIS1620x/PCB is designed to be evaluated in an existing digital platform (such as MCU, DSP, FPGA, PLD) or as part of the ADISEVAL system.

Four mounting holes (sized for 2-56 or 2 mm screws) have been provided to secure the board during evaluation.

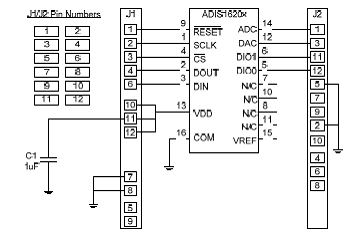

圖2. ADIS1620x/PCB 電路圖
