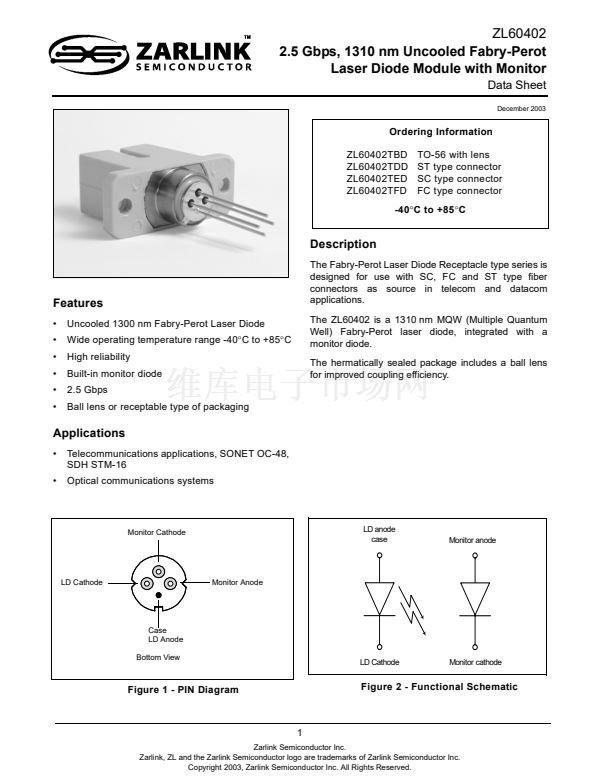

ZL60402
2.5 Gbps, 1310 nm Uncooled Fabry-Perot
Laser Diode Module with Monitor
Data Sheet
December 2003
Ordering Information
ZL60402TBD
ZL60402TDD
ZL60402TED
ZL60402TFD

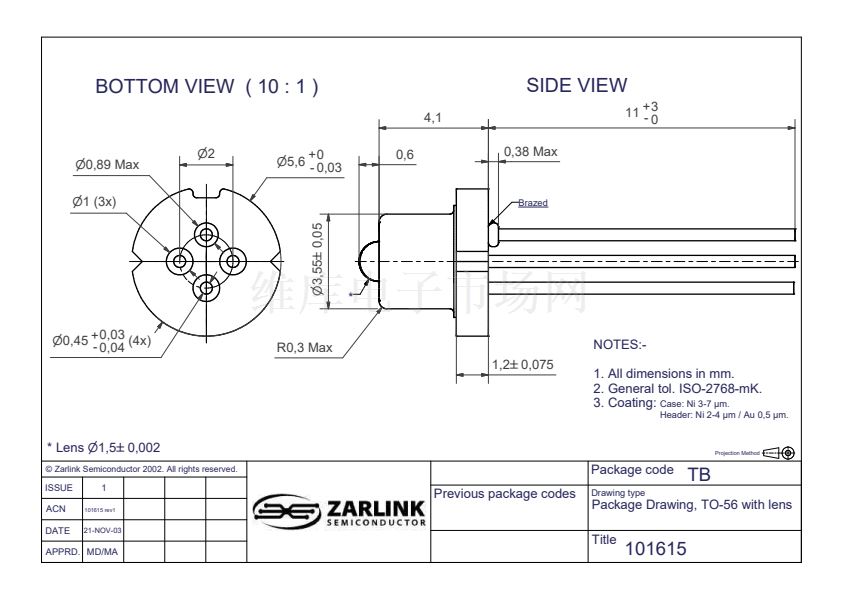

TO-56 with lens

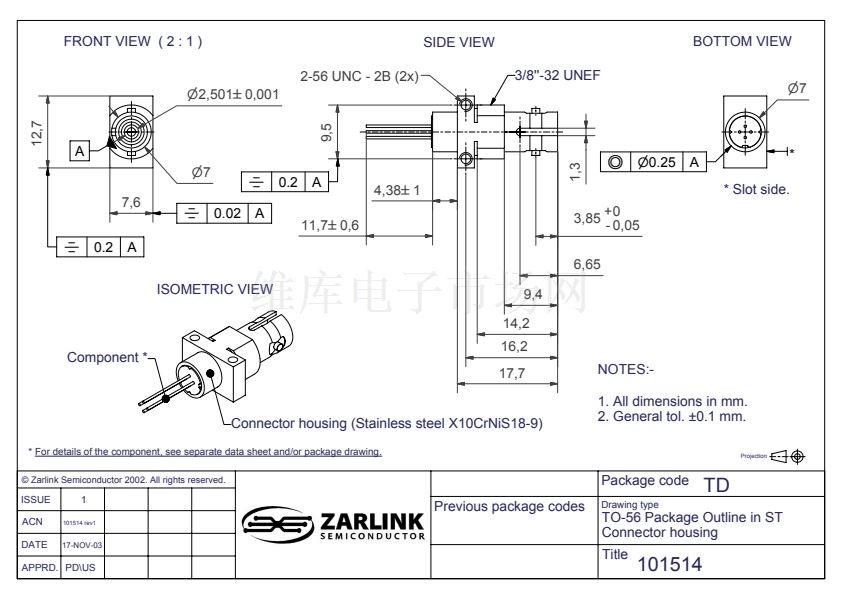

ST type connector

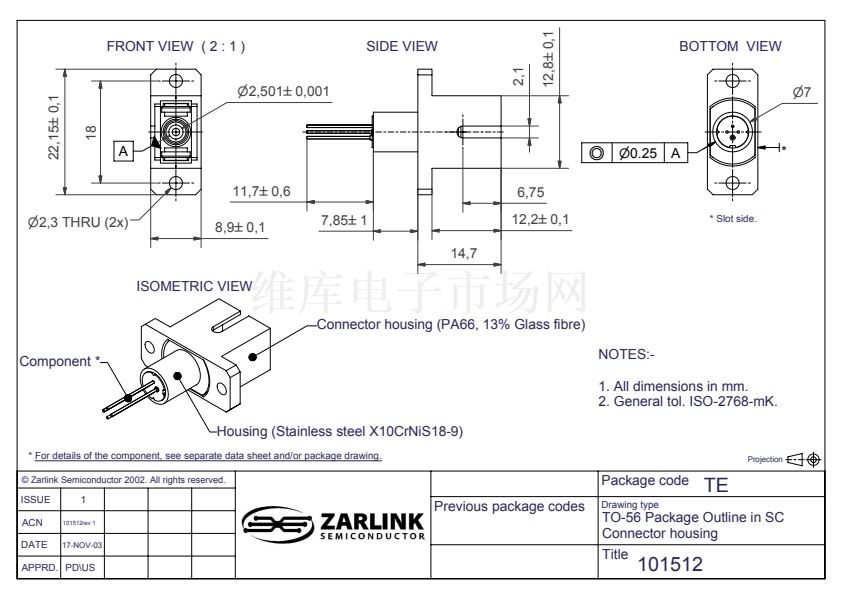

SC type connector

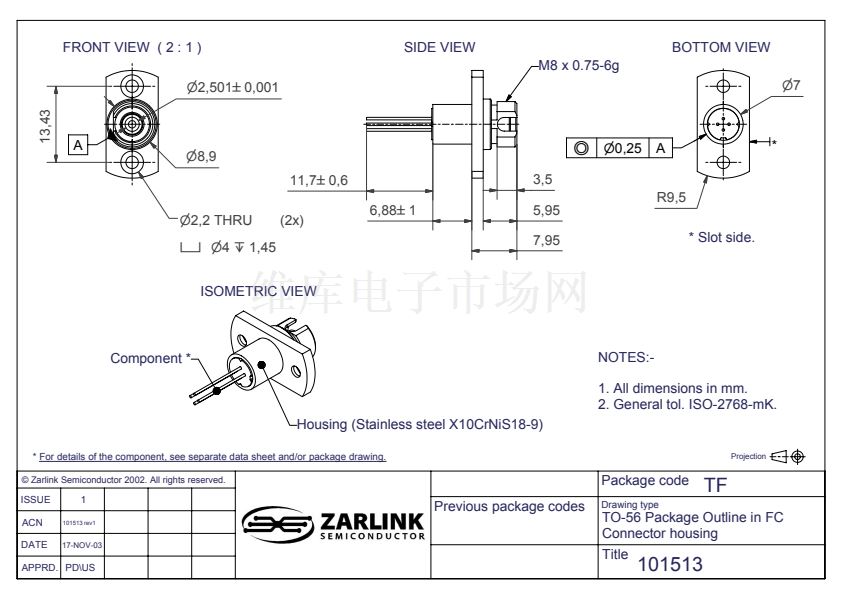

FC type connector
-40擄C to +85擄C
Description
The Fabry-Perot Laser Diode Receptacle type series is
designed for use with SC, FC and ST type fiber
connectors as source in telecom and datacom
applications.
The ZL60402 is a 1310 nm MQW (Multiple Quantum
Well) Fabry-Perot laser diode, integrated with a
monitor diode.
The hermatically sealed package includes a ball lens
for improved coupling efficiency.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Uncooled 1300 nm Fabry-Perot Laser Diode
Wide operating temperature range -40擄C to +85擄C
High reliability
Built-in monitor diode
2.5 Gbps
Ball lens or receptable type of packaging
Applications
鈥?/div>
鈥?/div>
Telecommunications applications, SONET OC-48,
SDH STM-16
Optical communications systems
Monitor Cathode
LD anode
case
Monitor anode
LD Cathode
Monitor Anode
Case
LD Anode
Bottom View
LD Cathode
Monitor cathode
Figure 1 - PIN Diagram
Figure 2 - Functional Schematic

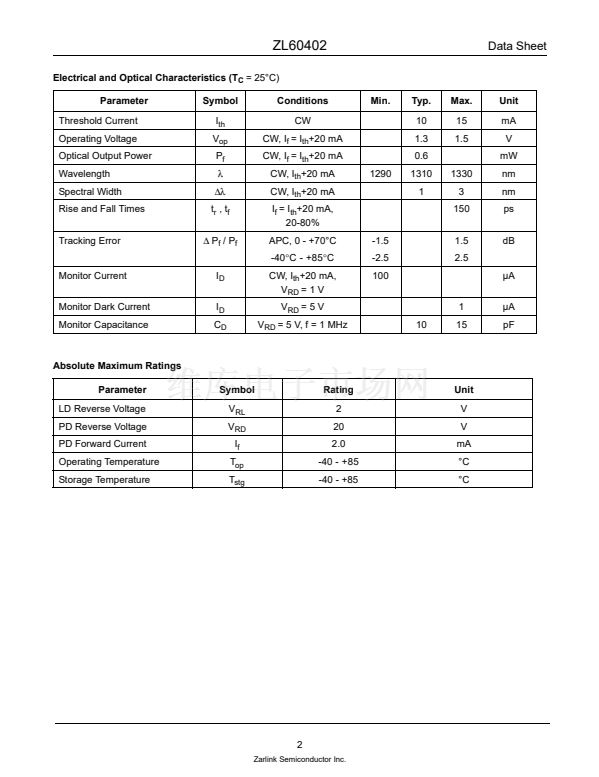

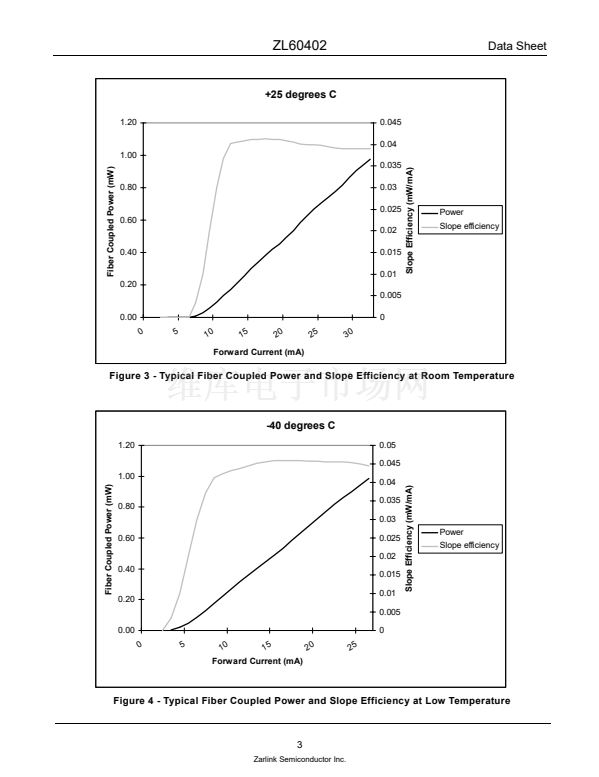

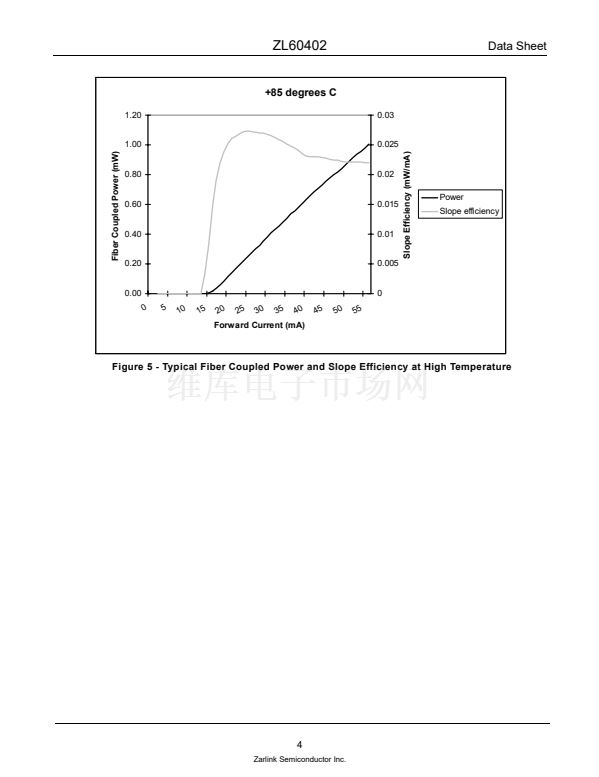

1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2003, Zarlink Semiconductor Inc. All Rights Reserved.
