ZL50019

Enhanced 2 K Digital Switch with

Stratum 4E DPLL

Data Sheet

Features

鈥?/div>

2048 channel x 2048 channel non-blocking digital

Time Division Multiplex (TDM) switch at 8.192

and 16.384 Mbps or using a combination of ports

running at 2.048, 4.096, 8.192 and 16.384 Mbps

32 serial TDM input, 32 serial TDM output

streams

Integrated Digital Phase-Locked Loop (DPLL)

exceeds Telcordia GR-1244-CORE Stratum 4E

specifications

Output clocks have less than 1 ns of jitter (except

for the 1.544 MHz output)

DPLL provides holdover, freerun and jitter

attenuation features with four independent

reference source inputs

Exceptional input clock cycle to cycle variation

tolerance (20 ns for all rates)

鈥?/div>

Ordering Information

ZL50019GAC 256-ball PBGA

ZL50019QCC 256-lead LQFP

-40擄C to +85擄C

Output streams can be configured as bi-

directional for connection to backplanes

Per-stream input and output data rate conversion

selection at 2.048, 4.096, 8.192 or 16.384 Mbps.

Input and output data rates can differ

Per-stream high impedance control outputs

(STOHZ) for 16 output streams

Per-stream input bit delay with flexible sampling

point selection

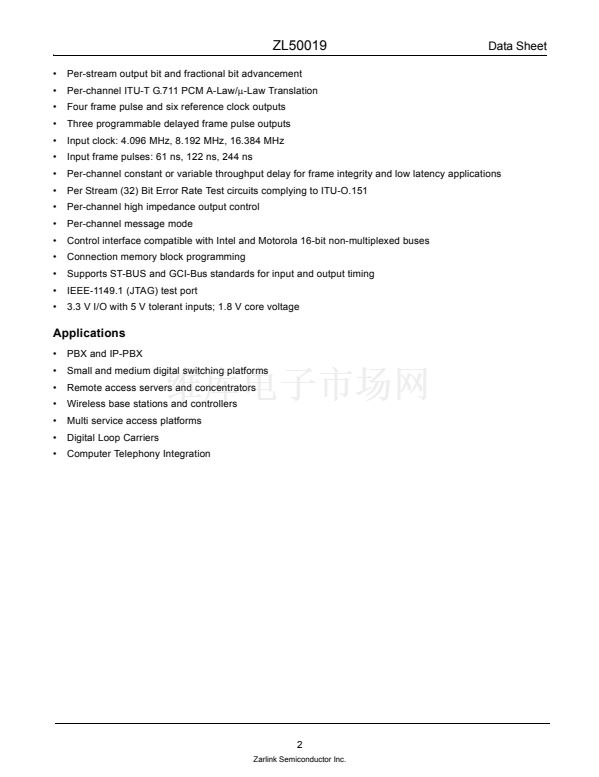

October 2004

鈥?/div>

DD_CORE

DD_IO

DD_COREA

DD_IOA

RESET

ODE

STi[31:0]

FPi

CKi

MODE_4M0

MODE_4M1

REF0

REF1

REF2

REF3

REF_FAIL0

REF_FAIL1

REF_FAIL2

REF_FAIL3

S/P Converter

Data Memory

P/S Converter

STio[31:0]

Input Timing

Connection Memory

Output HiZ

Control

STOHZ[15:0]

DPLL

Output Timing

FPo[3:0]

CKo[5:0]

FPo_OFF[2:0]

OSC_EN

OSC

Internal Registers &

Microprocessor Interface

Test Port

TDi

OSCo

DS_RD

R/W_WR

Figure 1 - ZL50019 Functional Block Diagram

Zarlink Semiconductor US Patent No. 5,602,884, UK Patent No. 0772912,

France Brevete S.G.D.G. 0772912; Germany DBP No. 69502724.7-08

Zarlink Semiconductor Inc.

Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.

MOT_INTEL

DTA_RDY

D[15:0]

A[13:0]

OSCi

TRST

TMS

TCK

TDo

IRQ
