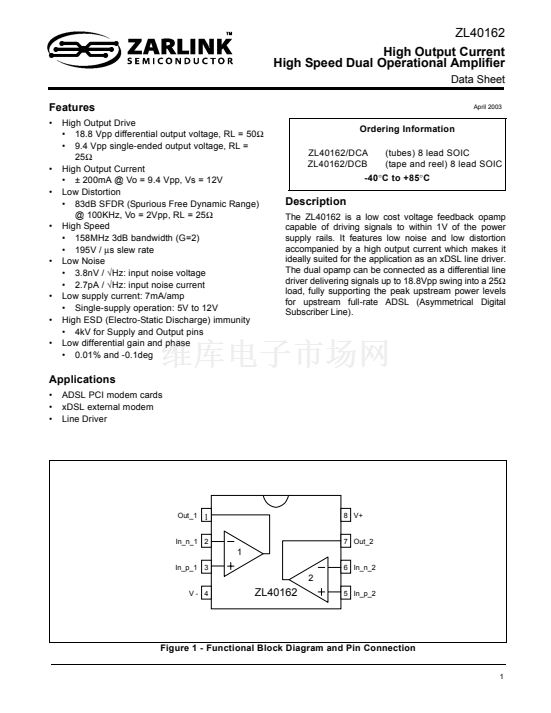

ZL40162

High Output Current

High Speed Dual Operational Amplifier

Data Sheet

Features

鈥?/div>

High Output Drive

鈥?18.8 Vpp differential output voltage, RL = 50鈩?/div>

鈥?9.4 Vpp single-ended output voltage, RL =

25鈩?/div>

High Output Current

鈥?鹵 200mA @ Vo = 9.4 Vpp, Vs = 12V

Low Distortion

鈥?83dB SFDR (Spurious Free Dynamic Range)

@ 100KHz, Vo = 2Vpp, RL = 25鈩?/div>

High Speed

鈥?158MHz 3dB bandwidth (G=2)

鈥?195V /

碌s

slew rate

Low Noise

鈥?3.8nV /

鈭欻z:

input noise voltage

鈥?2.7pA /

鈭欻z:

input noise current

Low supply current: 7mA/amp

鈥?Single-supply operation: 5V to 12V

High ESD (Electro-Static Discharge) immunity

鈥?4kV for Supply and Output pins

Low differential gain and phase

鈥?0.01% and -0.1deg

Ordering Information

ZL40162/DCA

ZL40162/DCB

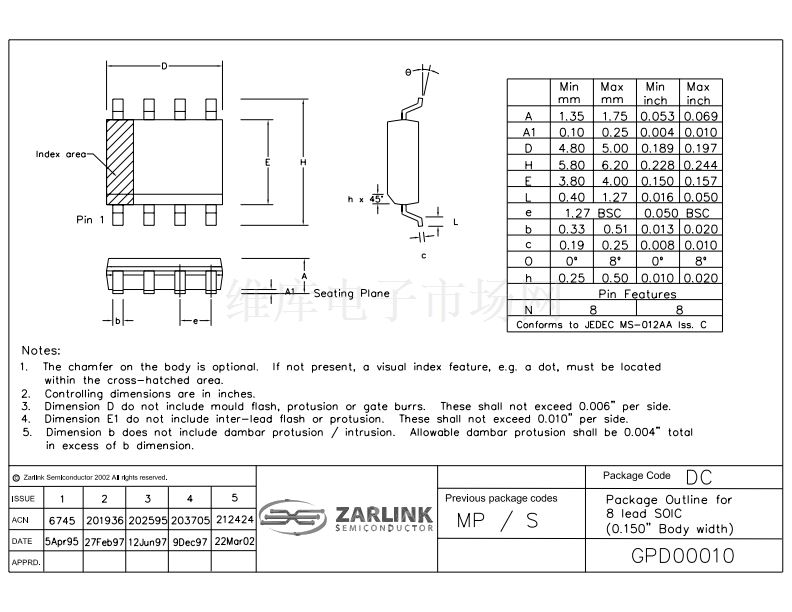

(tubes) 8 lead SOIC

(tape and reel) 8 lead SOIC

April 2003

鈥?/div>

-40擄C to +85擄C

Description

The ZL40162 is a low cost voltage feedback opamp

capable of driving signals to within 1V of the power

supply rails. It features low noise and low distortion

accompanied by a high output current which makes it

ideally suited for the application as an xDSL line driver.

The dual opamp can be connected as a differential line

driver delivering signals up to 18.8Vpp swing into a 25鈩?/div>

load, fully supporting the peak upstream power levels

for upstream full-rate ADSL (Asymmetrical Digital

Subscriber Line).

鈥?/div>

Applications

鈥?/div>

ADSL PCI modem cards

xDSL external modem

Line Driver

Out_1

8 V+

7 Out_2

In_n_1 2

In_p_1 3

6 In_n_2

V- 4

ZL40162

5 In_p_2

Figure 1 - Functional Block Diagram and Pin Connection
