ZAMP001H6TA Datasheet

  • ZAMP001H6TA

  • 800-2500MHz MMIC WIDEBAND AMPLIFIER LNA, 18dB Gain, Low Curr...

  • 8頁

  • ZETEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

ZAMP001
800-2500MHz MMIC WIDEBAND AMPLIFIER
LNA, 18dB Gain, Low Current
DESCRIPTION
The ZAMP001 is an low current low noise amplifier
designed for L band and IF applications. Although the
ZAMP001 has been designed primarily for DBS
applications the ZAMP001 is capable of extending to
frequencies of 2.5GHz so it has a good fit with various
applications. An additional benefit of the ZAMP001 is
it鈥檚 rising gain characteristic, this has been designed to
counteract the gain losses found at the higher
frequencies. The ZAMP001 has been optimized for
input and output impedances of 50 ohms. The
ZAMP001 complements the buffer amplifiers in the
ZAMP series to give a low current high performance
optimum solution. Packaged in a small SC70-6 with
the minimum number of external bias components
required it is the ideal solution for space and current
limited applications.

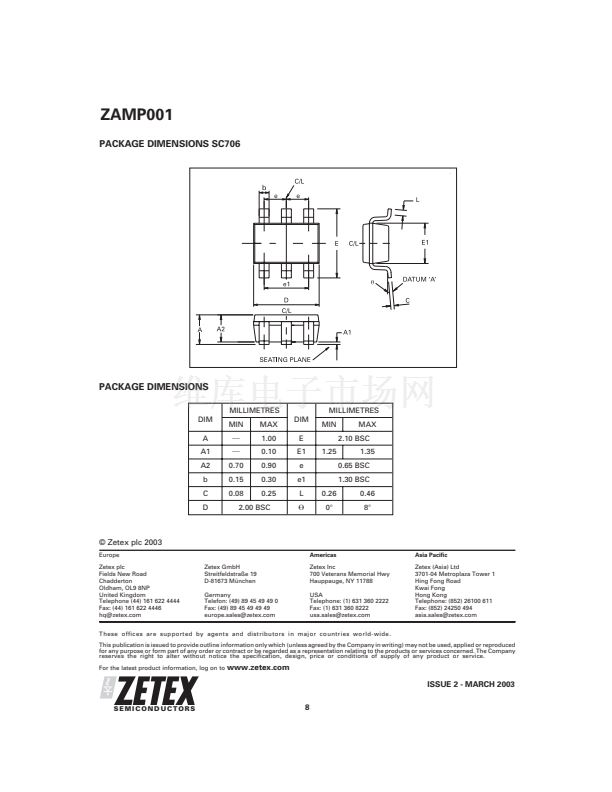

SC70-6
FEATURES
鈥?/div>
L and IF frequency band
鈥?/div>
Low noise 5dB @ 1GHz
鈥?/div>
Low current consumption 12mA typical
鈥?/div>
Gain 18dB typical
鈥?/div>
Rising gain
鈥?/div>
IP3 8dBm @ 1Ghz
鈥?/div>
4.5 to 5.5V Supply Voltage
鈥?/div>
Unconditionally stable
鈥?/div>
SC70-6 SMD package
CONNECTION DIAGRAM
Top View
GND 1
GND 2
INPUT 3
6 OUTPUT
5 GND
4 V
CC
APPLICATIONS
鈥?/div>
Satellite LNB receivers
鈥?/div>
Set-top boxes
鈥?/div>
TV tuners
鈥?/div>
SMR (Special Mobile Radio)
鈥?/div>
RLAN/WLAN
鈥?/div>
General purpose
ORDERING INFORMATION
DEVICE
REEL
SIZE
(inches)
7
13鈥?/div>
QUANTITY
PER REEL
3000 units
10000 units
DEVICE
MARKING
ZP01
ZP01
ZAMP001H6TA
ZAMP001H6TC
ISSUE 2 - MARCH 2003
1
SEMICONDUCTORS

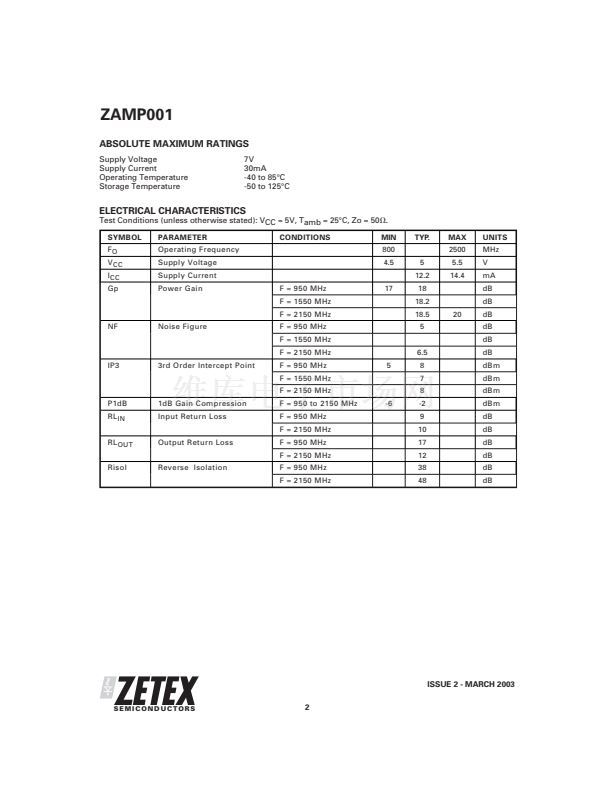

ZAMP001H6TA 產品屬性

  • 1

  • RF/IF 和 RFID

  • RF 放大器

  • -

  • 800MHz ~ 2.5GHz

  • -6dBm（0.3mW）~ -2dBm（0.6mW）

  • 17dB ~ 18dB

  • 5dB

  • DBS，機頂盒，SMR，通用

  • 4.5 V ~ 5.5 V

  • 12.2mA ~ 14.4mA

  • 950MHz

  • 6-TSSOP，SC-88，SOT-363

  • 剪切帶 (CT)

  • ZAMP001H6CT
