鈥?/div>
ICSP Programmable
Full-Duplex UART
Analog Comparators
16 I/O
WDT
Two 8-Bit Timers
G
ENERAL
D
ESCRIPTION

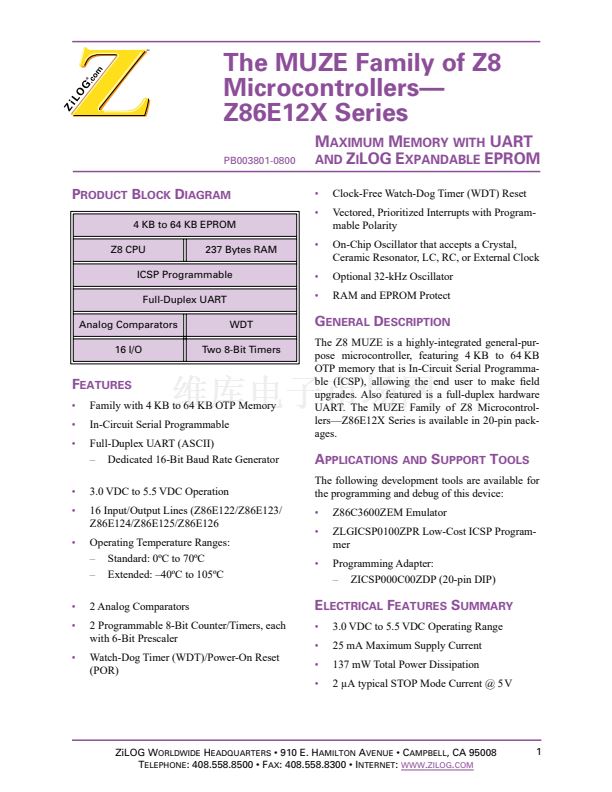

The Z8 MUZE is a highly-integrated general-pur-
pose microcontroller, featuring 4 KB to 64 KB
OTP memory that is In-Circuit Serial Programma-
ble (ICSP), allowing the end user to make 鏗乪ld
upgrades. Also featured is a full-duplex hardware
UART. The MUZE Family of Z8 Microcontrol-
lers鈥擹86E12X Series is available in 20-pin pack-
ages.
F
EATURES
鈥?/div>
鈥?/div>
鈥?/div>
Family with 4 KB to 64 KB OTP Memory
In-Circuit Serial Programmable
Full-Duplex UART (ASCII)
鈥?/div>
Dedicated 16-Bit Baud Rate Generator
3.0 VDC to 5.5 VDC Operation
16 Input/Output Lines (Z86E122/Z86E123/
Z86E124/Z86E125/Z86E126
Operating Temperature Ranges:
鈥?/div>
Standard: 0潞C to 70潞C
鈥?/div>
Extended: 鈥?0潞C to 105潞C
2 Analog Comparators
2 Programmable 8-Bit Counter/Timers, each
with 6-Bit Prescaler
Watch-Dog Timer (WDT)/Power-On Reset
(POR)
A
PPLICATIONS AND
S
UPPORT
T
OOLS
The following development tools are available for
the programming and debug of this device:
鈥?/div>
鈥?/div>
鈥?/div>
Z86C3600ZEM Emulator
ZLGICSP0100ZPR Low-Cost ICSP Program-
mer
Programming Adapter:
鈥?/div>
ZICSP000C00ZDP (20-pin DIP)
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
E
LECTRICAL
F
EATURES
S
UMMARY
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
3.0 VDC to 5.5 VDC Operating Range
25 mA Maximum Supply Current
137 mW Total Power Dissipation
2 碌A typical STOP Mode Current @ 5V
ZiLOG W
ORLDWIDE
H
EADQUARTERS
鈥?910 E. H
AMILTON
A
VENUE
鈥?C
AMPBELL
, CA 95008
T
ELEPHONE
: 408.558.8500 鈥?F
AX
: 408.558.8300 鈥?I
NTERNET
:
WWW
.
ZILOG
.
COM
1
