Z86E0612PSC Datasheet

  • Z86E0612PSC

  • CMOS Z8 OTP MICROCONTROLLERS

  • 9頁

  • ZILOG   ZILOG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

P R E L I M I N A R Y
Z86E03/E06
CP95DZ81301
P
RELIMINARY
C
USTOMER
P
ROCUREMENT
S
PECIFICATION

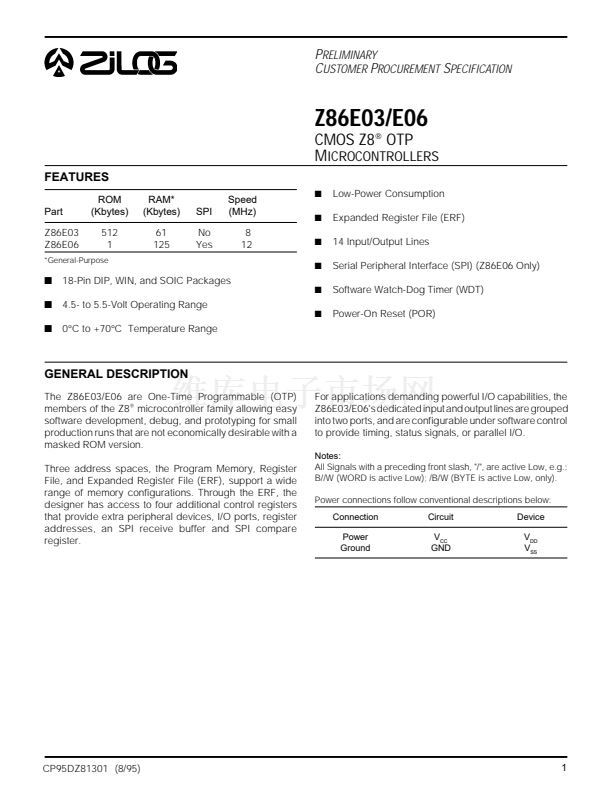

Z86E03/E06
CMOS Z8
廬
OTP
M
ICROCONTROLLERS
FEATURES
Part
Z86E03
Z86E06
ROM
(Kbytes)
512
1
RAM*
(Kbytes)
61
125
SPI
No
Yes
Speed
(MHz)
8
12
s
s
s
s
s
s
Low-Power Consumption
Expanded Register File (ERF)
14 Input/Output Lines
Serial Peripheral Interface (SPI) (Z86E06 Only)
Software Watch-Dog Timer (WDT)
Power-On Reset (POR)
*General-Purpose
s
s
s
18-Pin DIP, WIN, and SOIC Packages
4.5- to 5.5-Volt Operating Range
0擄C to +70擄C Temperature Range

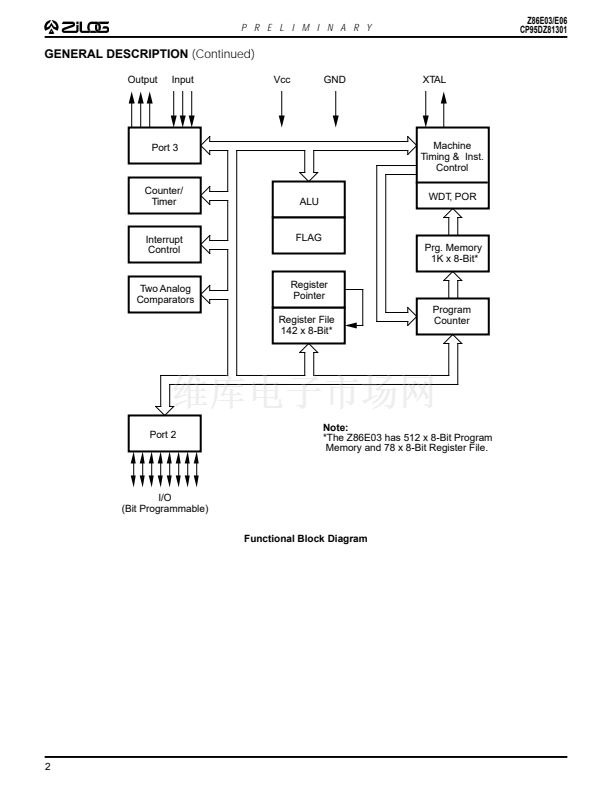

GENERAL DESCRIPTION
The Z86E03/E06 are One-Time Programmable (OTP)
members of the Z8
廬
microcontroller family allowing easy
software development, debug, and prototyping for small
production runs that are not economically desirable with a
masked ROM version.
Three address spaces, the Program Memory, Register
File, and Expanded Register File (ERF), support a wide
range of memory configurations. Through the ERF, the
designer has access to four additional control registers
that provide extra peripheral devices, I/O ports, register
addresses, an SPI receive buffer and SPI compare
register.
For applications demanding powerful I/O capabilities, the
Z86E03/E06's dedicated input and output lines are grouped
into two ports, and are configurable under software control
to provide timing, status signals, or parallel I/O.

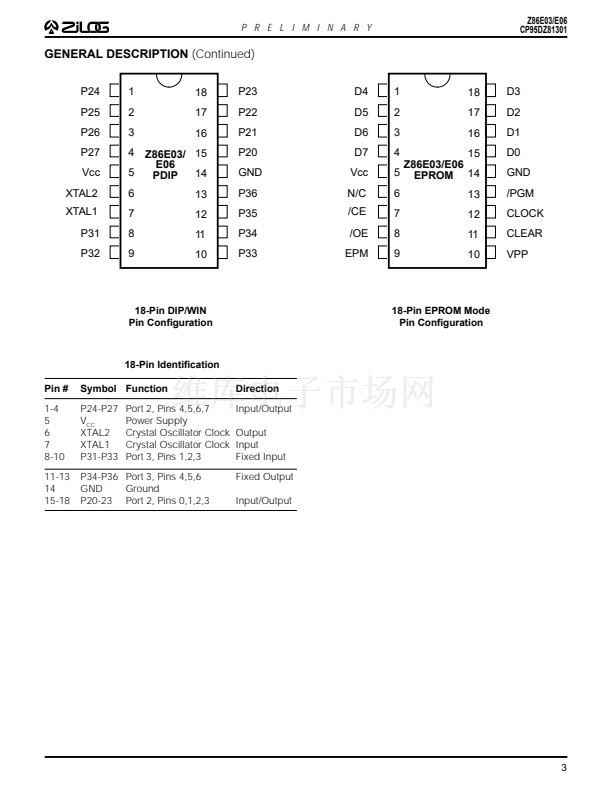

Notes:
All Signals with a preceding front slash, "/", are active Low, e.g.:
B//W (WORD is active Low); /B/W (BYTE is active Low, only).
Power connections follow conventional descriptions below:
Connection
Power
Ground
Circuit
V
CC
GND
Device
V
DD
V
SS
CP95DZ81301 (8/95)
1

Z86E0612PSC 產品屬性

  • 20

  • 集成電路 (IC)

  • 嵌入式 - 微控制器，

  • Z8®

  • Z8

  • 8-位

  • 12MHz

  • SPI

  • POR，WDT

  • 14

  • 1KB（1K x 8）

  • OTP

  • -

  • 124 x 8

  • 3 V ~ 5.5 V

  • -

  • 內部

  • 0°C ~ 70°C

  • 18-DIP

  • 管件

  • 269-1085
