Low Profile (1.5鈥?
Single, Dual, Triple
and Quad Outputs
Universal Input
Worldwide Agency
Approvals
Model TEK 100
Smaller than
Comparable Models
Stock to 6 Weeks
Delivery
100% Burn-in/
HiPot Tested
100 Watt Switch Mode
Power Supply
The compact TEK100 is
offered in single, dual, triple
and quad outputs, complete
with short-circuit and
overvoltage protection.
The universal input TEK 100
series is designed for
compliance with international
safety and EMI standards.
Specifications
Input Specifications
Input Voltage:
90-264VAC
Input Frequency:
47-63 Hz
Input Surge (cold start):
40A max @ 115 VAC,
80A max @ 230 VAC
Key Features
Reliability (MTBF):
100,000 hrs.
Short-Circuit Protection:
Hiccup Type
Overvoltage Protection:
125% typical
Overtemperature Protection
Environmental
- Operating
Temperature:
0 to 50擄C
Relative
Humidity:
0 to 90%, non-condensing
- Storage
Temperature:
-20 to 85擄C
Relative Humidity:
5 to 95%,
non-condensing
Output Specifications
Output Voltages:
3.3, 5, 12, 15,
24, 48 VDC
Adjustability:
V1:鹵5%
Output Current:
see model table
Power Output:
100W, convection cooling
Efficiency (@ max load):
70% min.
- Total Regulation
Single Output:
鹵1% (0-100% load)
Multiple Output:
Main Output:
鹵3% (20-100% load)
Auxiliary Outputs:
鹵5%
Temperature Coefficient:
0.1%/擄C, max.
Ripple and Noise:
1% p-p
Overshoot (turn on/off):
No overshoot
Step Load Response:
<5% for 20-100% change
Turn-on Delay (120VAC):
1 sec, max.
Hold-up Time (120VAC):
20 ms
Design Standards
Safety:
UL, cUL, TUV, VDE, CE (Pending)
EMI:
FCC Part 15 Class B
VDE 0871 Class A

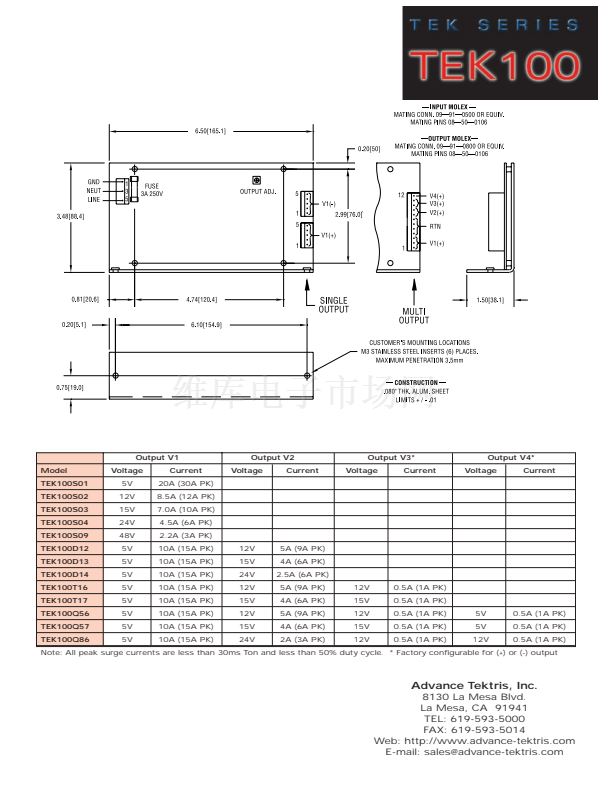

Package Size
1.5 (H) x 3.5 (W) x 6.5 (L) inches
