FEBRUARY 2002
XRT7300
E3/DS3/STS-1 LINE INTERFACE UNIT
REV. 1.1.1
GENERAL DESCRIPTION
The XRT7300 DS3/E3/STS-1 Line Interface Unit is
designed to be used in DS3, E3 or SONET STS-1 ap-
plications and consists of a line transmitter and re-
ceiver integrated on a single chip.
XRT7300 can be configured to support the E3
(34.368 Mbps), DS3 (44.736 Mbps) or the SONET
STS-1 (51.84 Mbps) rates.
In the transmit direction, the XRT7300 encodes input
data to either B3ZS (for DS3/STS-1 applications) or
HDB3 (for E3 applications) format and converts the
data into the appropriate pulse shapes for transmis-
sion over coaxial cable via a 1:1 transformer.
In the receive direction the XRT7300 performs equal-
ization on incoming signals, performs Clock Recov-
ery, decodes data from either B3ZS or HDB3 format,
converts the receive data into TTL/CMOS format,
checks for LOS or LOL conditions and detects and
declares the occurrence of line code violations.
The XRT7300 also contains a 4-Wire Microprocessor
Serial Interface for accessing the on-chip Command
registers.

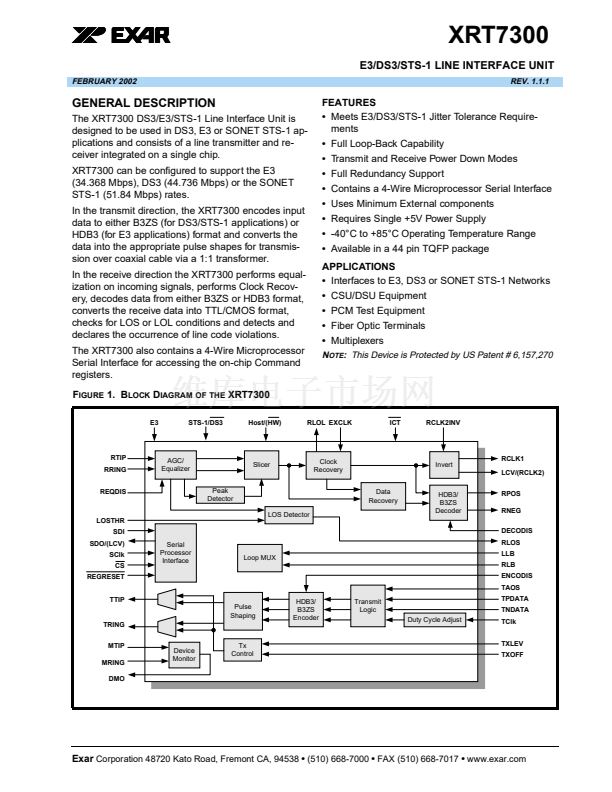

F
IGURE
1. B
LOCK
D
IAGRAM OF THE
XRT7300
E3
STS-1/DS3
Host/(HW)
FEATURES
鈥?/div>
Meets E3/DS3/STS-1 Jitter Tolerance Require-
ments
鈥?/div>
Full Loop-Back Capability
鈥?/div>
Transmit and Receive Power Down Modes
鈥?/div>
Full Redundancy Support
鈥?/div>
Contains a 4-Wire Microprocessor Serial Interface
鈥?/div>
Uses Minimum External components
鈥?/div>
Requires Single +5V Power Supply
鈥?/div>
-40擄C to +85擄C Operating Temperature Range
鈥?/div>
Available in a 44 pin TQFP package
APPLICATIONS
鈥?/div>
Interfaces to E3, DS3 or SONET STS-1 Networks
鈥?/div>
CSU/DSU Equipment
鈥?/div>
PCM Test Equipment
鈥?/div>
Fiber Optic Terminals
鈥?/div>
Multiplexers
N
OTE
:
This Device is Protected by US Patent # 6,157,270
