XR-T5684
...the analog plus company
TM
Low Power T1
Analog Interface
June 1997-3
FEATURES
D
Fully Integrated T1 Transceiver
D
Low Power Consumption (normally 225mW)
D
Recovered Data and Clock Outputs
D
Driver Performance Monitor
D
Internal Transmit LBO for Line Lengths Between
0 to 655 Feet
D
Compliance with TR-TSY-000499, 43802 and 43801
Input Jitter Tolerance Specifications
APPLICATIONS
D
Interfacing T1 Network Equipment such as
Multiplexers, Channel Banks and DSX-1 Switching
Systems
D
Interfacing Customer Premises Equipment such as
CSUs, PBXs, T1 Measurement and Test Equipment
GENERAL DESCRIPTION
The XR-T5684 is a fully integrated PCM line transceiver
intended for DSX-1 digital cross-connect applications. It
combines both transmit and receive circuitry in a 28 pin

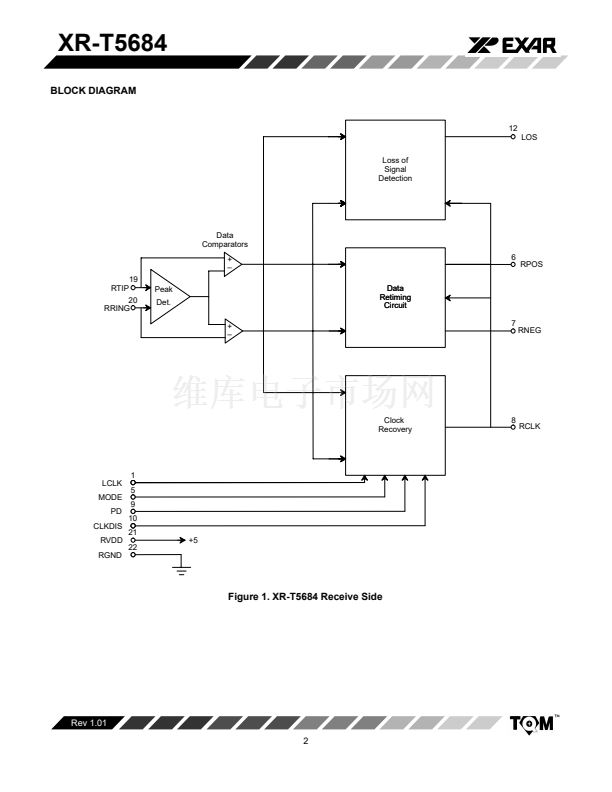

PLCC or PDIP package. The receiver extracts data from
AMI coded input signal, and outputs synchronized clock and
unipolar RPOS and RNEG data by means of an external 8X
or 16X oversampling clock. The oversampling clock is
necessary only for applications where the clock recovery

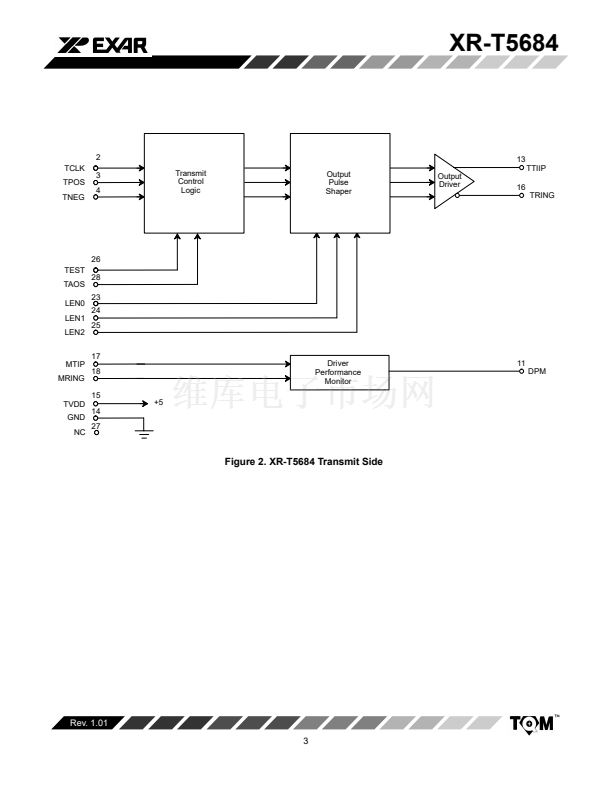

feature is required. The transmitter of the device pre-shapes
the transmit pulse internally, providing the appropriate pulse
shape at the cross-connect for line lengths ranging from 0 to
655 feet. The XR-T5684 is manufactured using advanced
CMOS technology and requires only a single +5V power
supply.
ORDERING INFORMATION
Operating
Temperature Range
-40 to + 85擄C
-40 to + 85擄C
Part No.
XR-T5684IJ
XR-T5684IP
Package
28 Lead PLCC
28 Lead 600 Mil PDIP
Rev. 1.01
E1997
EXAR Corporation, 48720 Kato Road, Fremont, CA 94538
z
(510) 668-7000
z
FAX (510) 668-7017
1
