Advance Information
MPC8241TXXPNS
Rev. 1, 8/2003
MPC8241 Part Number
Specification for the
XPC8241TXXnnnx Series
Freescale Semiconductor, Inc...
Motorola Part
Numbers Affected:
XPC8241TZP166B
MPC8241TZQ166D
XPC8241TZP200B
MPC8241TZQ266D
This document describes part-number-specific changes to recommended operating conditions
and revised electrical specifications, as applicable, from those described in the general
MPC8241 Integrated Processor Hardware Specifications
(Order No. MPC8241EC/D). The
MPC8241 combines a MPC603e PowerPC鈩?core microprocessor with a PCI bridge.
Specifications provided in this document supersede those in the
MPC8241 Integrated
Processor Hardware Specifications,
Rev. 0.3 or later, for the part numbers listed in Table A
only. Specifications not addressed herein are unchanged. Because this document is frequently
updated, refer to http://www.motorola.com/semiconductors or to your Motorola sales office
for the latest version.
Note that headings and table numbers in this document are not consecutively numbered. They
are intended to correspond to the heading or table affected in the general hardware
specification.

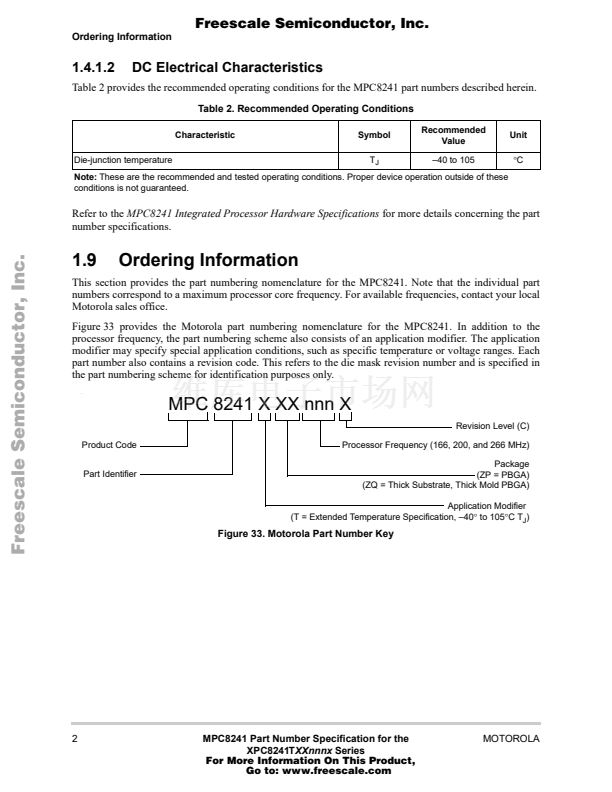

Part numbers addressed in this document are listed in Table A. For more detailed ordering
information see Section 1.9, 鈥淥rdering Information.鈥?/div>

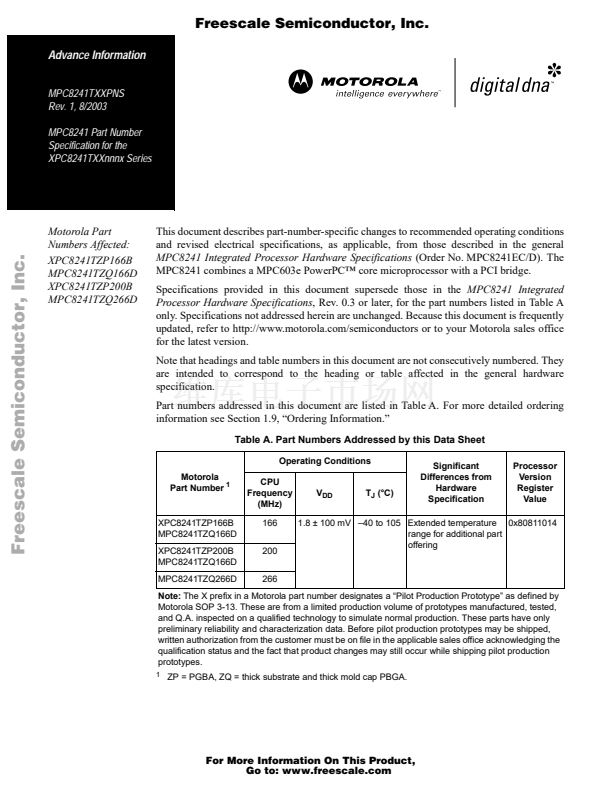

Table A. Part Numbers Addressed by this Data Sheet
Operating Conditions
Motorola
Part Number
1
CPU
Frequency
(MHz)
166
200
266
Significant
Differences from
Hardware
Specification
Processor
Version
Register
Value
V
DD
T
J
(擄C)
XPC8241TZP166B
MPC8241TZQ166D
XPC8241TZP200B
MPC8241TZQ166D
MPC8241TZQ266D
1.8 鹵 100 mV 鈥?0 to 105 Extended temperature 0x80811014
range for additional part
offering
Note:
The X prefix in a Motorola part number designates a 鈥淧ilot Production Prototype鈥?as defined by
Motorola SOP 3-13. These are from a limited production volume of prototypes manufactured, tested,
and Q.A. inspected on a qualified technology to simulate normal production. These parts have only
preliminary reliability and characterization data. Before pilot production prototypes may be shipped,
written authorization from the customer must be on file in the applicable sales office acknowledging the
qualification status and the fact that product changes may still occur while shipping pilot production
prototypes.
1
ZP = PGBA, ZQ = thick substrate and thick mold cap PBGA.
