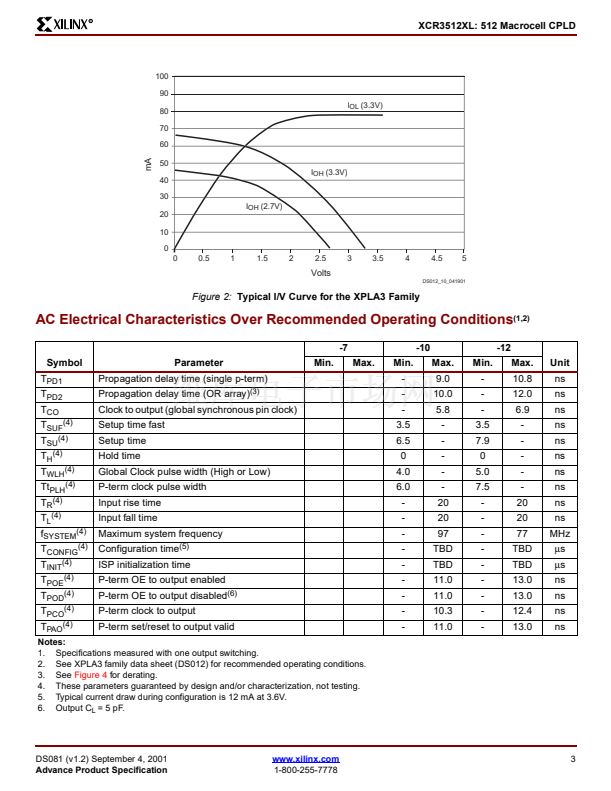

Lowest power 512 macrocell CPLD
7.5 ns pin-to-pin logic delays
System frequencies up to 127 MHz
512 macrocells with 12,800 usable gates
Available in small footprint packages
- 208-pin PQFP (180 user I/O)
- 256-ball FBGA (212 user I/O)
- 324-ball FBGA (260 user I/O)
Optimized for 3.3V systems
- Ultra low power operation
- 5V tolerant I/O pins with 3.3V core supply
- Advanced 0.35 micron five layer metal EEPROM
process
- FZP鈩?CMOS design technology
Advanced system features
- In-system programming
- Input registers
- Predictable timing model
- Up to 23 clocks available per function block
- Excellent pin retention during design changes
- Full IEEE Standard 1149.1 boundary-scan (JTAG)
- Four global clocks
- Eight product term control terms per function block
Fast ISP programming times
Port Enable pin for additional I/O
2.7V to 3.6V supply voltage at industrial grade voltage
range
Programmable slew rate control per output
Security bit prevents unauthorized access
Refer to XPLA3 family data sheet (DS012) for
architecture description
Description
The XCR3512XL is a 3.3V, 512 macrocell CPLD targeted at
power sensitive designs that require leading edge program-
mable logic solutions. A total of 32 function blocks provide
12,800 usable gates. Pin-to-pin propagation delays are
7.5 ns with a maximum system frequency of 127 MHz.
TotalCMOS鈩?Design Technique for
Fast Zero Power
Xilinx offers a TotalCMOS CPLD, both in process technol-
ogy and design technique. Xilinx employs a cascade of
CMOS gates to implement its sum of products instead of
the traditional sense amp approach. This CMOS gate imple-
mentation allows Xilinx to offer CPLDs that are both high
performance and low power, breaking the paradigm that to
have low power, you must have low performance. Refer to
Figure 1
and
Table 1
showing the I
CC
vs. Frequency of our
XCR3512XL TotalCMOS CPLD (data taken with 32
up/down, loadable 16-bit counters at 3.3V, 25擄C).
140
120
100
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Typical ICC (mA)
80
60
40
20
0
0
20
40
60
80
100
120
140
160
Frequency (MHz)
DS024_01_112700
Figure 1:
XCR3512XL Typical I
CC
vs. Frequency at V
CC
= 3.3V, 25擄C
Table 1:
Typical I
CC
vs. Frequency at V
CC
= 3.3V, 25擄C
Frequency (MHz)
Typical I
CC
(mA)
0
TBD
1
TBD
10
TBD
20
TBD
40
TBD
60
TBD
80
TBD
100
TBD
120
TBD
140
TBD
漏 2001 Xilinx, Inc. All rights reserved. All Xilinx trademarks, registered trademarks, patents, and disclaimers are as listed at
http://www.xilinx.com/legal.htm.
All other trademarks and registered trademarks are the property of their respective owners. All specifications are subject to change without notice.
DS081 (v1.2) September 4, 2001
Advance Product Specification
www.xilinx.com
1-800-255-7778
1
