XC6373E35OPRL Datasheet

  • XC6373E35OPRL

  • LOW FREQUENCY PWM CONTROLLED STEP UP DC/DC CONVERTER

  • 8頁

  • TOREX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

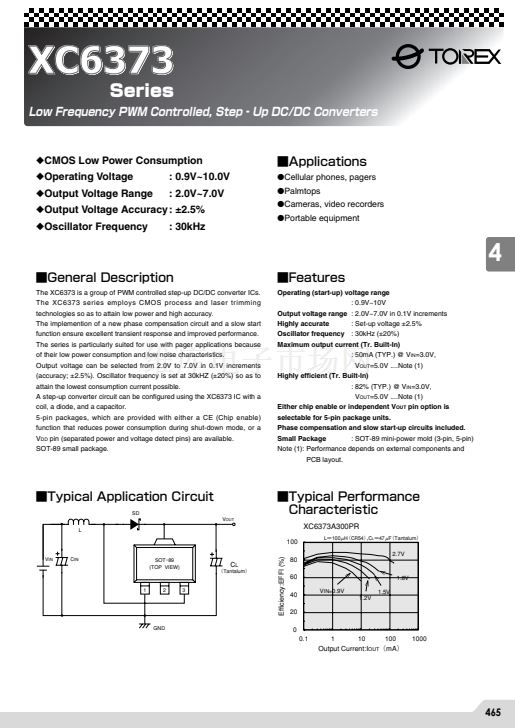

Series
Low Frequency PWM Controlled, Step鈥怳p DC/DC Converters
NCMOS
Low Power Consumption
NOperating
Voltage
NOutput
Voltage Range
NOscillator
Frequency
: 0.9V~10.0V
: 2.0V~7.0V
: 30kHz
鈻燗pplications
GCellular
phones, pagers
GPalmtops
GCameras,
video recorders
GPortable
equipment
NOutput
Voltage Accuracy : 鹵2.5%
4
鈻燝eneral Description
The XC6373 is a group of PWM controlled step-up DC/DC converter ICs.
The XC6373 series employs CMOS process and laser trimming
technologies so as to attain low power and high accuracy.
The implemention of a new phase compensation circuit and a slow start
function ensure excellent transient response and improved performance.
The series is particularly suited for use with pager applications because
of their low power consumption and low noise characteristics.
Output voltage can be selected from 2.0V to 7.0V in 0.1V increments
(accuracy; 鹵2.5%). Oscillator frequency is set at 30kHZ (鹵20%) so as to
attain the lowest consumption current possible.
A step-up converter circuit can be configured using the XC6373 IC with a
coil, a diode, and a capacitor.
5-pin packages, which are provided with either a CE (Chip enable)
function that reduces power consumption during shut-down mode, or a
V
DD
pin (separated power and voltage detect pins) are available.
SOT-89 small package.
鈻燜eatures
Operating (start-up) voltage range
: 0.9V~10V
Output voltage range
: 2.0V~7.0V in 0.1V increments
Highly accurate
: Set-up voltage 鹵2.5%
Oscillator frequency
: 30kHz (鹵20%)
Maximum output current (Tr. Built-In)
: 50mA (TYP.) @ V
IN
=3.0V,
V
OUT
=5.0V ....Note (1)
Highly efficient (Tr. Built-In)
: 82% (TYP.) @ V
IN
=3.0V,
V
OUT
=5.0V ....Note (1)
Either chip enable or independent V
OUT
pin option is
selectable for 5-pin package units.
Phase compensation and slow start-up circuits included.
Small Package
: SOT-89 mini-power mold (3-pin, 5-pin)
Note (1): Performance depends on external components and
PCB layout.

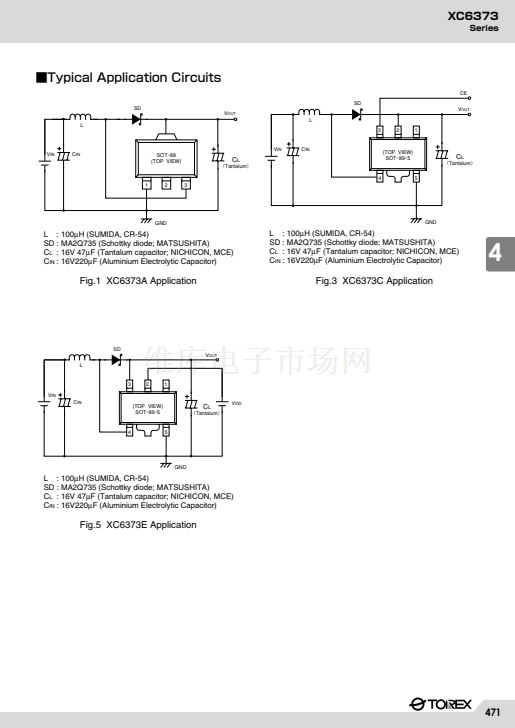

鈻燭ypical Application Circuit
SD
L
V
OUT

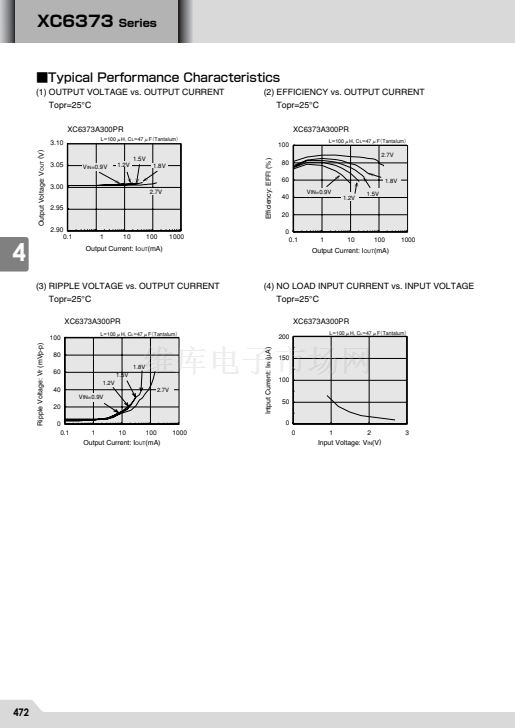

鈻燭ypical Performance
Characteristic
XC6373A300PR
100
L錛?00渭H
錛圕錛?4錛塁
L
錛?7渭F
錛?/div>
錛圱antalum錛?/div>
V
IN
C
IN
Efficiency:EFFI (%)
SOT鈭?9
(TOP VIEW)
C
L
錛圱antalum錛?/div>
80
60
40
20
0
0.1
1
10
V
IN
=0.9V
1.2V
1.5V
2.7V
1.8V
1
2
3
GND
100
1000
Output Current:I
OUT
錛坢A錛?/div>
465
