XC4000E and XC4000X Series Field
Programmable Gate Arrays
0
0*
May 14, 1999 (Version 1.6)
Product Specification
XC4000E and XC4000X Series
Features
Note:
Information in this data sheet covers the XC4000E,
XC4000EX, and XC4000XL families. A separate data sheet
covers the XC4000XLA and XC4000XV families. Electrical
Speci鏗乧ations and package/pin information are covered in
separate sections for each family to make the information
easier to access, review, and print. For access to these sec-
tions, see the Xilinx W
EB
LINX web site at
http://www.xilinx.com/partinfo/databook.htm#xc4000.
鈥?/div>
System featured Field-Programmable Gate Arrays
- Select-RAM
TM
memory: on-chip ultra-fast RAM with
- synchronous write option
- dual-port RAM option
- Fully PCI compliant (speed grades -2 and faster)
- Abundant 鏗俰p-鏗俹ps
- Flexible function generators
- Dedicated high-speed carry logic
- Wide edge decoders on each edge
- Hierarchy of interconnect lines
- Internal 3-state bus capability
- Eight global low-skew clock or signal distribution
networks
System Performance beyond 80 MHz
Flexible Array Architecture
Low Power Segmented Routing Architecture
Systems-Oriented Features
- IEEE 1149.1-compatible boundary scan logic
support
- Individually programmable output slew rate
- Programmable input pull-up or pull-down resistors
- 12 mA sink current per XC4000E output
Con鏗乬ured by Loading Binary File
- Unlimited re-programmability
Read Back Capability
- Program veri鏗乧ation
- Internal node observability
Backward Compatible with XC4000 Devices
Development System runs on most common computer
platforms
- Interfaces to popular design environments
- Fully automatic mapping, placement and routing
- Interactive design editor for design optimization
Low-Voltage Versions Available
鈥?Low-Voltage Devices Function at 3.0 - 3.6 Volts
鈥?XC4000XL: High Performance Low-Voltage Versions of
XC4000EX devices
Additional XC4000X Series Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Highest Performance 鈥?3.3 V XC4000XL
Highest Capacity 鈥?Over 180,000 Usable Gates
5 V tolerant I/Os on XC4000XL
0.35
碌m
SRAM process for XC4000XL
Additional Routing Over XC4000E
- almost twice the routing capacity for high-density
designs
Buffered Interconnect for Maximum Speed Blocks
Improved VersaRing
TM
I/O Interconnect for Better Fixed
Pinout Flexibility
12 mA Sink Current Per XC4000X Output
Flexible New High-Speed Clock Network
- Eight additional Early Buffers for shorter clock delays
- Virtually unlimited number of clock signals
Optional Multiplexer or 2-input Function Generator on
Device Outputs
Four Additional Address Bits in Master Parallel
Con鏗乬uration Mode
XC4000XV Family offers the highest density with
0.25
碌m
2.5 V technology
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
6
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Introduction
XC4000 Series high-performance, high-capacity Field Pro-
grammable Gate Arrays (FPGAs) provide the bene鏗乼s of
custom CMOS VLSI, while avoiding the initial cost, long
development cycle, and inherent risk of a conventional
masked gate array.
The result of thirteen years of FPGA design experience and
feedback from thousands of customers, these FPGAs com-
bine architectural versatility, on-chip Select-RAM memory
with edge-triggered and dual-port modes, increased
speed, abundant routing resources, and new, sophisticated
software to achieve fully automated implementation of
complex, high-density, high-performance designs.

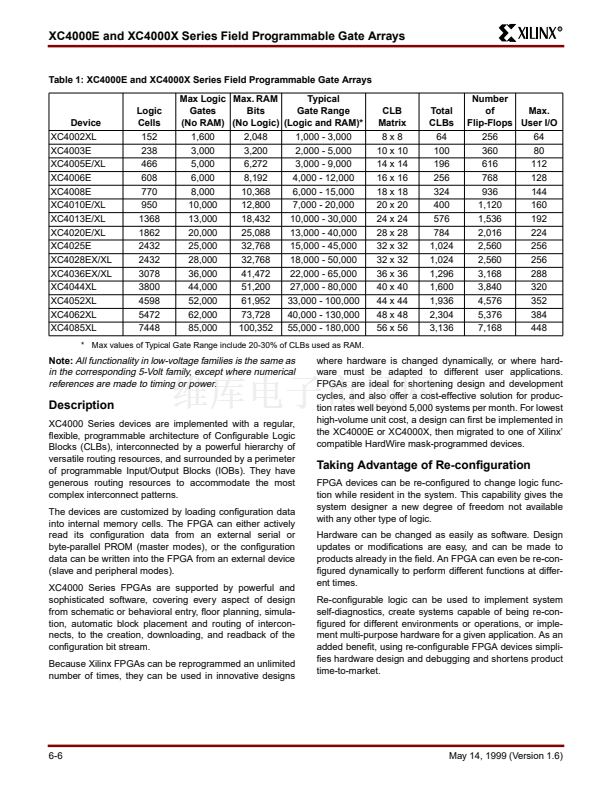

The XC4000E and XC4000X Series currently have 20
members, as shown in
Table 1.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
May 14, 1999 (Version 1.6)
6-5
