X95820WV14IZ-2.7 Datasheet

  • X95820WV14IZ-2.7

  • Dual Digital Controlled Potentiometers

  • 12頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
X95820
Low Noise/Low Power/2-Wire Bus/256 Taps
Data Sheet
September 26, 2005
FN8212.1
Dual Digital Controlled Potentiometers
(XDCP鈩?

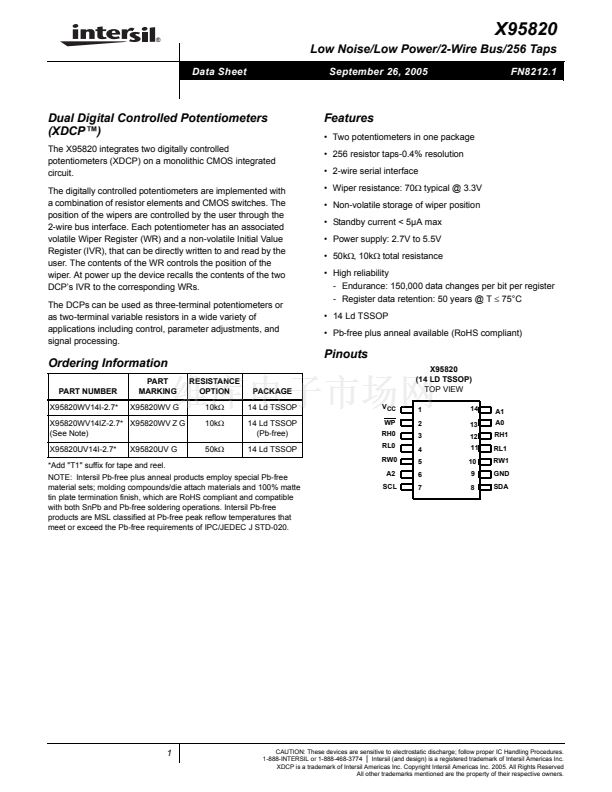

The X95820 integrates two digitally controlled
potentiometers (XDCP) on a monolithic CMOS integrated
circuit.
The digitally controlled potentiometers are implemented with
a combination of resistor elements and CMOS switches. The
position of the wipers are controlled by the user through the
2-wire bus interface. Each potentiometer has an associated
volatile Wiper Register (WR) and a non-volatile Initial Value
Register (IVR), that can be directly written to and read by the
user. The contents of the WR controls the position of the
wiper. At power up the device recalls the contents of the two
DCP鈥檚 IVR to the corresponding WRs.
The DCPs can be used as three-terminal potentiometers or
as two-terminal variable resistors in a wide variety of
applications including control, parameter adjustments, and
signal processing.
Features
鈥?Two potentiometers in one package
鈥?256 resistor taps-0.4% resolution
鈥?2-wire serial interface
鈥?Wiper resistance: 70鈩?typical @ 3.3V
鈥?Non-volatile storage of wiper position
鈥?Standby current < 5碌A(chǔ) max
鈥?Power supply: 2.7V to 5.5V
鈥?50k鈩? 10k鈩?total resistance
鈥?High reliability
- Endurance: 150,000 data changes per bit per register
- Register data retention: 50 years @ T
鈮?/div>
75擄C
鈥?14 Ld TSSOP
鈥?Pb-free plus anneal available (RoHS compliant)
Ordering Information
PART NUMBER
X95820WV14I-2.7*
PART
MARKING
X95820WV G
RESISTANCE
OPTION
10k鈩?/div>
10k鈩?/div>
50k鈩?/div>
PACKAGE
14 Ld TSSOP
14 Ld TSSOP
(Pb-free)
14 Ld TSSOP

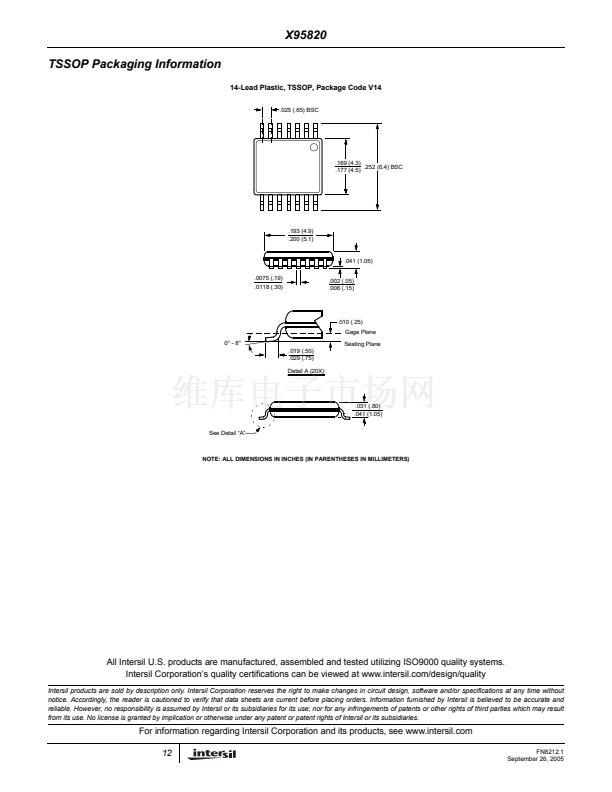

Pinouts
X95820
(14 LD TSSOP)
TOP VIEW
V
CC
WP
RH0
RL0
RW0
A2
SCL
1
2
3
4
5
6
7
14
13
12
11
10
9
8
A1
A0
RH1
RL1
RW1
GND
SDA
X95820WV14IZ-2.7* X95820WV Z G
(See Note)
X95820UV14I-2.7*
X95820UV G
*Add "T1" suffix for tape and reel.
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100% matte
tin plate termination finish, which are RoHS compliant and compatible
with both SnPb and Pb-free soldering operations. Intersil Pb-free
products are MSL classified at Pb-free peak reflow temperatures that
meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
XDCP is a trademark of Intersil Americas Inc. Copyright Intersil Americas Inc. 2005. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
