X28VC256
256K
X28VC256
5 Volt, Byte Alterable E
2
PROM
DESCRIPTION
32K x 8 Bit
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Access Time: 45ns

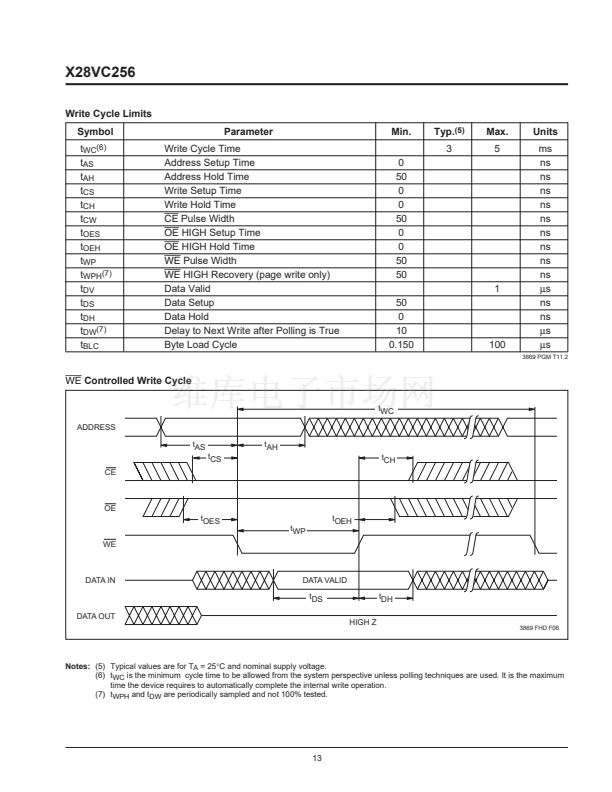

Simple Byte and Page Write
鈥擲ingle 5V Supply
鈥?No External High Voltages or V
PP
Control
Circuits
鈥擲elf-Timed
鈥?No Erase Before Write
鈥?No Complex Programming Algorithms
鈥擭o Overerase Problem
Low Power CMOS:
鈥擜ctive: 80mA
鈥擲tandby: 10mA

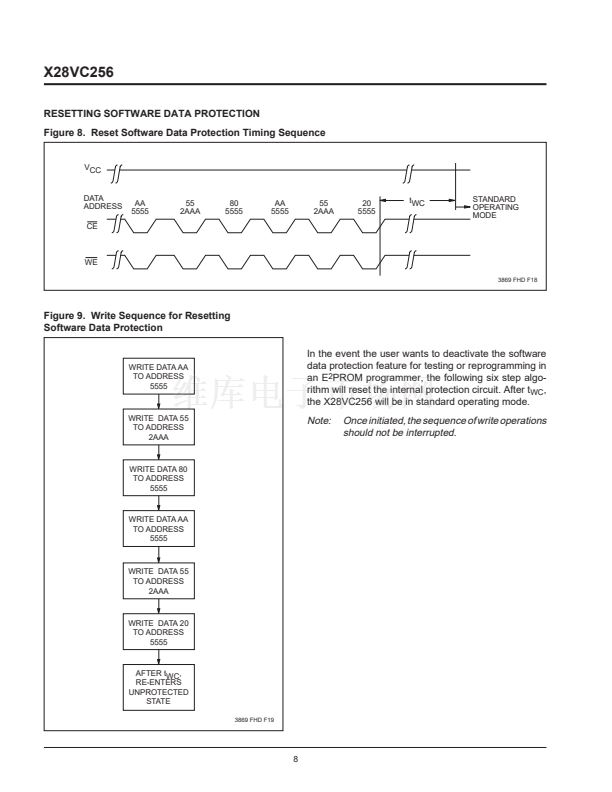

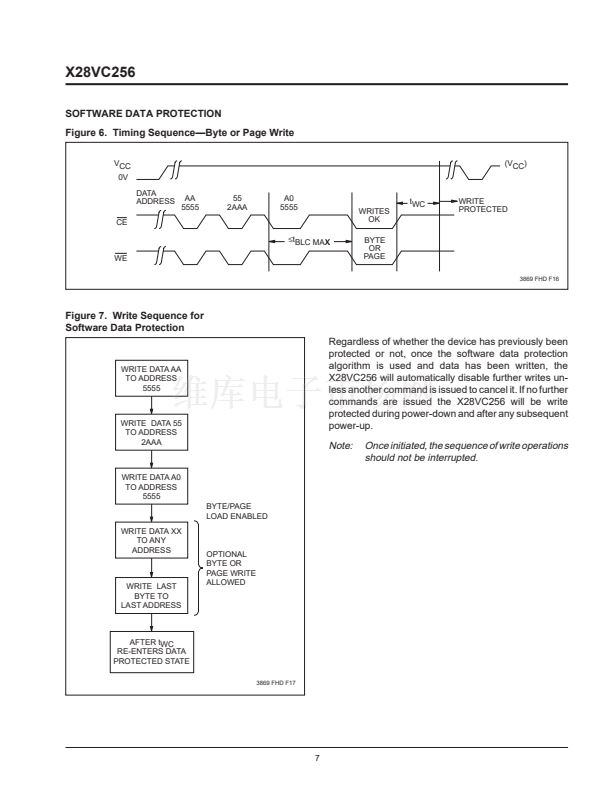

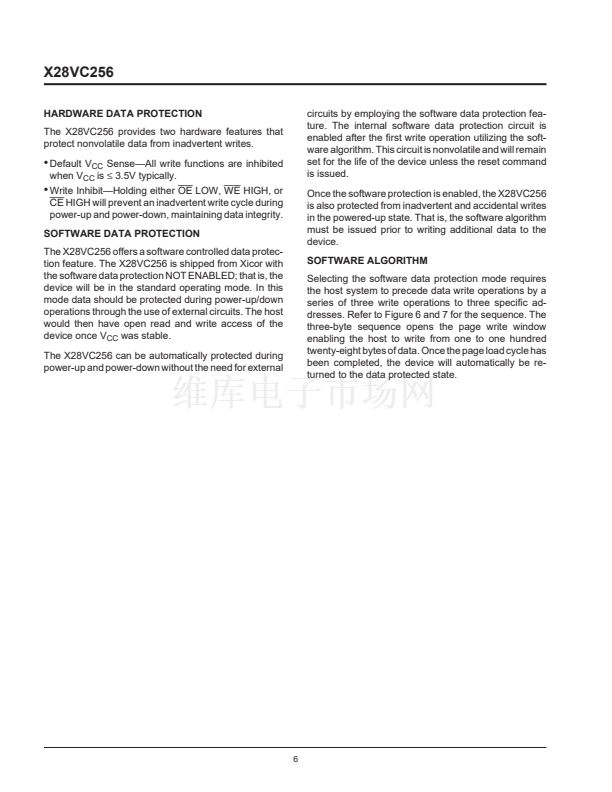

Software Data Protection
鈥擯rotects Data Against System Level
Inadvertent Writes
High Speed Page Write Capability
Highly Reliable Direct Write
鈩?/div>
Cell

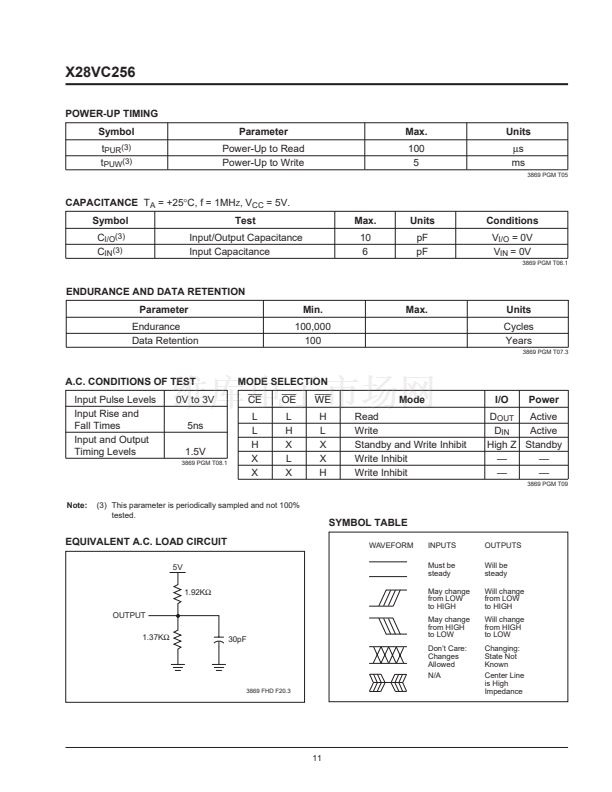

鈥擡ndurance: 100,000 Write Cycles
鈥擠ata Retention: 100 Years

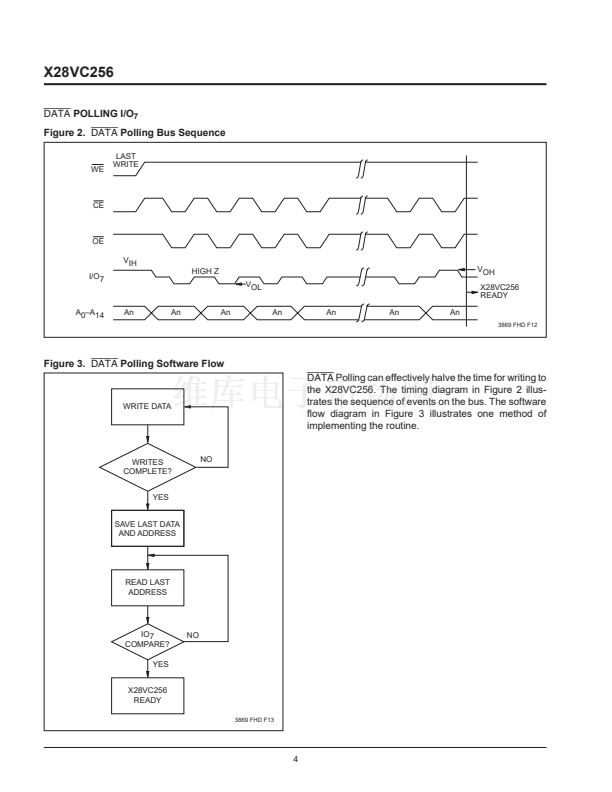

Early End of Write Detection
鈥擠ATA Polling

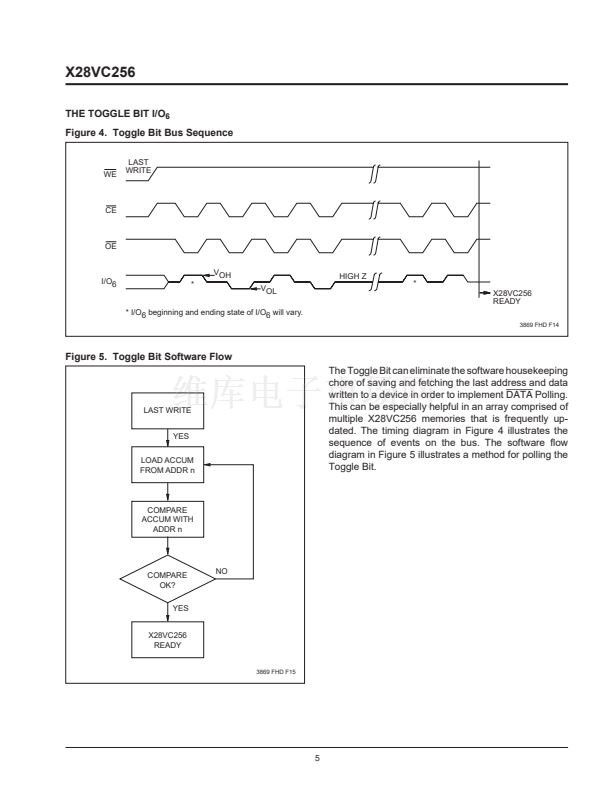

鈥擳oggle Bit Polling

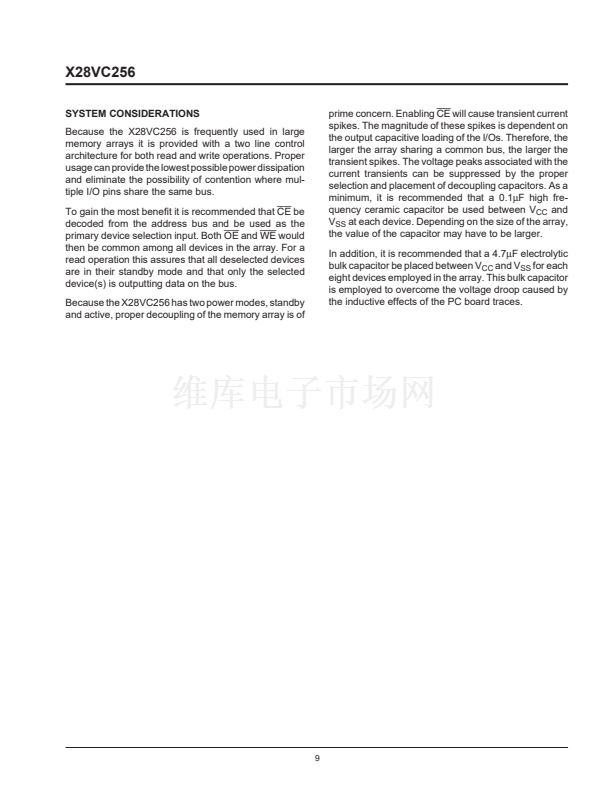

The X28VC256 is a second generation high perfor-
mance CMOS 32K x 8 E
2
PROM. It is fabricated with
Xicor鈥檚 proprietary, textured poly floating gate tech-
nology, providing a highly reliable 5 Volt only nonvolatile
memory.
The X28VC256 supports a 128-byte page write opera-
tion, effectively providing a 24碌s/byte write cycle and
enabling the entire memory to be typically rewritten in
less than 0.8 seconds. The X28VC256 also features
DATA
Polling and Toggle Bit Polling, two methods of
providing early end of write detection. The X28VC256
also supports the JEDEC standard Software Data Pro-
tection feature for protecting against inadvertent writes
during power-up and power-down.
Endurance for the X28VC256 is specified as a minimum
100,000 write cycles per byte and an inherent data
retention of 100 years.

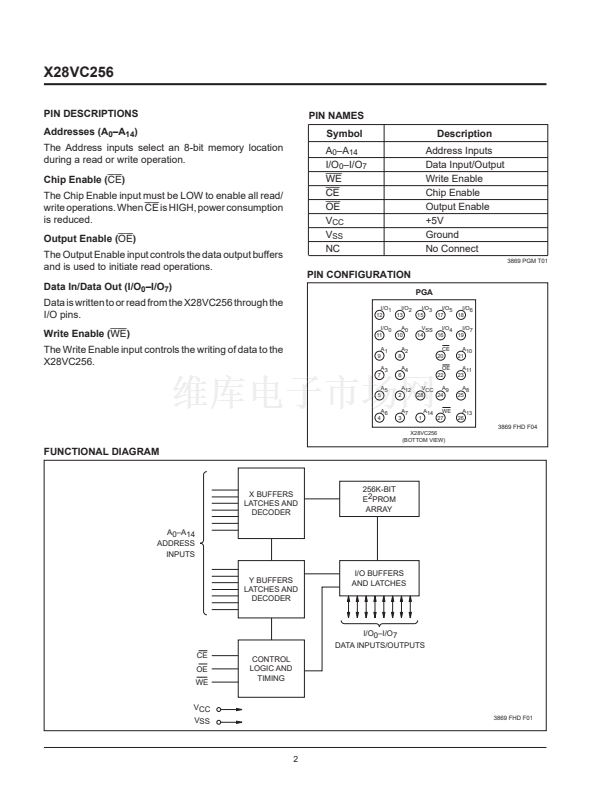

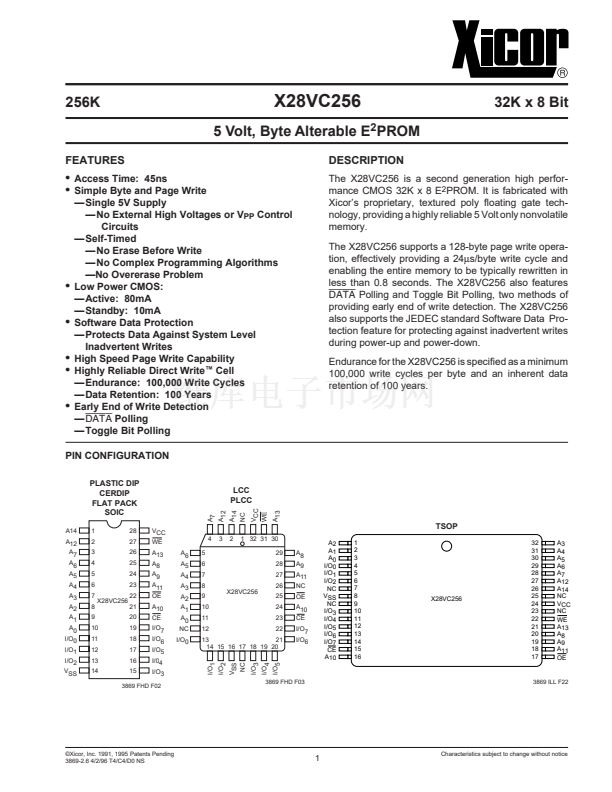

PIN CONFIGURATION

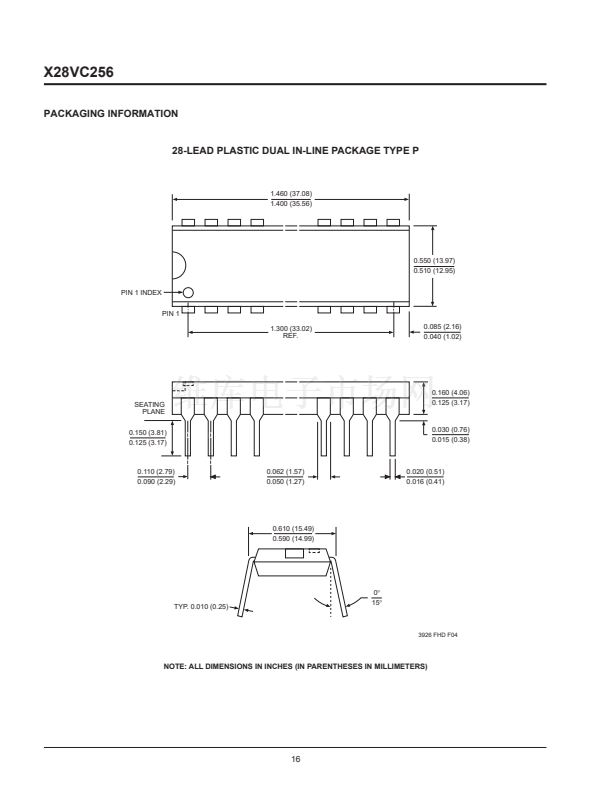

PLASTIC DIP
CERDIP

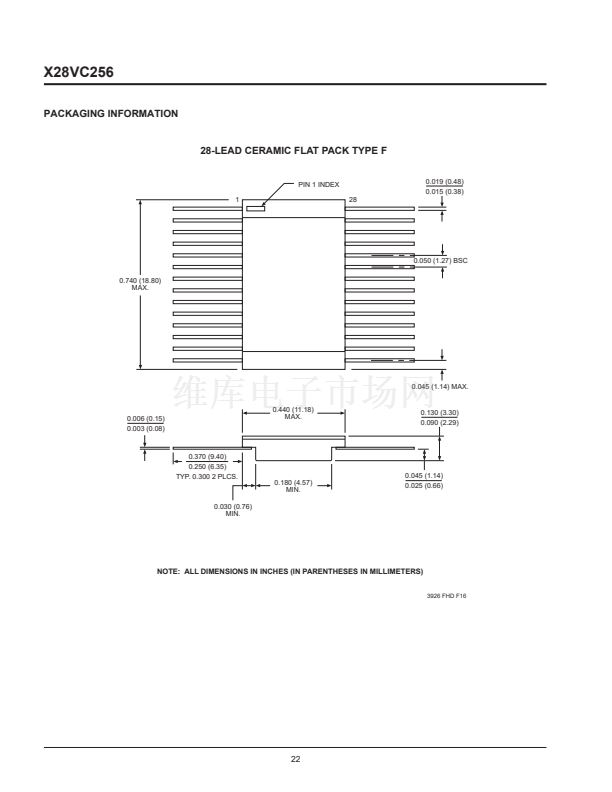

FLAT PACK

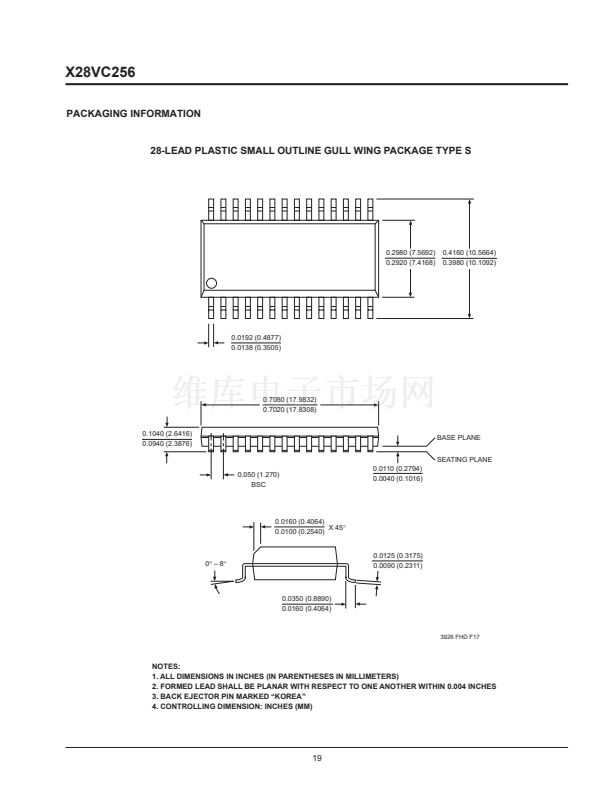

SOIC
A14
A12
A7
A6
A5
A4
A3
A2
A1
A0
I/O0
I/O1
I/O2
VSS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
X28VC256
28
27
26
25
24
23
22
21
20
19
18
17
16
15
VCC
WE
A13
A8
A9
A11
OE
A10
CE
I/O7
I/O6
I/O5
I/04
I/O3

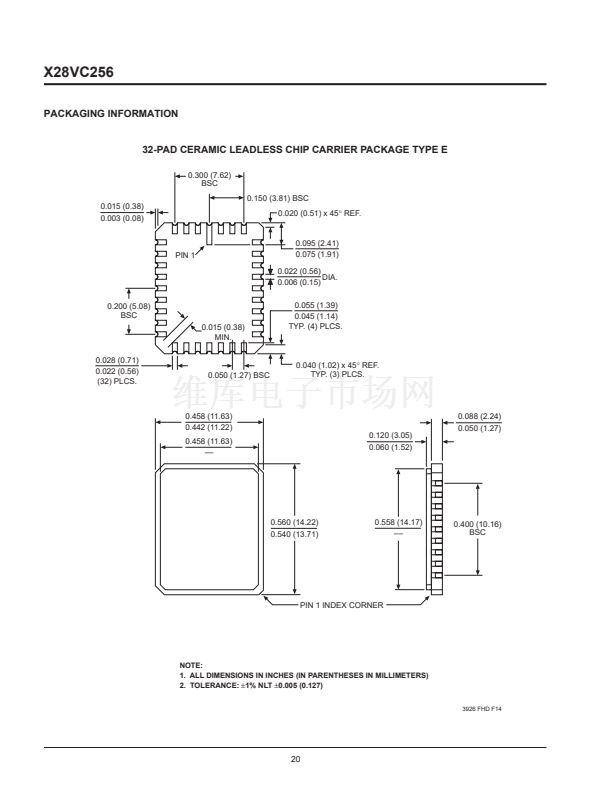

LCC

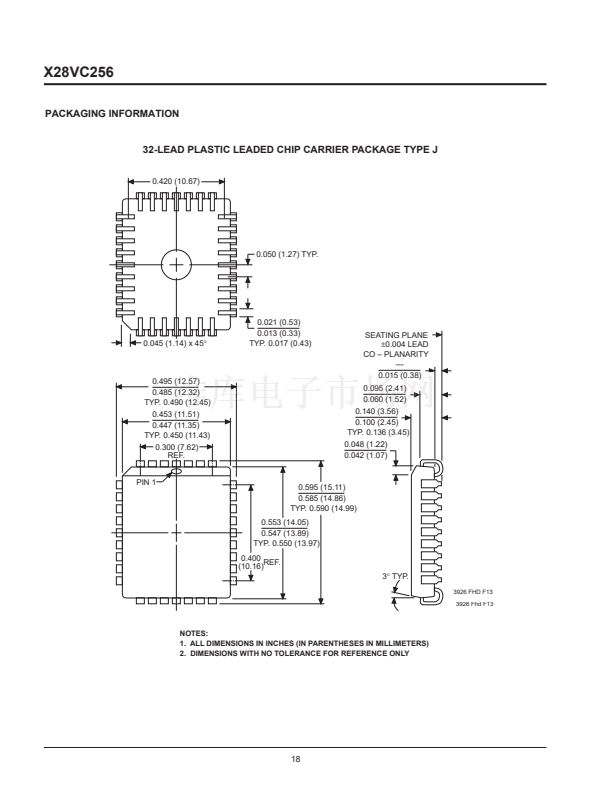

PLCC
VCC
A12
A14
A13
WE
NC
A7

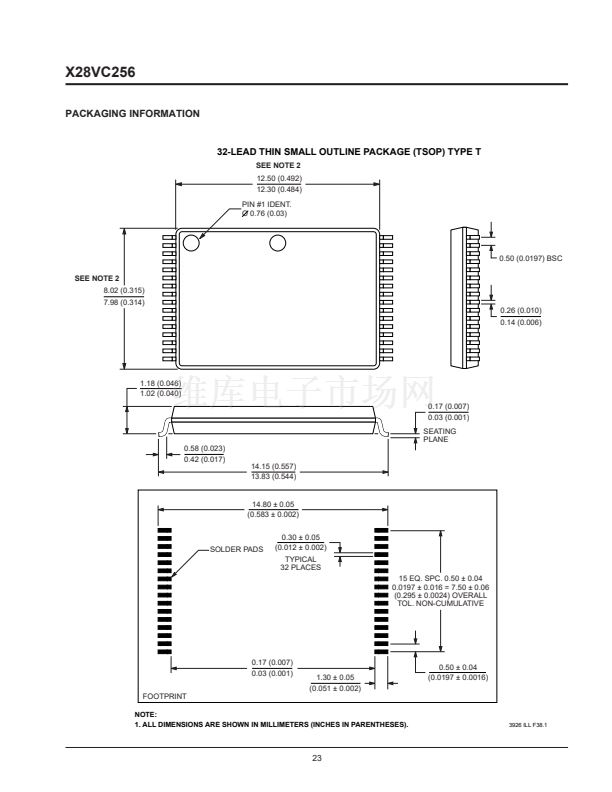

TSOP
4
A6
A5
A4
A3
A2
A1
A0
NC
I/O0
5
6
7
8
9
10
11
12
X28VC256
3
2
1 32 31 30
29
28
27
26
25
24
23
22
A8
A9
A11
NC
OE
A10
CE
I/O7
I/O6
21
13
14 15 16 17 18 19 20
A2
A1
A0
I/O0
I/O1
I/O2
NC
VSS
NC
I/O3
I/O4
I/O5
I/O6
I/O7
CE
A10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
X28VC256
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
A3
A4
A5
A6
A7
A12
A14
NC
VCC
NC
WE
A13
A8
A9
A11
OE
I/O1
I/O2
VSS
NC
I/O3
I/O4
I/O5
3869 FHD F02
