WMS512K8V-XDJX Datasheet

  • WMS512K8V-XDJX

  • SRAM

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

White Electronic Designs
512Kx8 MONOLITHIC SRAM
FEATURES
鈻?/div>
Access Times 15, 17, 20ns
鈻?/div>
Revolutionary, Center Power/Ground Pinout
JEDEC Approved
聲 36 lead Ceramic SOJ (Package 100)
聲 36 lead Ceramic Flat Pack (Package 226)
鈻?/div>
Evolutionary, Corner Power/Ground Pinout
JEDEC Approved

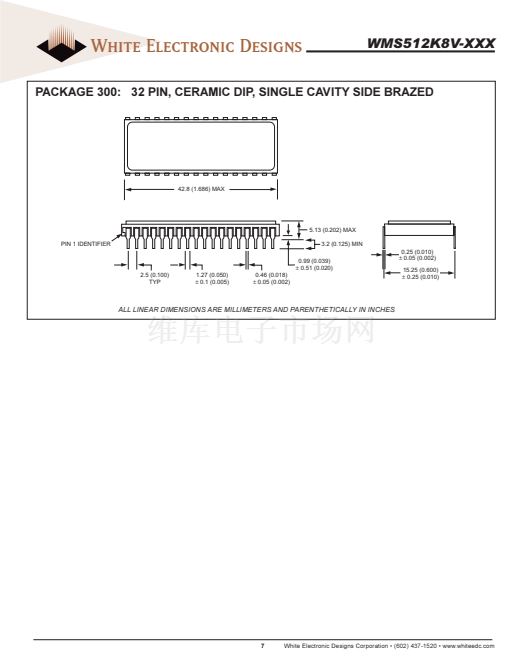

聲 32 pin Ceramic DIP (Package 300)
聲 32 lead Ceramic SOJ (Package 101)
聲 32 lead Ceramic Thinpack聶 Flat Pack (Package 321)
鈻?/div>
32 pin, Rectangular Ceramic Leadless Chip Carrier
(Package 601)
鈻?/div>
Low Power CMOS
PRELIMINARY*
WMS512K8V-XXX
鈻?/div>
Low Voltage Operation:
聲 3.3V 鹵 10% Power Supply
鈻?/div>
Commercial, Industrial and Military Temperature Range
鈻?/div>
TTL Compatible Inputs and Outputs
鈻?/div>
Fully Static Operation:
聲 No clock or refresh required.
鈻?/div>
Three State Output.
* This data sheet describes a product under development, not fully
characterized, and is subject to change without notice.
** Package under developement.
REVOLUTIONARY PINOUT
36 FLAT PACK
36 CSOJ
EVOLUTIONARY PINOUT
32 DIP
32 CSOJ (DE)**
32 THINPACK聶 FLAT PACK (FF)
32 CLCC
TOP VIEW
A0
A1
A2
A3
A4
CS
I/O0
I/O1
V
CC
GND
I/O2
I/O3
WE
A5
A6
A7
A8
A9
TOP VIEW
A12
NC
A18
A17
A16
A15
OE
I/O7
I/O6
GND
V
CC
I/O5
I/O4
A14
A13
A12
A11
A10
NC
TOP VIEW
A14
A16
A18
A15
V
CC
A15
A17
WE
A13
A8
A9
A11
OE
A10
CS
I/O7
I/O6
I/O5
I/O4
I/O3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
A18
A16
A14
A12
A7
A6
A5
A4
A3
A2
A1
A0
I/O0
I/O1
I/O2
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
4 3 2 1 32 31 30
A7
A6
A5
A4
A3
A2
A1
A0
I/O
0
5
29
6
28
27
7
8
26
9
25
10
24
11
23
12
22
13
21
14 15 16 17 18 19 20
I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
V
SS
A17
V
CC
WE
A13
A8
A9
A11
OE
A10
CS
I/O7
PIN DESCRIPTION
A
0-18
I/O
0-7
CS
OE
WE
V
CC
GND
March 2003 Rev. 7
1
Address Inputs
Data Input/Output
Chip Select
Output Enable
Write Enable
Power Supply
Ground
White Electronic Designs Corporation 聲 (602) 437-1520 聲 www.whiteedc.com
