WM8521H9GED/V Datasheet

  • WM8521H9GED/V

  • STEREO DAC WITH INTEGRATED OUTPUT STAGE FOR 2VRMS LINE OUT

  • 20頁

  • WOLFSON

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

w
DESCRIPTION
The WM8521 is a 96kHz stereo DAC with an integrated output
op-amp stage, designed to generate a 2.0Vrms output signal
directly, so reducing external component requirements in digital
audio applications.
WM8521 comes into two variants WM8521HC and WM8521H9
which offers different line drive output capabilities. WM8521HC
outputs 2Vrms at 12V supply, while WM8521H9 outputs
2.0Vrms at 9V supply. WM8521HC/H9 are designed for cost
sensitive consumer digital audio applications requiring 2Vrms
line output.
A 24-bit multi-bit sigma delta DAC is used with oversampling
digital interpolation filters. Digital audio input word lengths from
16-32 bits and sampling rates from 8kHz to 96kHz are
supported.
The audio interface supports I S, Right Justified and DSP digital
audio formats.
The devices are controlled via a hardware interface which
provides access to features including de-emphasis, mute and
data formats. These devices are pin equivalent and are
available in a 14-pin SOIC package.

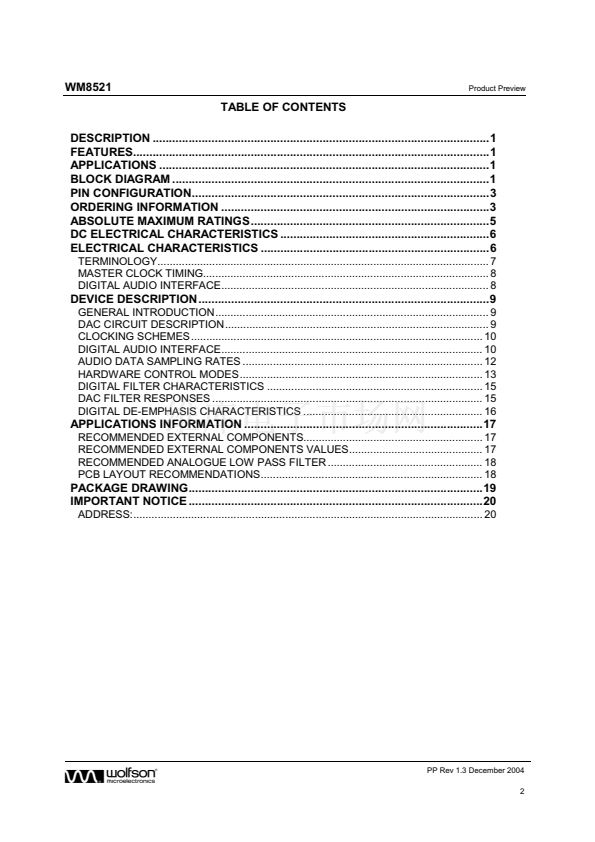

2
WM8521
Stereo DAC With Integrated Output Stage
for 2Vrms LINE OUT
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Audio Performance
- DAC SNR 98dB (鈥楢鈥?weighted @ 48kHz)
- THD -81dB (鈥楢鈥?weighted @ 48kHz)
DAC Sampling Frequency: 8kHz 鈥?96kHz
Pin Selectable Audio Data Interface Format
- I
2
S, 16-bit Right Justified or 16bit DSP
2.0 Vrms output at 12V or 9V supply
8.2V to 13.2V Analogue, 2.7V to 3.6 Digital Supply
14-pin SOIC Package
APPLICATIONS
鈥?/div>
Consumer digital audio applications requiring 2 Vrms output
- DVD Players
- Digital TV
- Digital Set Top Boxes
- A/V Receivers
BLOCK DIAGRAM
WOLFSON MICROELECTRONICS plc
www.wolfsonmicro.com
Product Preview, December 2004, Rev 1.3
Copyright
餂?004
Wolfson Microelectronics plc
.

WM8521H9GED/V 產品屬性

  • Wolfson Microelectronics

  • 音頻數/模轉換器 IC

  • 2

  • 24 bit

  • I2S

  • 9 V

  • - 25 C to + 85 C

  • SOIC-14

  • Tube

  • SMD/SMT

  • 2

  • 2

  • 2 V

  • 96 dB

  • 56

  • 25 mA

  • - 81 dB
