WM8510GEDS/RV Datasheet

  • WM8510GEDS/RV

  • MONO CODEC WITH SPEAKER DRIVER

  • 558.67KB

  • 56頁

  • WOLFSON

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

w
Mono CODEC with Speaker Driver
DESCRIPTION
The WM8510 is a low power, high quality mono codec designed
for Voice over Internet Protocol (VoIP) and Digital Telephones.
The device integrates support for one pseudo-differential and
one single ended input (Handset Mic and Speaker Mic) and
includes drivers for speakers or headset, and mono line output,
making it ideal for Telephone designs. External component
requirements are reduced as no separate microphone or
earpiece amplifiers are required.
Advanced Sigma Delta Converters are used along with digital
decimation and interpolation filters to give high quality audio at
sample rates from 8 to 48ks/s.
Additional digital filtering options are available in the ADC path,
to cater for application filtering such as 鈥榳ind noise reduction鈥?
plus an advanced mixed signal ALC function with noise gate is
provided.
An on-chip PLL is provided to generate the required Master
Clock from an external reference clock. The PLL clock can also
be output if required elsewhere in the system.
The WM8510 operates at supply voltages from 2.5 to 3.6V,
although the digital core can operate at voltages down to 1.62V
to save power. The speaker and mono outputs use a separate
supply of up to 5V which enables increased output power if
required. Different sections of the chip can also be powered
down under software control by way of the selectable two or
three wire control interface.
WM8510 is supplied in a convenient 28-pin SSOP package,
offering high levels of functionality in easy to use package.
鈥?/div>
WM8510
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Mono Codec:
Audio sample rates:8, 11.025, 16, 22.05, 24, 32, 44.1,
48kHz
DAC SNR 93dB, THD -84dB (鈥楢鈥?weighted @ 8 鈥?48ks/s)
ADC SNR 90dB, THD -80dB (鈥楢鈥?weighted @ 8 鈥?48ks/s)
On-chip Headphone/Speaker Driver with 鈥榗ap-less鈥?connect
- 40mW output power into 16鈩?/ 3.3V SPKVDD
- BTL speaker drive 0.8W into 8鈩?/ 5V SPKVDD
Earpiece Line output
Multiple analog inputs, plus analog bypass path (0 or -10dB)
Mic Preamps:
Two Microphone Interfaces
- One pseudo-differential input
- One single ended input
- Programmable preamp gain
- Psuedo differential inputs with common mode rejection
- Programmable ALC / Noise Gate in ADC path
Low-noise bias supplied for microphone
Other features
鈥?/div>
Digital Playback Limiter
鈥?/div>
Programmable ADC High Pass Filter (wind noise reduction)
鈥?/div>
Programmable ADC Notch Filter
鈥?/div>
On-chip PLL
鈥?/div>
Low power, low voltage
- 2.5V to 3.6V (digital core: 1.62V to 3.6V)
- power consumption <10mA all-on 48ks/s mode
鈥?/div>
28 pin SSOP package
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
VoIP Telephones
Digital Telephones
Conference Speaker-phone
Mobile Telephone Hands-free Kits
General Purpose low power audio CODEC
BLOCK DIAGRAM
WOLFSON MICROELECTRONICS plc
w :: www.wolfsonmicro.com
Product Preview December 2004, Rev 1.2
Copyright
餂?004
Wolfson Microelectronics plc

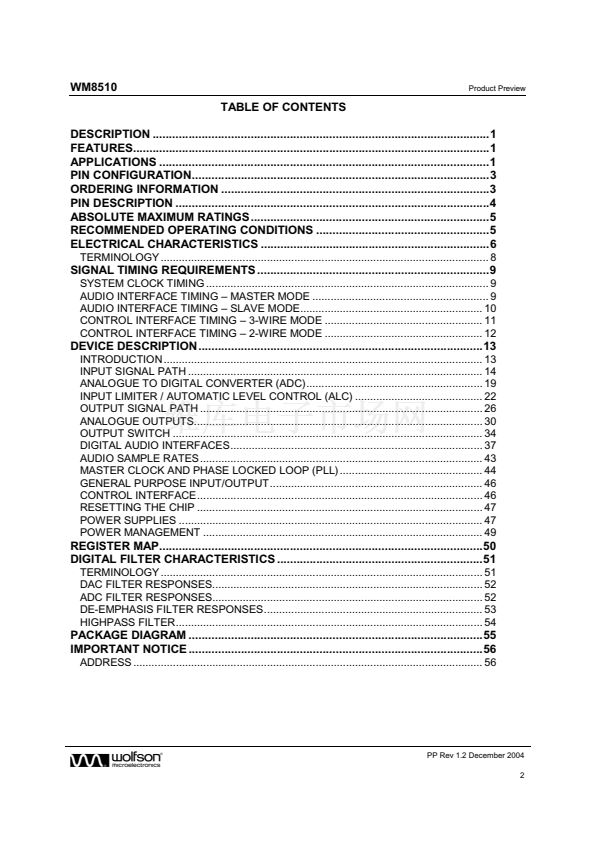

WM8510GEDS/RV 產品屬性

  • Wolfson Microelectronics

  • 音頻編解碼器

  • - 0.3 V to + 7 V

  • + 85 C

  • SMD/SMT

  • SSOP-28

  • Reel

  • - 25 C

  • 2000
