DC/DC Converters

XPiQ inc.

Intelligent

Design

Quality

Product

20 Watts

WE20 Series

鈥?/div>

Industry Standard Package

鈥?/div>

Designed For Telecom Standards

鈥?/div>

Low Voltage Outputs to 1.8 Volts

鈥?/div>

Under Voltage Lockout

鈥?/div>

Remote On/Off

鈥?/div>

Output Voltage Adjustment

鈥?/div>

Conducted EMI level B with

External Filtering

Specification

Input

Input Voltage

Input Current

Start Up Time

Remote On/Off

鈥?/div>

18-36 VDC

36-76 VDC

0.17 A - 0.97 A typical for 24Vin

0.36 A - 0.49 A typical for 48Vin

Less than 10 ms

Negative Logic Standard

Positive Logic Available.

External components required

24 Vin - 11 V min, 14 V typical

48 Vin - 20 V min, 27 V typical

Short Circuit

Protection

Overtemperature

Ptotection

鈥?/div>

Protected to short circuit conditions

Standard with auto recovery

General

Efficiency

Isolation Voltage

MTBF

Package Style

Weight

鈥?/div>

86% typical for 5 V models

1500 VDC Input to Output

2.4 million hours per Bellcore

Potted module with plastic case

28.3 grams typical

Input Reverse Voltage 鈥?/div>

Protection

Undervoltage Lockout 鈥?/div>

Protection

Output

Output Voltage

Adjustment

Minimum Load

Line Regulation

Load Regulation

Output Voltage

Accuracy

Ripple and Noise

Transient Response

鈥?/div>

1.8 - 5.0 VDC

鹵10%

0 min load required

鹵0.3% maximum

鹵1.0% maximum

鹵4%

100 mV typical

5.5% deviation 0.4 ms recovery time

for 25% load change

鹵0.015%/擄C

Standard with auto restart

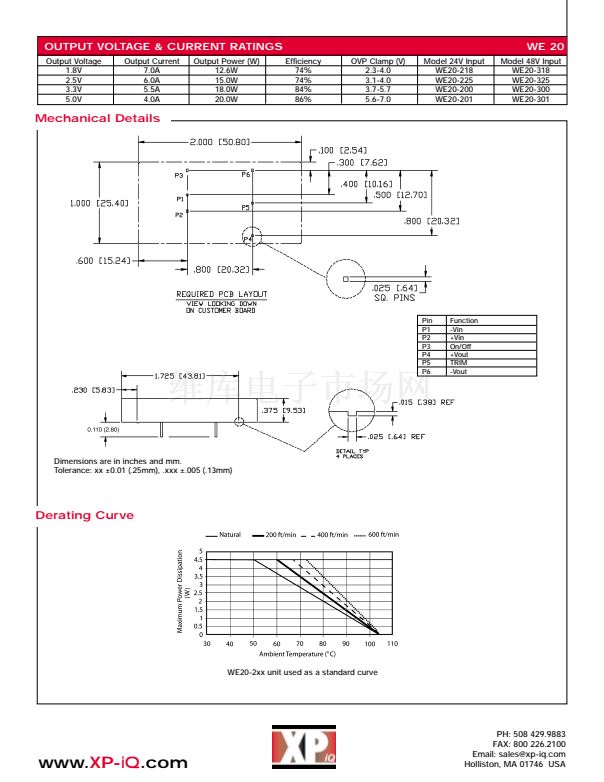

see chart

continuous with auto restart

Environmental

Operating

Temperature

Cooling

200 LFM

Storage Temperature

Shock

Vibration

鈥?/div>

-40擄C to 105擄C Case Temperature

Full power to 50擄C then derate to

0 Watts at 105擄C, see derating chart

Full Power with convection or forced air,

Full power to 60擄C ambient

-55擄C to +125擄C

70G/6ms 1/2 sine 3 shocks x 6 sides

2.5G RMS, 10-55Hz, sweep vibration

1 hour each axis

鈥?/div>

Safety

Safety Approvals

EMI/EMC

Warranty

鈥?/div>

UL1950 3rd ed., EN60950,

CSA 22.2 No. 950-95, CE marked for LVD

EN55022 and FCC level B

ANS163.12 - 1987 with external filtering

1 Year

Temperature Coefficient

Overvoltage

鈥?/div>

Protection

Overcurrent

鈥?/div>

Protection

www.XP-iQ.com

PH: 508 429.9883

FAX: 800 226.2100

Email: sales@xp-iq.com

Holliston, MA 01746 USA
