W562XXX
DUAL-TONE MELODY WITH
VOICE SYNTHESIZER (BandDirector
TM
Series)
GENERAL DESCRIPTION
The W562xxx is one of the derivatives of the BandDirector
TM
family. It consists of a 4-bit
碌C,
two
voice synthesizers, one Dual tone Melody generator, 38 KHz carrier output for IR transmission and
one ROM shared ROM.
The muti-tasking operation for voice synthesis and Dual Tone Melody generation is implemented by
dedicated H/W that can output the speech voice in parallel with the background music. The 4 bit
kernel, which executes instructions of up to 12 KIPS (Kilo-Instructions Per Second) can offer
customers a great deal of flexibility to achieve various kind of program controls for different
applications.
In addition, the W562xxx's user-friendly development environment can effectively reduce your design
period and help you easily tool your project by yourself with the W56xxx ICE and emulation kit.
There are 9 kinds of W562xxx IC bodies. (see table below)
PART NO.
Duration
PART NO.
Duration
W562S08
8 sec
W562S40
40 sec
W562S10
10 sec
W562S50
50 sec
W562S12
12 sec
W562S60
60 sec
W562S15
15 sec
W562S80
80 sec
W562S20
20 sec
W562S99
100 sec
W562S25
25 sec
W562M02
120 sec
W562S30
30 sec
Note: The voice durations are estimated by 6.4 KHz sampling rate
Possible applications are:
鈥?/div>
Programmed voice synthesis with background music or speech.
鈥?/div>
I/O interactive voice synthesis to accompany background music or speech.
鈥?/div>
Q&A games.
鈥?/div>
Edutainment toys.
鈥?/div>
Remote toys.

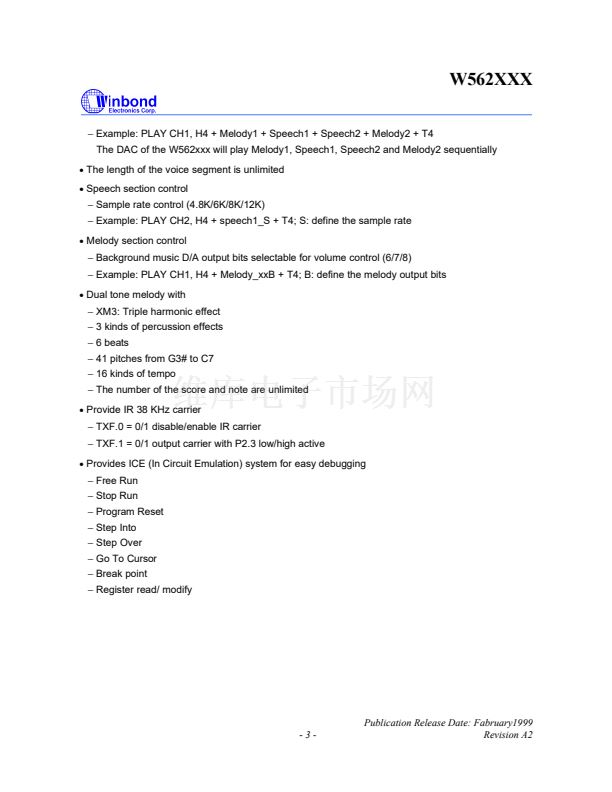

FEATURES
鈥?/div>
Multi-engine processor parallel management with
碌C,
speech and Dual Tone Melody.
鈭?碌C
// (Synthesizer1 or Dual Tone Melody) // Synthesizer2 (//: in parallel )
鈭?碌C,
with basic ALU, 64-nibble RAM (including 8 working registers) and an 8-bit timer.
鈭?/div>
Synthesizer1 capable of voice syntheses with Sample rate @ 4.8/6/8/12 KHz
鈭?/div>
Synthesizer2, same as synthesizer1.
鈭?/div>
Dual-tone Melody D/A output with 3 level volume control
-1-
Publication Release Date: Fabruary 1999
Revision A2
