W49L102Q-12 Datasheet

  • W49L102Q-12

  • EEPROM|FLASH|64KX16|CMOS|TSSOP|40PIN|PLASTIC

  • 21頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

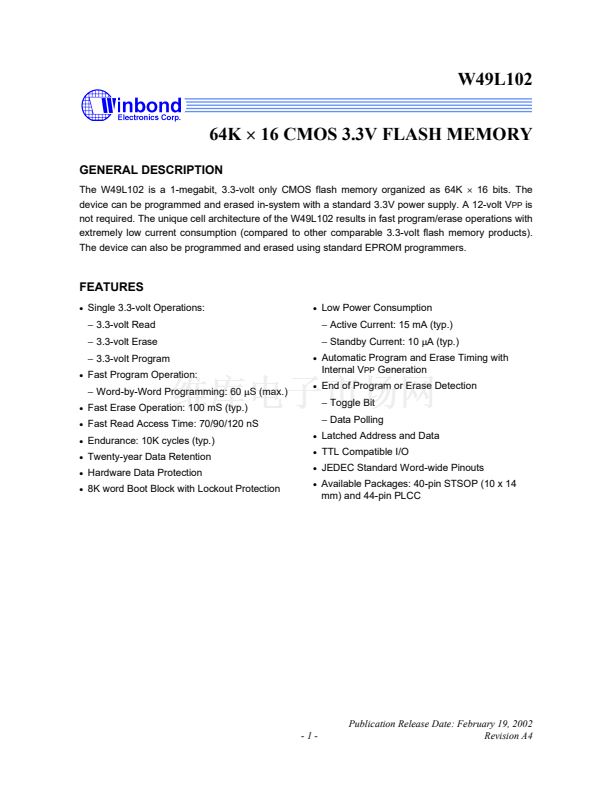

W49L102
64K
脳
16 CMOS 3.3V FLASH MEMORY
GENERAL DESCRIPTION
The W49L102 is a 1-megabit, 3.3-volt only CMOS flash memory organized as 64K
脳
16 bits. The
device can be programmed and erased in-system with a standard 3.3V power supply. A 12-volt V
PP
is
not required. The unique cell architecture of the W49L102 results in fast program/erase operations with
extremely low current consumption (compared to other comparable 3.3-volt flash memory products).
The device can also be programmed and erased using standard EPROM programmers.
FEATURES
鈥?/div>
Single 3.3-volt Operations:
鈭?/div>
3.3-volt Read
鈭?/div>
3.3-volt Erase
鈭?/div>
3.3-volt Program
鈥?/div>
Low Power Consumption
鈭?/div>
Active Current: 15 mA (typ.)
鈭?/div>
Standby Current: 10
碌A
(typ.)
鈥?/div>
鈥?/div>
鈥?/div>
Fast Program Operation:
鈭?/div>
Word-by-Word Programming: 60
碌S
(max.)
Fast Erase Operation: 100 mS (typ.)
Fast Read Access Time: 70/90/120 nS
Endurance: 10K cycles (typ.)
Twenty-year Data Retention

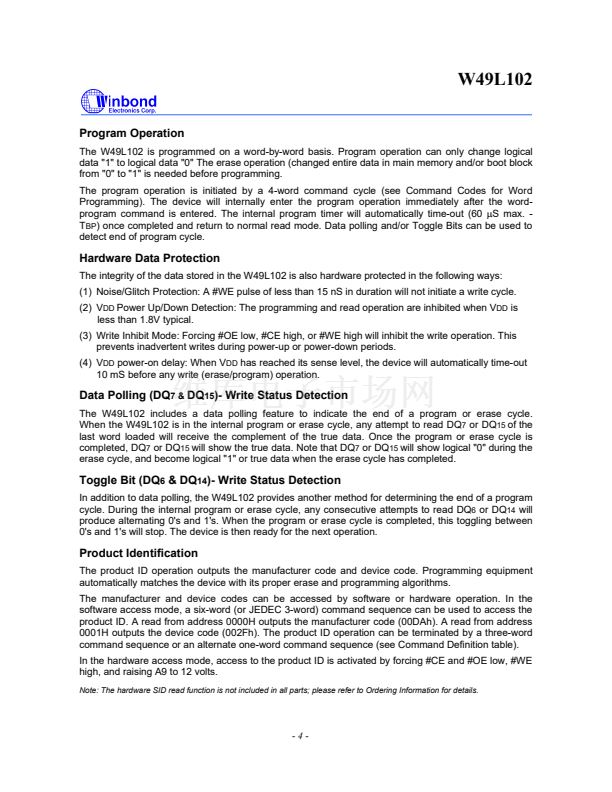

Hardware Data Protection
8K word Boot Block with Lockout Protection
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Automatic Program and Erase Timing with
Internal V
PP
Generation

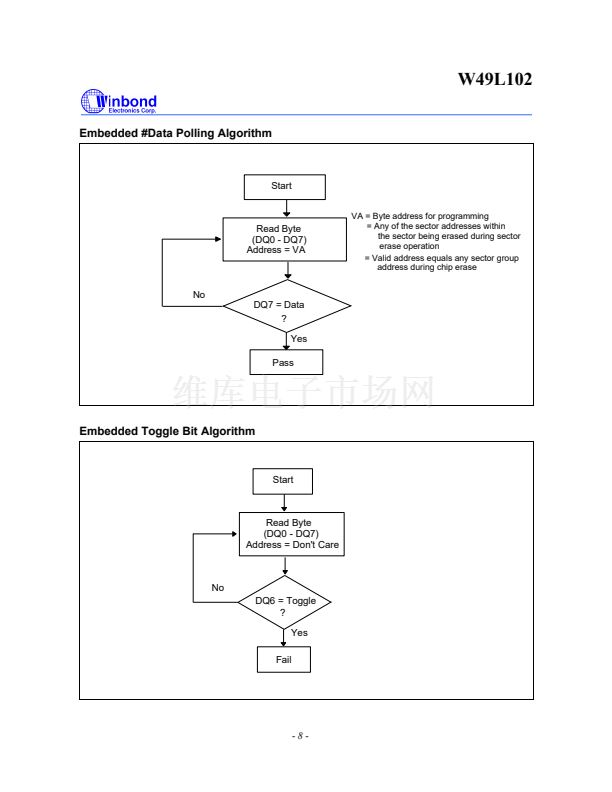

End of Program or Erase Detection
鈭?/div>
Toggle Bit
鈭?/div>
Data Polling
Latched Address and Data
TTL Compatible I/O
JEDEC Standard Word-wide Pinouts
Available Packages: 40-pin STSOP (10 x 14
mm) and 44-pin PLCC
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
-1-
Publication Release Date: February 19, 2002
Revision A4
