Feedthru 0805/1206 Capacitors
W2F/W3F Series
GENERAL DESCRIPTION
Available in both a standard 0805 and 1206 size, AVX鈥檚 line
of feedthru capacitors are ideal choices for EMI suppres-
sion, broadband I/O filtering, or Vcc power line condition-
ing. The unique construction of a feedthru capacitor pro-
vides low parallel inductance and offers excellent decou-
pling capability for all high di/dt environments and provides
significant noise reduction in digital circuits to <5 GHz. A
large range of capacitor values are available in either NP0
or X7R ceramic dielectrics.
SIGNAL LINE - INPUT
OUTPUT
W2F Series
0805
W3F Series
1206
GROUND
CAPACITOR VALUES
Part Number
W2F11A 220 8ATxx
W2F11A 470 8ATxx
W2F11A 101 8ATxx
W2F11A 221 8ATxx
W2F11A 471 8ATxx
W2F15C 102 8ATxx
W2F15C 222 8ATxx
W2F15C 472 8ATxx
W2F15C 103 8ATxx
W2F15C 223 8ATxx
W2F15C 473 8ATxx
W3F11A 220 8ATxx
W3F11A 470 8ATxx
W3F11A 101 8ATxx
W3F11A 221 8ATxx
W3F11A 471 8ATxx
W3F15C 102 8ATxx
W3F15C 222 8ATxx
W3F15C 472 8ATxx
W3F15C 103 8ATxx
W3F15C 223 8ATxx
W3F15C 473 8ATxx
Size
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
Voltage
100V
100V
100V
100V
100V
50V
50V
50V
50V
50V
50V
100V
100V
100V
100V
100V
50V
50V
50V
50V
50V
50V
Dielectric
NP0
NP0
NP0
NP0
NP0
X7R
X7R
X7R
X7R
X7R
X7R
NP0
NP0
NP0
NP0
NP0
X7R
X7R
X7R
X7R
X7R
X7R
Capacitance
22pF
47pF
100pF
220pF
470pF
1000pF
2200pF
4700pF
10000pF
22000pF
47000pF
22pF
47pF
100pF
220pF
470pF
1000pF
2200pF
4700pF
10000pF
22000pF
47000pF

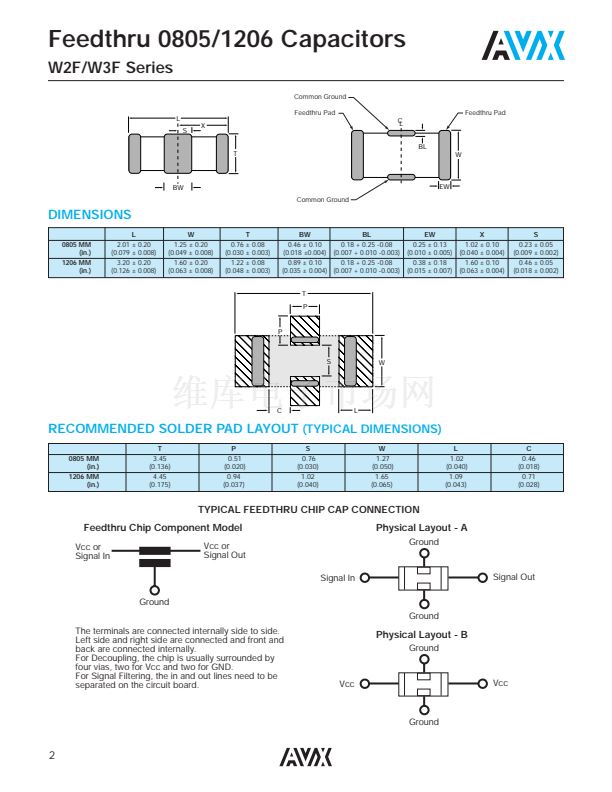

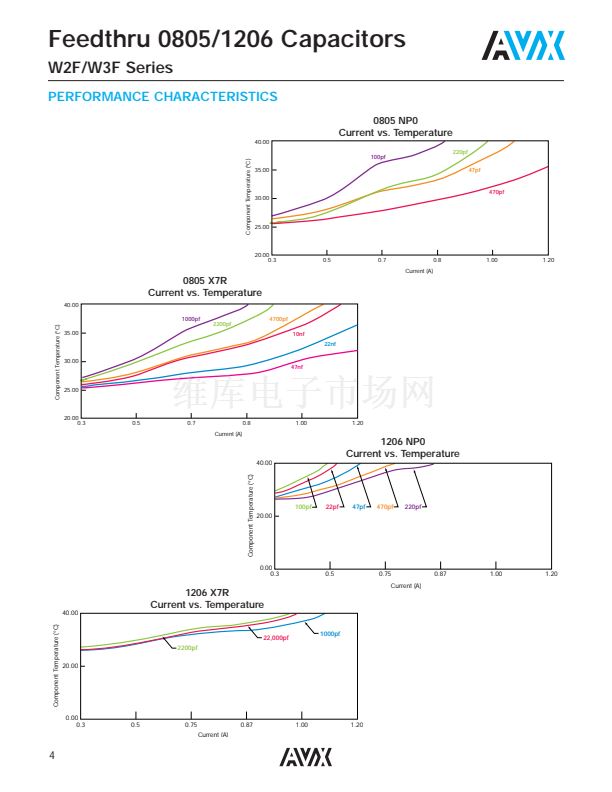

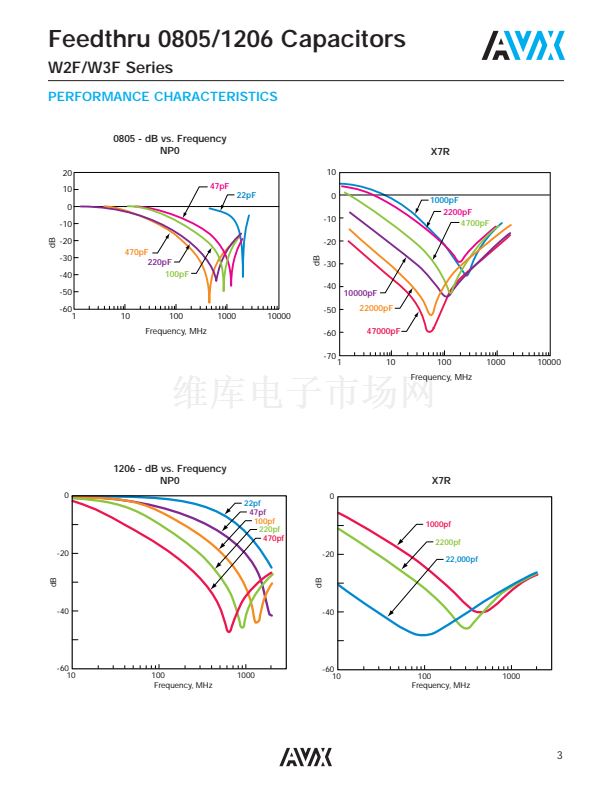

PERFORMANCE CHARACTERISTICS
Capacitance Tolerance
Voltage Rating
Current Rating
Insulation Resistance
DC Resistance
Operating Temperature Range
NP0
X7R
+50%, -20%
+50%, -20%
100V
50V
300mA
300mA
1000M鈩?/div>
1000M鈩?/div>
<0.6鈩?/div>
<0.6鈩?/div>
-55 to +125擄C
HOW TO ORDER
W
3
F
1
5
C
223
8
A
T
3
A
Style Size Feedthru Number Voltage* Dielectric Capacitance Capacitance Failure Terminations Packaging Code Quantity Code
2=0805
of
1=100v A=NP0
Code
Tolerance
Rate
T=Plated
(Reel Size)
(Pcs./Reel)
3=1206
Elements
5=50v
C=X7R
8=+50/-20% A=Not
1=7" Reel
F=1,000
Applicable
Embossed Tape
A=2,000,
3=13" Reel
4,000 or
Embossed Tape
10,000
*Note: NP0 available in 100V only and X7R available in 50V only.
