W24L010AT-10 Datasheet

  • W24L010AT-10

  • 128K X 8 High Speed CMOS Static RAM

  • 154.01KB

  • 9頁

  • WINBOND

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

W24L010A
128K
脳
8 HIGH SPEED CMOS STATIC RAM

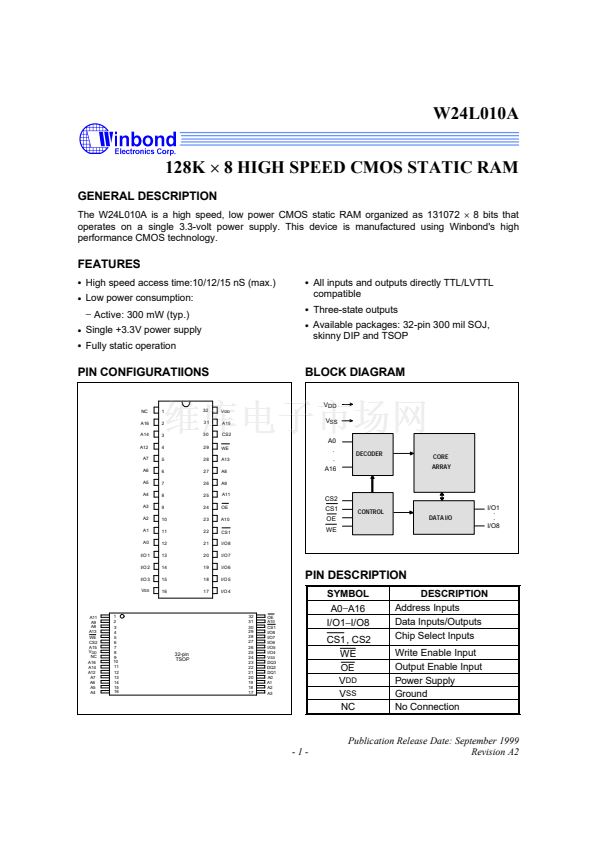

GENERAL DESCRIPTION
The W24L010A is a high speed, low power CMOS static RAM organized as 131072
脳
8 bits that
operates on a single 3.3-volt power supply. This device is manufactured using Winbond's high
performance CMOS technology.
FEATURES
鈥?/div>
鈥?/div>
High speed access time:10/12/15 nS (max.)
Low power consumption:
鈭?/div>
Active: 300 mW (typ.)
鈥?/div>
鈥?/div>
鈥?/div>
All inputs and outputs directly TTL/LVTTL
compatible
Three-state outputs
Available packages: 32-pin 300 mil SOJ,
skinny DIP and TSOP
鈥?/div>
鈥?/div>
Single +3.3V power supply
Fully static operation
PIN CONFIGURATIIONS
BLOCK DIAGRAM
V
DD
NC
A16
A14
A12
A7
A6
A5
A4
A3
A2
A1
A0
I/O 1
I/O 2
I/O 3
V
SS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
V
DD
A15
CS2
WE
A13
A8
A9
A11
OE
A10
CS1
I/O 8
I/O 7
I/O 6
I/O 5
I/O 4
V
SS
A0
.
.
A16
DECODER
CORE
C O RE
ARRAY
CS2
CS1
OE
WE
CONTROL
DATA I/O
I/O1
.
.
I/O8
PIN DESCRIPTION
SYMBOL
A0鈭扐16
I/O1鈭捍/O8
CS1, CS2
WE
OE
V
DD
V
SS
NC
DESCRIPTION
Address Inputs
Data Inputs/Outputs
Chip Select Inputs
Write Enable Input
Output Enable Input
Power Supply
Ground
No Connection
A11
A9
A8
A13
WE
CS2
A15
V
DD
NC
A16
A14
A12
A7
A6
A5
A4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32-pin
TSOP
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
OE
A10
CS1
I/O8
I/O7
I/O6
I/O5
I/O4
V
SS
DQ3
DQ2
DQ1
A0
A1
A2
A3
-1-
Publication Release Date: September 1999
Revision A2
