VSC8121QI Datasheet

  • VSC8121QI

  • 2.488GHz SONET/SDH Clock Generator

  • 178.53KB

  • 18頁

  • VITESSE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

VITESSE
SEMICONDUCTOR CORPORATION
Data Sheet
VSC8121
Features
鈥?Monolithic Phase Locked Loop
鈥?On-Chip LC Oscillator
鈥?On-Chip Loop Filter
鈥?TTL/CMOS Reference Clock
鈥?Selectable Reference
2.488GHz SONET/SDH
Clock Generator
鈥?Jitter Meets SONET OC-48 and
SDH STM-16 Requirements
鈥?High-Speed CML Clock Output
鈥?Single 3.3V Supply
鈥?Compact 10mm x 10mm 44 Pin PQFP Package
General Description
The VSC8121 is a monolithic Phase Locked Loop (PLL) based clock generator designed for telecommuni-
cations systems operating at 2.5Gb/s. The VSC8121 incorporates a reactance-based (LC) Voltage Controlled
Oscillator (VCO) with low phase noise. The PLL鈥檚 loop filter is on-chip.

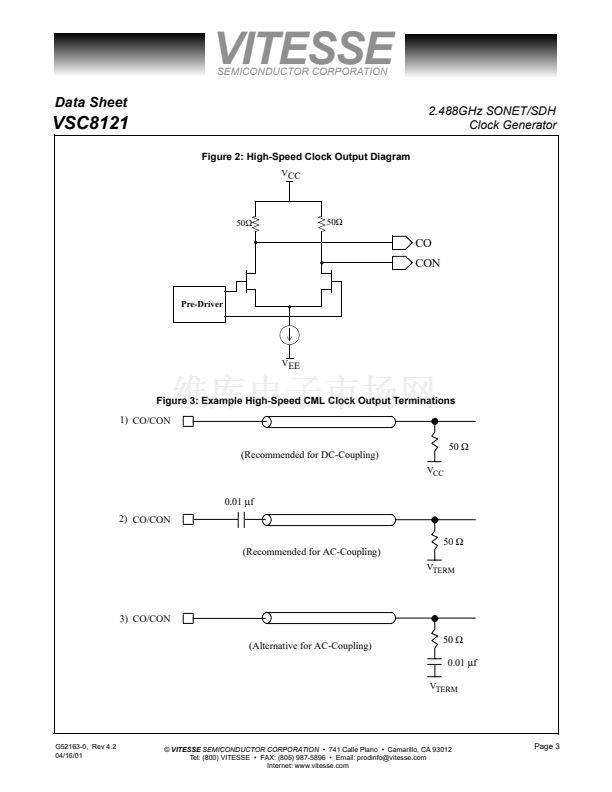

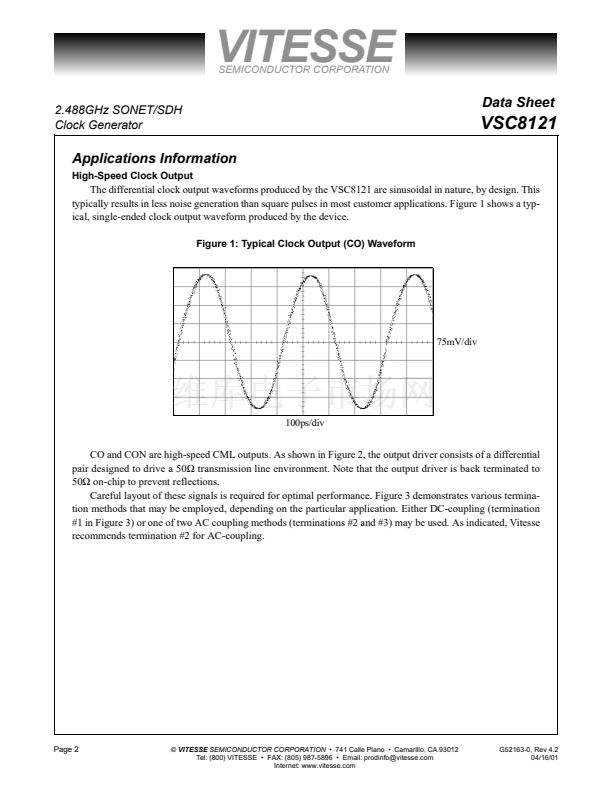

The device has a differential 2.488GHz CML clock output (CO/CON) signal, a single-ended TTL low-
speed clock (LSCLK) output equivalent in frequency to that of the reference clock, and a TTL reference clock
input selectable for 51.84MHz, 77.76MHz or 155.52MHz. TTL inputs REFSEL[0:1] are used to make this
selection.
A clean REFCLK signal is required since jitter below the PLL loop bandwidth, which is present on the
REFCLK input, will appear on the output. Jitter on REFCLK at frequencies above the loop bandwidth will be
attenuated by the PLL. The state of REFSEL[0:1] will select which frequency is expected on the REFCLK
input.
VSC8121 Functional Block Diagram
REFCLK
Ph.Freq.
Detector
Loop
Filter
VCO
CO
CON
CLOCK
OUT
LSCLK
Divider
REFSEL[0:1]
G52163-0, Rev 4.2
04/16/01
漏
VITESSE
SEMICONDUCTOR CORPORATION
鈥?741 Calle Plano 鈥?Camarillo, CA 93012
Tel: (800) VITESSE 鈥?FAX: (805) 987-5896 鈥?Email: prodinfo@vitesse.com
Internet: www.vitesse.com
Page 1
