VRE205C Datasheet

  • VRE205C

  • Precision Surface Mount Reference Supply

  • 201.31KB

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

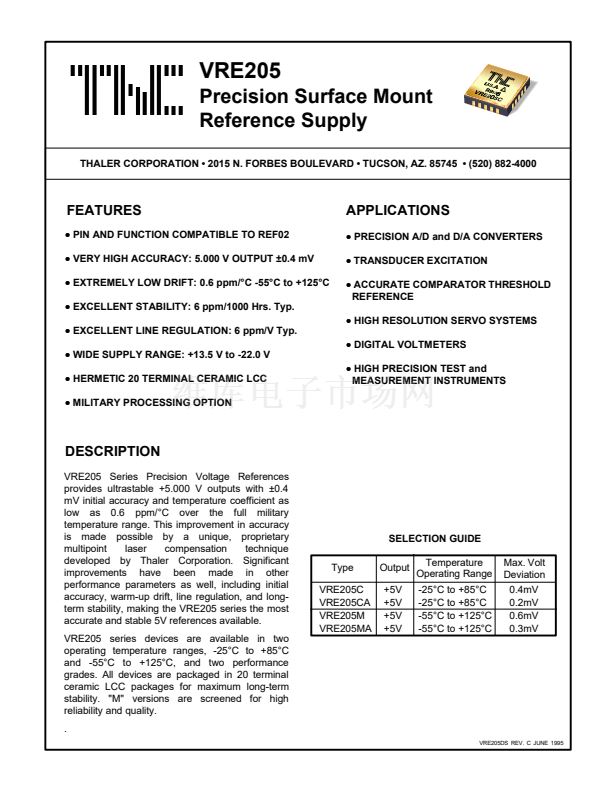

VRE205
Precision Surface Mount
Reference Supply
THALER CORPORATION 鈥?2015 N. FORBES BOULEVARD 鈥?TUCSON, AZ. 85745 鈥?(520) 882-4000
FEATURES
鈥?/div>
PIN AND FUNCTION COMPATIBLE TO REF02
鈥?/div>
VERY HIGH ACCURACY: 5.000 V OUTPUT 鹵0.4 mV
鈥?/div>
EXTREMELY LOW DRIFT: 0.6 ppm/擄C -55擄C to +125擄C
鈥?/div>
EXCELLENT STABILITY: 6 ppm/1000 Hrs. Typ.
鈥?/div>
EXCELLENT LINE REGULATION: 6 ppm/V Typ.
鈥?/div>
WIDE SUPPLY RANGE: +13.5 V to -22.0 V
鈥?/div>
HERMETIC 20 TERMINAL CERAMIC LCC
鈥?/div>
MILITARY PROCESSING OPTION
APPLICATIONS
鈥?/div>
PRECISION A/D and D/A CONVERTERS
鈥?/div>
TRANSDUCER EXCITATION
鈥?/div>
ACCURATE COMPARATOR THRESHOLD
REFERENCE
鈥?/div>
HIGH RESOLUTION SERVO SYSTEMS
鈥?/div>
DIGITAL VOLTMETERS
鈥?/div>
HIGH PRECISION TEST and
MEASUREMENT INSTRUMENTS
DESCRIPTION
VRE205 Series Precision Voltage References
provides ultrastable +5.000 V outputs with 鹵0.4
mV initial accuracy and temperature coefficient as
low as 0.6 ppm/擄C over the full military
temperature range. This improvement in accuracy
is made possible by a unique, proprietary
multipoint
laser
compensation
technique
developed by Thaler Corporation. Significant
improvements have been made in other
performance parameters as well, including initial
accuracy, warm-up drift, line regulation, and long-
term stability, making the VRE205 series the most
accurate and stable 5V references available.
VRE205 series devices are available in two
operating temperature ranges, -25擄C to +85擄C
and -55擄C to +125擄C, and two performance
grades. All devices are packaged in 20 terminal
ceramic LCC packages for maximum long-term
stability. "M" versions are screened for high
reliability and quality.
.
VRE205DS REV. C JUNE 1995
SELECTION GUIDE
Type
VRE205C
VRE205CA
VRE205M
VRE205MA
Output
+5V
+5V
+5V
+5V
Temperature
Operating Range
-25擄C to +85擄C
-25擄C to +85擄C
-55擄C to +125擄C
-55擄C to +125擄C
Max. Volt
Deviation
0.4mV
0.2mV
0.6mV
0.3mV

VRE205C 產品屬性

  • Cirrus Logic

  • 基準電壓& 基準電流

  • Voltage References

  • Series References

  • Programmable

  • +/- 5 V

  • 0.9 mV

  • 22 V

  • 8 mA

  • + 85 C

  • CLCC-20

  • - 25 C

  • SMD/SMT
