V7PB-10A33S Datasheet

  • V7PB-10A33S

  • Non-Isolated DC/DC Converters

  • 22頁

  • ETC

掃碼查看芯片數(shù)據手冊

上傳產品規(guī)格書

PDF預覽

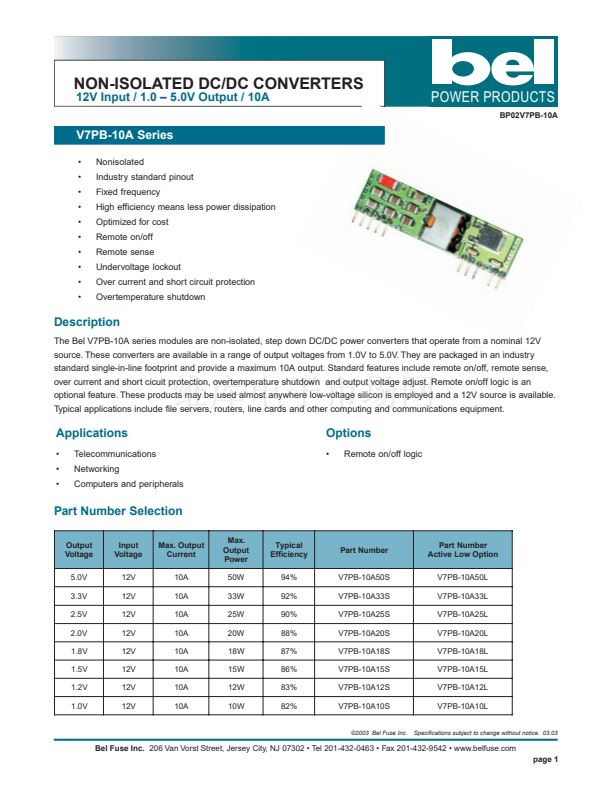

NON-ISOLATED DC/DC CONVERTERS
12V Input / 1.0 鈥?5.0V Output / 10A
V7PB-10A Series
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Nonisolated
Industry standard pinout
Fixed frequency
High efficiency means less power dissipation
Optimized for cost
Remote on/off
Remote sense
Undervoltage lockout
Over current and short circuit protection
Overtemperature shutdown
POWER PRODUCTS
BP02V7PB-10A
Description
The Bel V7PB-10A series modules are non-isolated, step down DC/DC power converters that operate from a nominal 12V
source. These converters are available in a range of output voltages from 1.0V to 5.0V. They are packaged in an industry
standard single-in-line footprint and provide a maximum 10A output. Standard features include remote on/off, remote sense,
over current and short cicuit protection, overtemperature shutdown and output voltage adjust. Remote on/off logic is an
optional feature. These products may be used almost anywhere low-voltage silicon is employed and a 12V source is available.
Typical applications include file servers, routers, line cards and other computing and communications equipment.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
Telecommunications
Networking
Computers and peripherals
Options
鈥?/div>
Remote on/off logic
Part Number Selection
Output
Voltage
5.0V
3.3V
2.5V
2.0V
1.8V
1.5V
1.2V
1.0V
Input
Voltage
12V
12V
12V
12V
12V
12V
12V
12V
Max. Output
Current
10A
10A
10A
10A
10A
10A
10A
10A
Max.
Output
Power
50W
33W
25W
20W
18W
15W
12W
10W
Typical
Efficiency
94%
92%
90%
88%
87%
86%
83%
82%
Part Number
Part Number
Active Low Option
V7PB-10A50L
V7PB-10A33L
V7PB-10A25L
V7PB-10A20L
V7PB-10A18L
V7PB-10A15L
V7PB-10A12L
V7PB-10A10L
V7PB-10A50S
V7PB-10A33S
V7PB-10A25S
V7PB-10A20S
V7PB-10A18S
V7PB-10A15S
V7PB-10A12S
V7PB-10A10S
漏2003 Bel Fuse Inc.
Specifications subject to change without notice. 03.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
page 1
