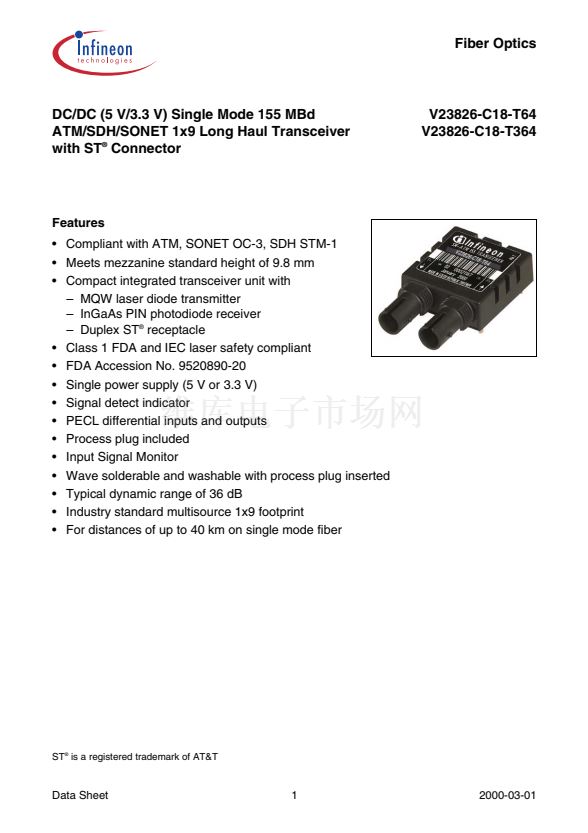

Fiber Optics

DC/DC (5 V/3.3 V) Single Mode 155 MBd

ATM/SDH/SONET 1x9 Long Haul Transceiver

with ST

廬

Connector

V23826-C18-T64

V23826-C18-T364

Features

鈥?Compliant with ATM, SONET OC-3, SDH STM-1

鈥?Meets mezzanine standard height of 9.8 mm

鈥?Compact integrated transceiver unit with

鈥?MQW laser diode transmitter

鈥?InGaAs PIN photodiode receiver

鈥?Duplex ST

廬

receptacle

鈥?Class 1 FDA and IEC laser safety compliant

鈥?FDA Accession No. 9520890-20

鈥?Single power supply (5 V or 3.3 V)

鈥?Signal detect indicator

鈥?PECL differential inputs and outputs

鈥?Process plug included

鈥?Input Signal Monitor

鈥?Wave solderable and washable with process plug inserted

鈥?Typical dynamic range of 36 dB

鈥?Industry standard multisource 1x9 footprint

鈥?For distances of up to 40 km on single mode fiber

V238

26-C

18 - T

64

ST

廬

is a registered trademark of AT&T

Data Sheet

1

2000-03-01
