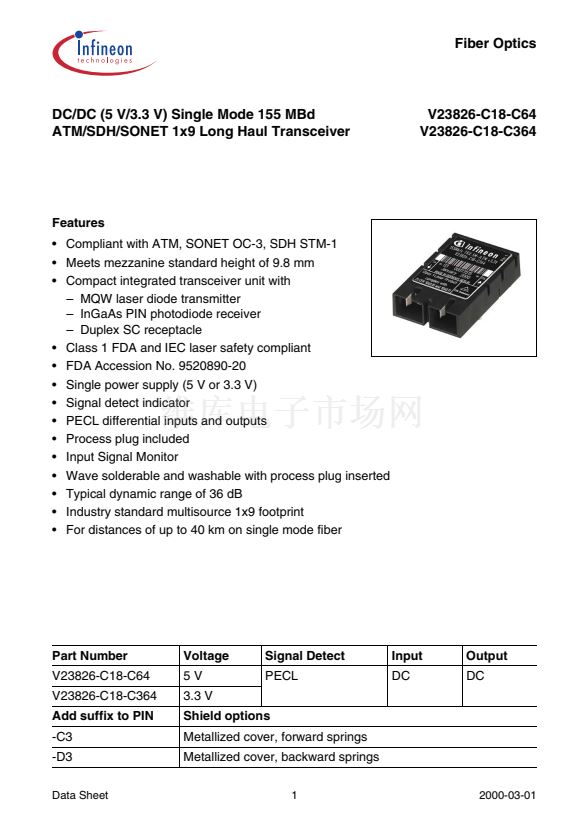

Fiber Optics
DC/DC (5 V/3.3 V) Single Mode 155 MBd
ATM/SDH/SONET 1x9 Long Haul Transceiver
V23826-C18-C64
V23826-C18-C364
Features
鈥?Compliant with ATM, SONET OC-3, SDH STM-1
鈥?Meets mezzanine standard height of 9.8 mm
鈥?Compact integrated transceiver unit with
鈥?MQW laser diode transmitter
鈥?InGaAs PIN photodiode receiver
鈥?Duplex SC receptacle
鈥?Class 1 FDA and IEC laser safety compliant
鈥?FDA Accession No. 9520890-20
鈥?Single power supply (5 V or 3.3 V)
鈥?Signal detect indicator
鈥?PECL differential inputs and outputs
鈥?Process plug included
鈥?Input Signal Monitor
鈥?Wave solderable and washable with process plug inserted
鈥?Typical dynamic range of 36 dB
鈥?Industry standard multisource 1x9 footprint
鈥?For distances of up to 40 km on single mode fiber
Part Number
V23826-C18-C64
V23826-C18-C364
Add suffix to PIN
-C3
-D3
Data Sheet
Voltage
5V
3.3 V
Signal Detect
PECL
Input
DC
Output
DC
Shield options

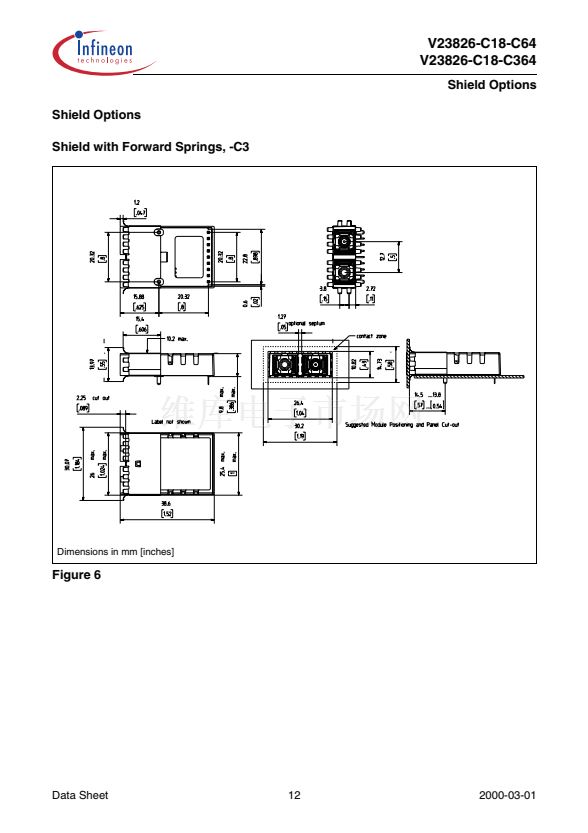

Metallized cover, forward springs

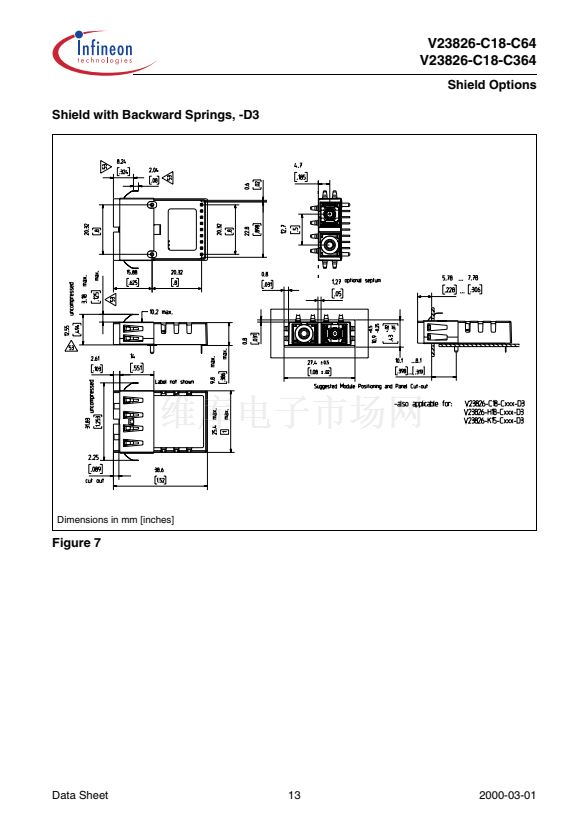

Metallized cover, backward springs
1
2000-03-01
