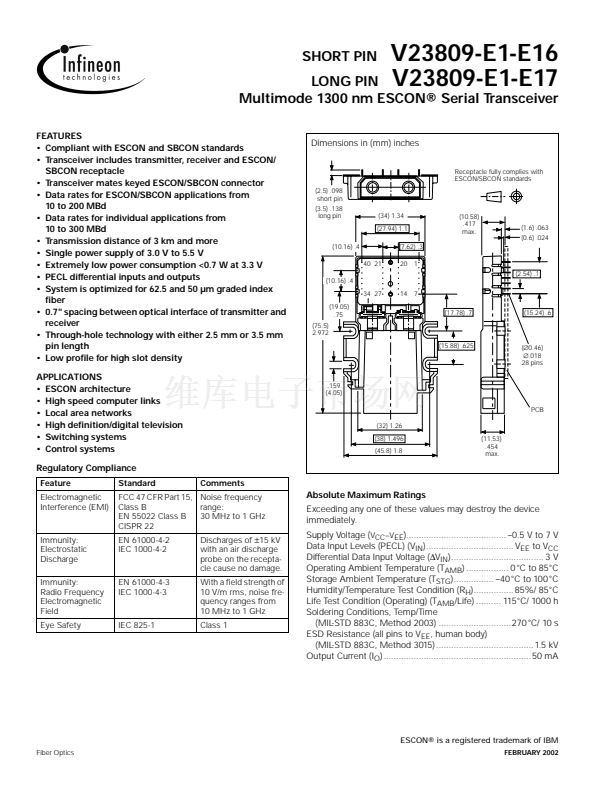

V23809-E1-E16 Datasheet

  • V23809-E1-E16

  • FIBER OPTIC TRANSCEIVER

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

SHORT PIN
LONG PIN
Multimode 1300 nm ESCON廬 Serial Transceiver
FEATURES
鈥?Compliant with ESCON and SBCON standards
鈥?Transceiver includes transmitter, receiver and ESCON/
SBCON receptacle
鈥?Transceiver mates keyed ESCON/SBCON connector
鈥?Data rates for ESCON/SBCON applications from
10 to 200 MBd
鈥?Data rates for individual applications from
10 to 300 MBd
鈥?Transmission distance of 3 km and more
鈥?Single power supply of 3.0 V to 5.5 V
鈥?Extremely low power consumption <0.7 W at 3.3 V
鈥?PECL differential inputs and outputs
鈥?System is optimized for 62.5 and 50 碌m graded index
fiber
鈥?0.7" spacing between optical interface of transmitter and
receiver
鈥?Through-hole technology with either 2.5 mm or 3.5 mm
pin length
鈥?Low profile for high slot density
APPLICATIONS
鈥?ESCON architecture
鈥?High speed computer links
鈥?Local area networks
鈥?High definition/digital television
鈥?Switching systems
鈥?Control systems
Regulatory Compliance
Feature
Electromagnetic
Interference (EMI)
Standard
Comments
FCC 47 CFR Part 15, Noise frequency
Class B
range:
EN 55022 Class B
30 MHz to 1 GHz
CISPR 22
EN 61000-4-2
IEC 1000-4-2
Discharges of
鹵15
kV
with an air discharge
probe on the recepta-
cle cause no damage.
With a field strength of
10 V/m rms, noise fre-
quency ranges from
10 MHz to 1 GHz
Class 1
V23809-E1-E16
V23809-E1-E17
Dimensions in (mm) inches
Receptacle fully complies with
ESCON/SBCON standards
(2.5) .098
short pin
(3.5) .138
long pin
(34) 1.34
(27.94) 1.1
(10.58)
.417
max.
(1.6) .063
(0.6) .024
(10.16) .4
40 21
(10.16) .4
34 27
(19.05)
.75
(75.5)
2.972
(7.62) .3
20 1
(2.54) .1
14 7
(17.78) .7
(15.24) .6
(15.88) .625
(
鈭?/div>
0.46)
鈭?/div>
.018
28 pins
.159
(4.05)
PCB
(32) 1.26
(38) 1.496
(45.8) 1.8
(11.53)
.454
max.
Absolute Maximum Ratings
Exceeding any one of these values may destroy the device
immediately.
Supply Voltage (
VCC鈥揤EE
)........................................ 鈥?.5 V to 7 V
Data Input Levels (PECL) (V
IN
)................................... V
EE
to V
CC
Differential Data Input Voltage (鈭哣
IN
)..................................... 3 V
Operating Ambient Temperature (T
AMB
) ................. 0擄C to 85擄C
Storage Ambient Temperature (T
STG
)................ 鈥?0擄C to 100擄C
Humidity/Temperature Test Condition (R
H
)................ 85%/ 85擄C
Life Test Condition (Operating) (T
AMB
/Life) .......... 115擄C/ 1000 h
Soldering Conditions, Temp/Time
(MIL
-STD 883C, Method 2003) .............................270 擄C/ 10 s
ESD Resistance (all pins to V
EE
, human body)
(MIL
-STD 883C, Method 3015) ....................................... 1.5 kV
Output Current (I
O
) ........................................................... 50 mA
Immunity:
Electrostatic
Discharge
Immunity:
Radio Frequency
Electromagnetic
Field
Eye Safety
EN 61000-4-3
IEC 1000-4-3
IEC 825-1
ESCON廬 is a registered trademark of IBM
Fiber Optics
FEBRUARY 2002
