V23806-S84-Z4 Datasheet

  • V23806-S84-Z4

  • Testboard for ATM, ESCON, Fibre Channel and Gigabit Ethernet...

  • 5頁

  • INFINEON   INFINEON

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

V23806-S84-Z3
3.3 V
V23806-S84-Z4
5V
Testboard for ATM, ESCON, Fibre Channel and
Gigabit Ethernet 1x9 Transceivers
FEATURES
鈥?/div>
Allows for separate powering of receiver and transmitter sec-
tion
鈥?/div>
Power supply lines filtered externally to module under test
鈥?/div>
Signal Detect level displayed by LED
鈥?/div>
Power supply can be interrupted separately for receiver and
transmitter
鈥?/div>
External Data and Signal Detect interfaces are made through
high performance SMA connectors
鈥?Receiver data outputs are DC coupled. Output voltage can be
directly measured at SMA connectors

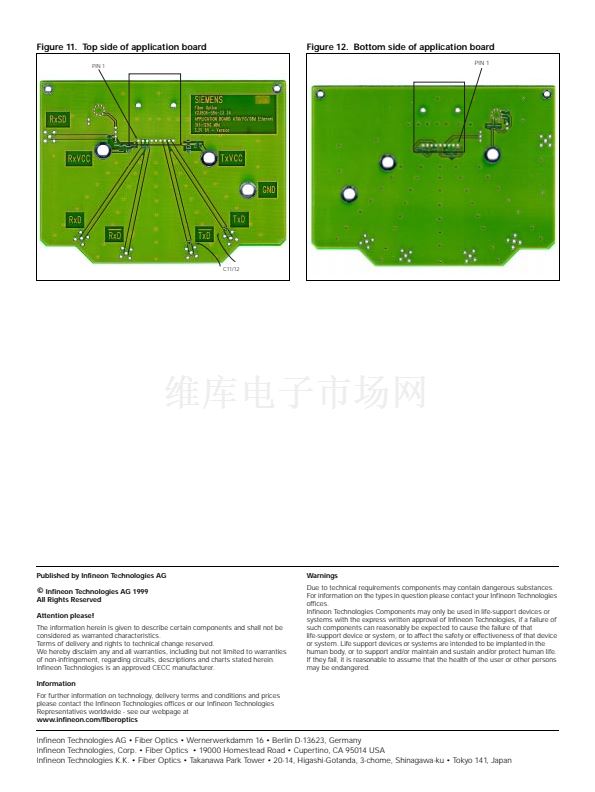

Figure 1. Application board (Top view)
DESCRIPTION
This testboard is a functional test fixture intended for use with
the 1x9 pin row single mode 155MBd or 622MBd ATM trans-
ceiver, ESCON, Fibre Channel and Gigabit Ethernet transceiv-
ers. It provides a test medium for characterizing the
performance of these transceivers.

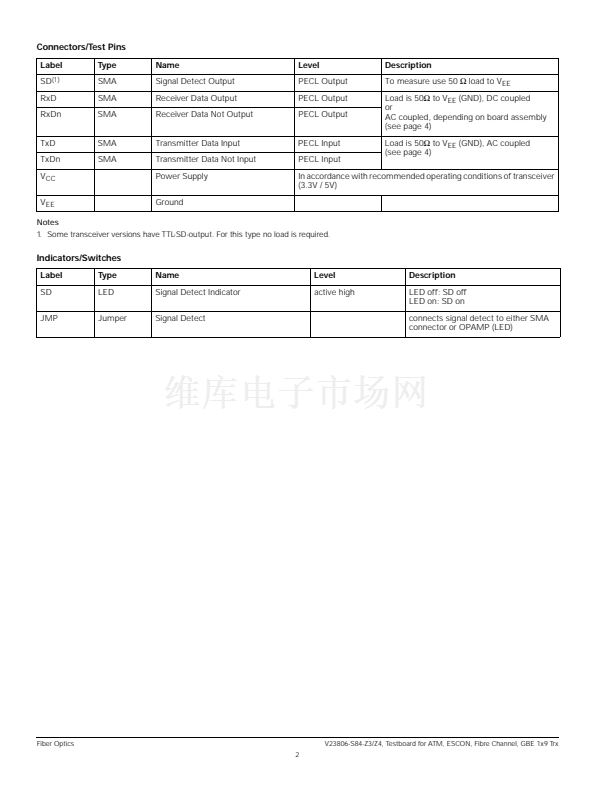

SMA-connector (female)
Infineon
RxSD
Fiber Optics
V23806-S84-Z3/Z4
APPLICATION BOARD ATM/ESCON/FC/GBd Ethernet
155-1250 MBd
3.3 V/5 V - Version
Power supply connector
(female)
LED (red)
3-Pin jumper, to measure
and to interrupt receiver/
transmitter power supply
RxVCC
TxVCC
GND
RxD
RxD
TxD
TxD
Fiber Optics
NOVEMBER 1999
