V14B5D7A-X0090 Datasheet

  • V14B5D7A-X0090

  • VALVE 5/2 PILOT/SOL

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Nugget 120 V14 Series
5/2 & 5/3 Valves
Solenoid and Pilot Operated
G
1
鈦?/div>
4
q
High flow compact valves
q
Sub-base and low profile manifolds
q
Light weight, long life corrosion resistant materials
q
Multipole and Fieldbus compatible
q
Flexible single step expansion
Technical Data
Medium:
Compressed air, filtered to 40碌m, lubricated or non-lubricated
Operation:
Spool valve, indirectly actuated. Cylinder ports in valve or base
Mounting:
On sub-base or manifold
Port Size:
G
1
/
4
Operating Pressure:
Maximum 10 bar. For details see overleaf
Flow Characteristics:
Size Function 鈥楥鈥?/div>
鈥榖鈥?/div>
鈥楢鈥?/div>
l/min
Cv
Kv
1
/
4
G
5/2
4,92
0,23 17,31 1152
1,17
1,02
1
/
4
5/3 APB 3,76
0,14 13,95 1014
1,03
0,90
G
Ambient Temperature:
-20藲C to +80藲C Pilot models
-20藲C to +50藲C Solenoid models
*
Consult our Technical Service for use below +2藲C
Materials
Aluminium alloy body. Glass filled PA (nylon) or glass filled PPS
(polyphenylene sulphide) end caps. Glass filled PBT
(polybutylene terephthalate) solenoid adapters aluminium alloy
pistons and spool with HNBR (hydrogenated nitrile) seals.
Aluminium alloy Sub-bases and Manifolds with NBR (nitrile
butadiene) gaskets.

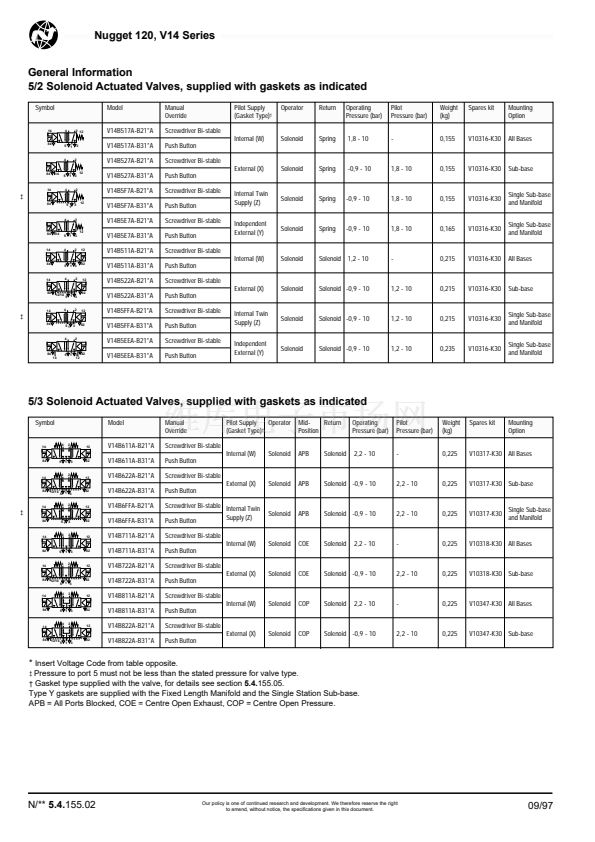

Ordering Information
To order, quote model number and voltage
code from tables overleaf, e.g. V14B517A-
B213A for a Solenoid Pilot Actuated, Spring
Return model fitted wIth a 24 V d.c. coil and
screwdriver operated manual override.
5/2
5/2 Twin Supply
5/3
All ports blocked mid
position
5/3
Centre open exhaust
mid position
14
12
For further technical data on Multipole Systems and complete
Valve Islands see Section 5.4.156
04/97
Our policy is one of continued research and development. We therefore reserve the right
to amend, without notice, the specifications given in this document.
5 4 1
2 3
N/**
5.4.155.01
