UT1030 Datasheet

  • UT1030

  • Three-Terminal Low Standby Current Voltage Regulator

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

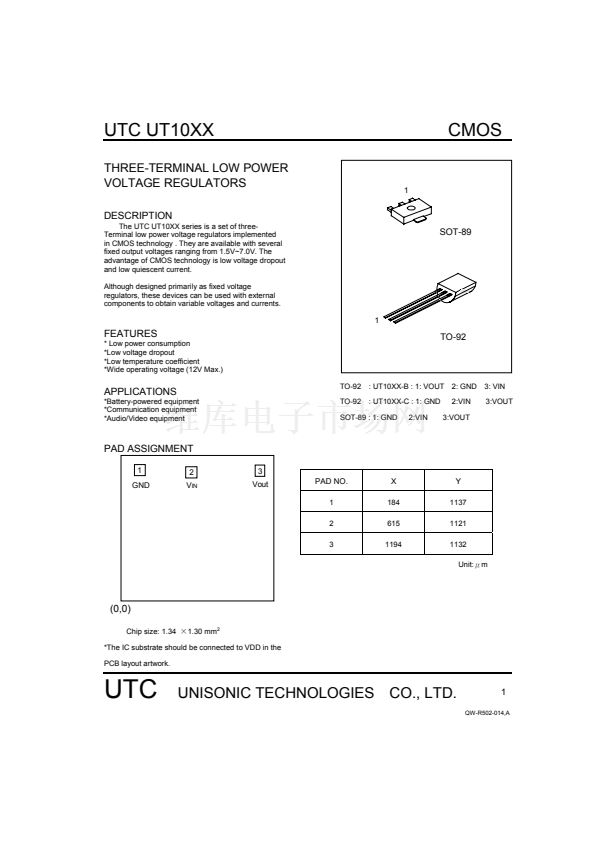

UTC UT10XX
THREE-TERMINAL LOW POWER
VOLTAGE REGULATORS
DESCRIPTION
The UTC UT10XX series is a set of three-
Terminal low power voltage regulators implemented
in CMOS technology . They are available with several
fixed output voltages ranging from 1.5V~7.0V. The
advantage of CMOS technology is low voltage dropout
and low quiescent current.
Although designed primarily as fixed voltage
regulators, these devices can be used with external
components to obtain variable voltages and currents.
CMOS
1
SOT-89
1
FEATURES
* Low power consumption
*Low voltage dropout
*Low temperature coefficient
*Wide operating voltage (12V Max.)
TO-92
APPLICATIONS
*Battery-powered equipment
*Communication equipment
*Audio/Video equipment
TO-92
TO-92
: UT10XX-B : 1: VOUT
: UT10XX-C : 1: GND
2:VIN
2: GND
2:VIN
3: VIN
3:VOUT
SOT-89 : 1: GND
3:VOUT
PAD ASSIGNMENT
1
GND
2
V
IN
3
Vout
PAD NO.
1
2
3
X
184
615
1194
Y
1137
1121
1132
Unit:渭m
(0,0)
Chip size: 1.34
脳1.30
mm
2
*The IC substrate should be connected to VDD in the
PCB layout artwork.
UTC
UNISONIC TECHNOLOGIES CO., LTD.
1
QW-R502-014,A
