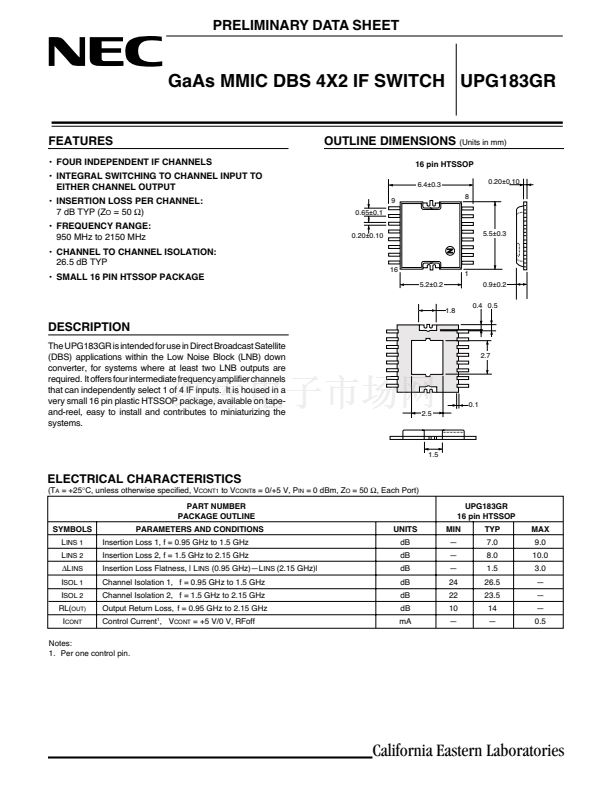

PRELIMINARY DATA SHEET
GaAs MMIC DBS 4X2 IF SWITCH UPG183GR
FEATURES
鈥?FOUR INDEPENDENT IF CHANNELS
鈥?INTEGRAL SWITCHING TO CHANNEL INPUT TO
EITHER CHANNEL OUTPUT
鈥?INSERTION LOSS PER CHANNEL:
7 dB TYP (Z
O
= 50
鈩?
鈥?FREQUENCY RANGE:
950 MHz to 2150 MHz
鈥?CHANNEL TO CHANNEL ISOLATION:
26.5 dB TYP
鈥?SMALL 16 PIN HTSSOP PACKAGE
OUTLINE DIMENSIONS
(Units in mm)
16 pin HTSSOP
6.4鹵0.3
9
0.65鹵0.1
0.20鹵0.10
5.5鹵0.3
8
0.20鹵0.10
16
5.2鹵0.2
N
1
0.9鹵0.2
0.4 0.5
1.8
DESCRIPTION
The UPG183GR is intended for use in Direct Broadcast Satellite
(DBS) applications within the Low Noise Block (LNB) down
converter, for systems where at least two LNB outputs are
required. It offers four intermediate frequency amplifier channels
that can independently select 1 of 4 IF inputs. It is housed in a
very small 16 pin plastic HTSSOP package, available on tape-
and-reel, easy to install and contributes to miniaturizing the
systems.
2.7
0.1
2.5
1.5
ELECTRICAL CHARACTERISTICS
(T
A
= +25擄C, unless otherwise specified, V
CONT1
to V
CONT8
= 0/+5 V, P
IN
= 0 dBm, Z
O
= 50
鈩?
Each Port)
PART NUMBER
PACKAGE OUTLINE
SYMBOLS
L
INS 1
L
INS 2
鈭哃
INS
I
SOL 1
I
SOL 2
RL(
OUT)
I
CONT
PARAMETERS AND CONDITIONS
Insertion Loss 1, f = 0.95 GHz to 1.5 GHz
Insertion Loss 2, f = 1.5 GHz to 2.15 GHz
Insertion Loss Flatness, | L
INS
(0.95 GHz)鈥擫
INS
(2.15 GHz)|
Channel Isolation 1, f = 0.95 GHz to 1.5 GHz
Channel Isolation 2, f = 1.5 GHz to 2.15 GHz
Output Return Loss, f = 0.95 GHz to 2.15 GHz
Control Current , V
CONT
= +5 V/0 V, RFoff
1
UPG183GR
16 pin HTSSOP
UNITS
dB
dB
dB
dB
dB
dB
mA
MIN
鈥?/div>
鈥?/div>
鈥?/div>
24
22
10
鈥?/div>
TYP
7.0
8.0
1.5
26.5
23.5
14
鈥?/div>
MAX
9.0
10.0
3.0
鈥?/div>
鈥?/div>
鈥?/div>
0.5
Notes:
1. Per one control pin.
