UPD754202GSA Datasheet

  • UPD754202GSA

  • 4-BIT SINGLE-CHIP MICROCONTROLLERS

  • 66頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

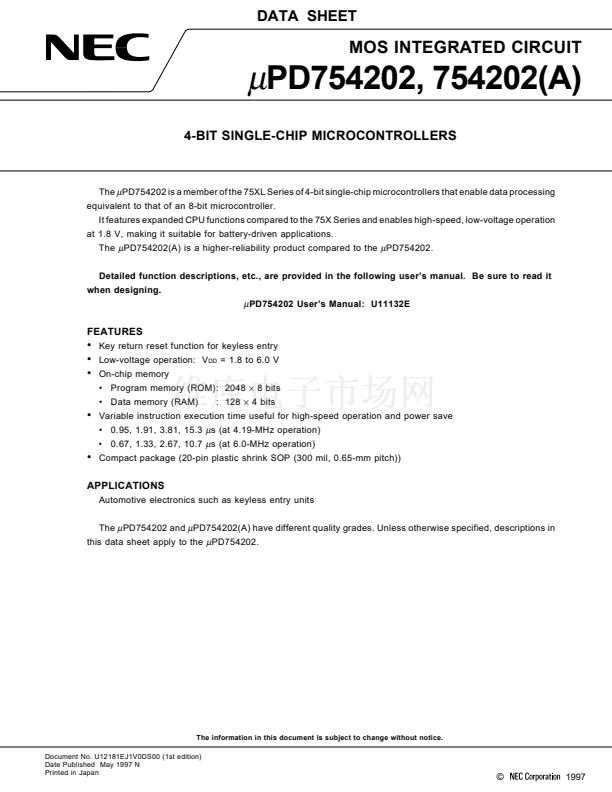

DATA SHEET
碌
PD754202, 754202(A)
4-BIT SINGLE-CHIP MICROCONTROLLERS
MOS INTEGRATED CIRCUIT
The
碌
PD754202 is a member of the 75XL Series of 4-bit single-chip microcontrollers that enable data processing
equivalent to that of an 8-bit microcontroller.
It features expanded CPU functions compared to the 75X Series and enables high-speed, low-voltage operation
at 1.8 V, making it suitable for battery-driven applications.
The
碌
PD754202(A) is a higher-reliability product compared to the
碌
PD754202.
Detailed function descriptions, etc., are provided in the following user鈥檚 manual. Be sure to read it
when designing.
碌
PD754202 User鈥檚 Manual: U11132E
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
Key return reset function for keyless entry
Low-voltage operation: V
DD
= 1.8 to 6.0 V

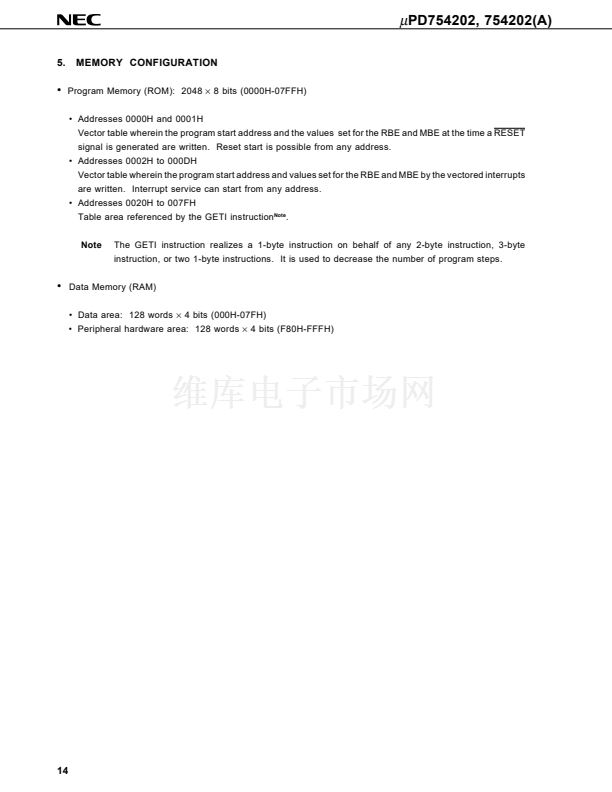

On-chip memory
鈥?Program memory (ROM): 2048
脳
8 bits
鈥?Data memory (RAM)
: 128
脳
4 bits
鈥?/div>
Variable instruction execution time useful for high-speed operation and power save
鈥?0.95, 1.91, 3.81, 15.3
碌
s (at 4.19-MHz operation)
鈥?0.67, 1.33, 2.67, 10.7
碌
s (at 6.0-MHz operation)
鈥?/div>

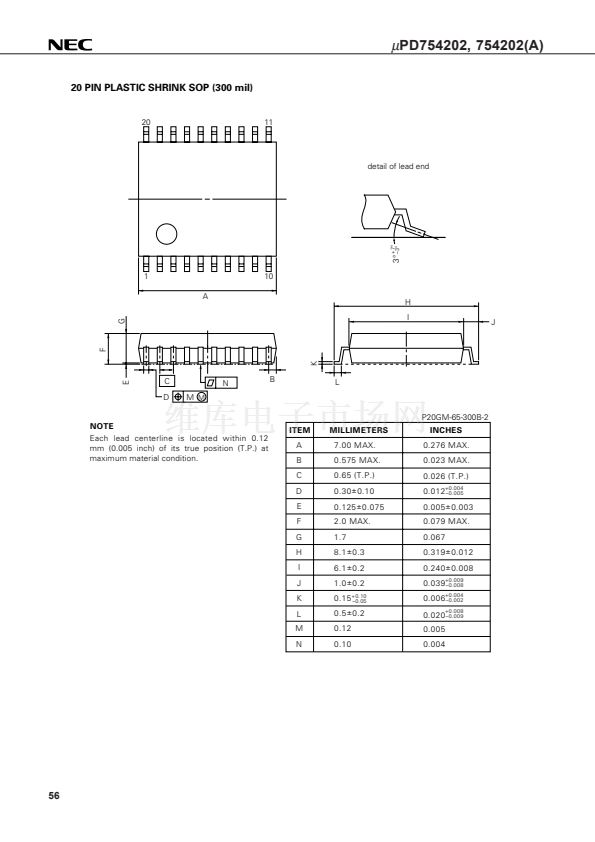

Compact package (20-pin plastic shrink SOP (300 mil, 0.65-mm pitch))
APPLICATIONS
Automotive electronics such as keyless entry units
The
碌
PD754202 and
碌
PD754202(A) have different quality grades. Unless otherwise specified, descriptions in
this data sheet apply to the
碌
PD754202.
The information in this document is subject to change without notice.
Document No. U12181EJ1V0DS00 (1st edition)
Date Published May 1997 N
Printed in Japan
漏
1997
