UPD753208GT Datasheet

  • UPD753208GT

  • 4-BIT SINGLE-CHIP MICROCONTROLLERS

  • 80頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

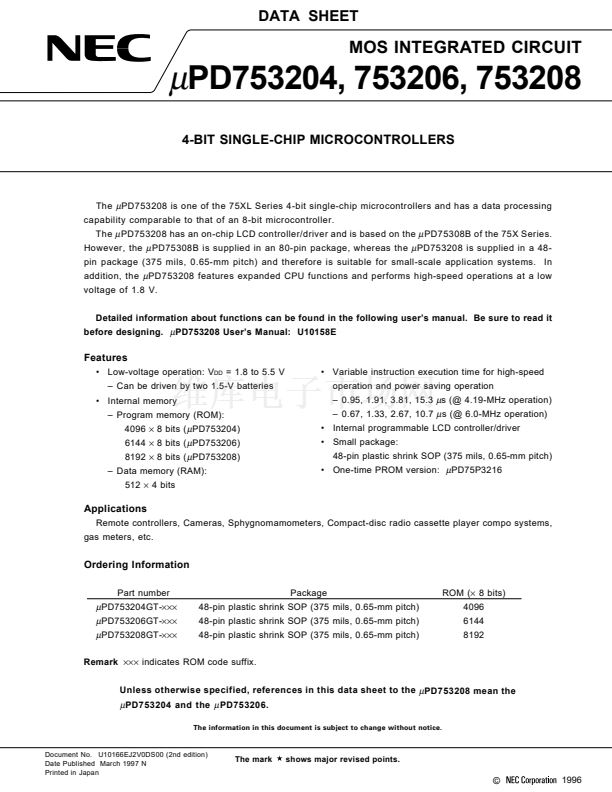

DATA SHEET
碌
PD753204, 753206, 753208
4-BIT SINGLE-CHIP MICROCONTROLLERS
MOS INTEGRATED CIRCUIT
The
碌
PD753208 is one of the 75XL Series 4-bit single-chip microcontrollers and has a data processing
capability comparable to that of an 8-bit microcontroller.
The
碌
PD753208 has an on-chip LCD controller/driver and is based on the
碌
PD75308B of the 75X Series.
However, the
碌
PD75308B is supplied in an 80-pin package, whereas the
碌
PD753208 is supplied in a 48-
pin package (375 mils, 0.65-mm pitch) and therefore is suitable for small-scale application systems. In
addition, the
碌
PD753208 features expanded CPU functions and performs high-speed operations at a low
voltage of 1.8 V.
Detailed information about functions can be found in the following user鈥檚 manual. Be sure to read it
before designing.
碌
PD753208 User鈥檚 Manual: U10158E
Features
鈥?Low-voltage operation: V
DD
= 1.8 to 5.5 V
鈥?Can be driven by two 1.5-V batteries

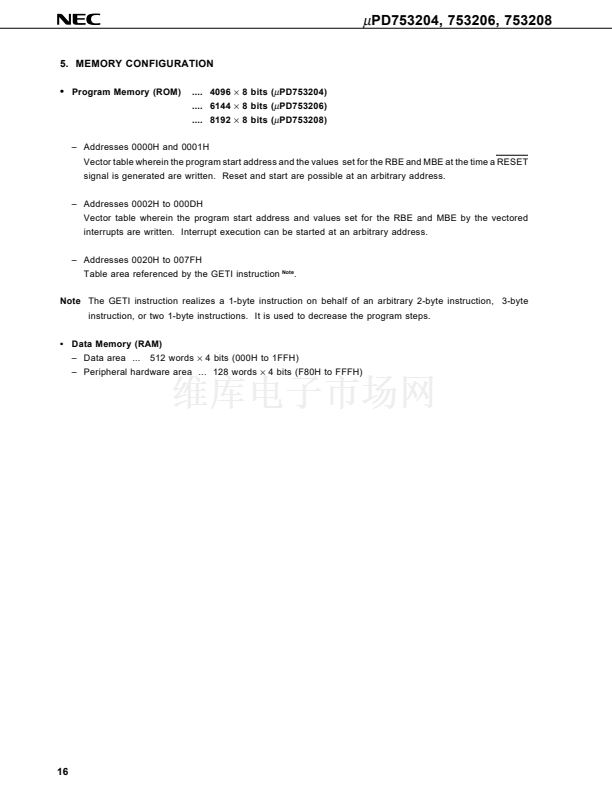

鈥?Internal memory

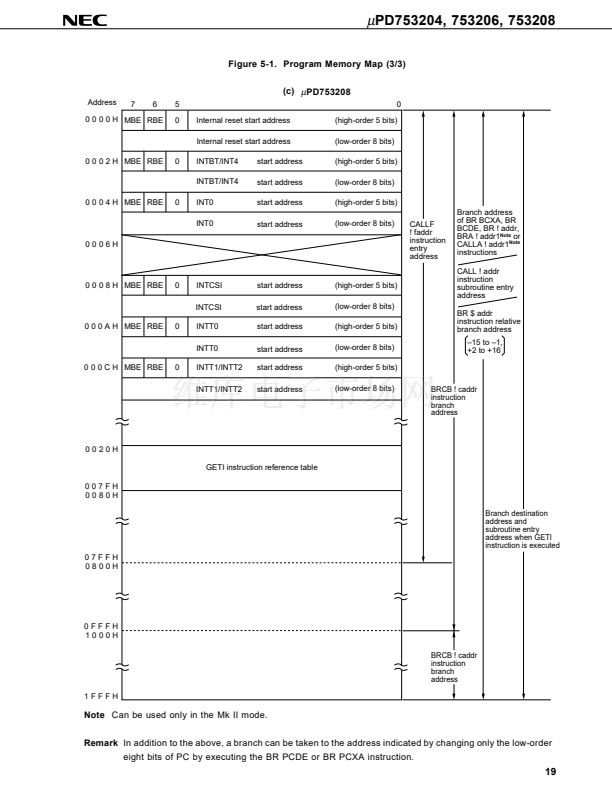

鈥?Program memory (ROM):
4096
脳
8 bits (
碌
PD753204)
6144
脳
8 bits (
碌
PD753206)
8192
脳
8 bits (
碌
PD753208)

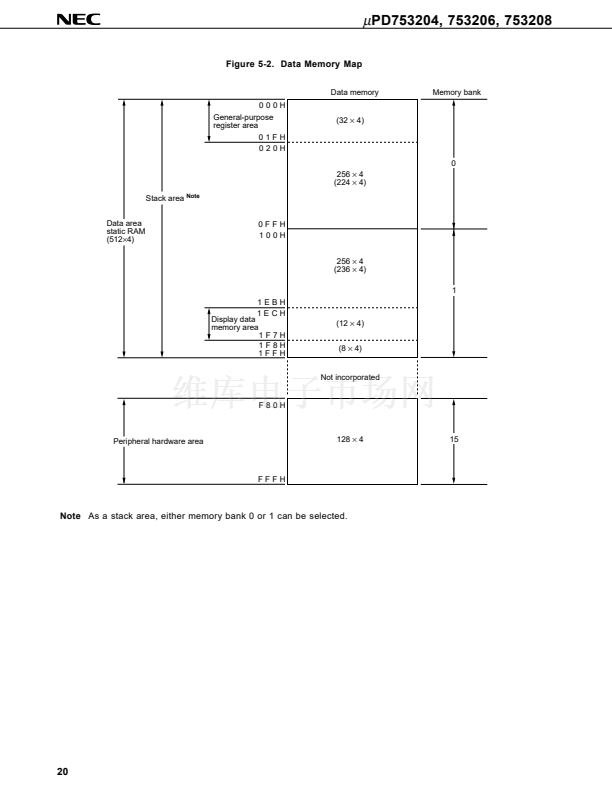

鈥?Data memory (RAM):
512
脳
4 bits

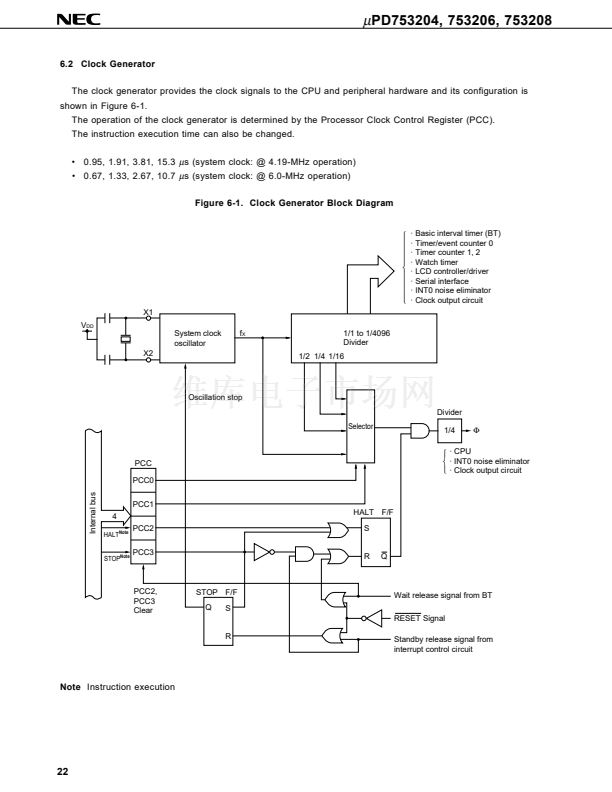

鈥?Variable instruction execution time for high-speed
operation and power saving operation
鈥?0.95, 1.91, 3.81, 15.3
碌
s (@ 4.19-MHz operation)
鈥?0.67, 1.33, 2.67, 10.7
碌
s (@ 6.0-MHz operation)

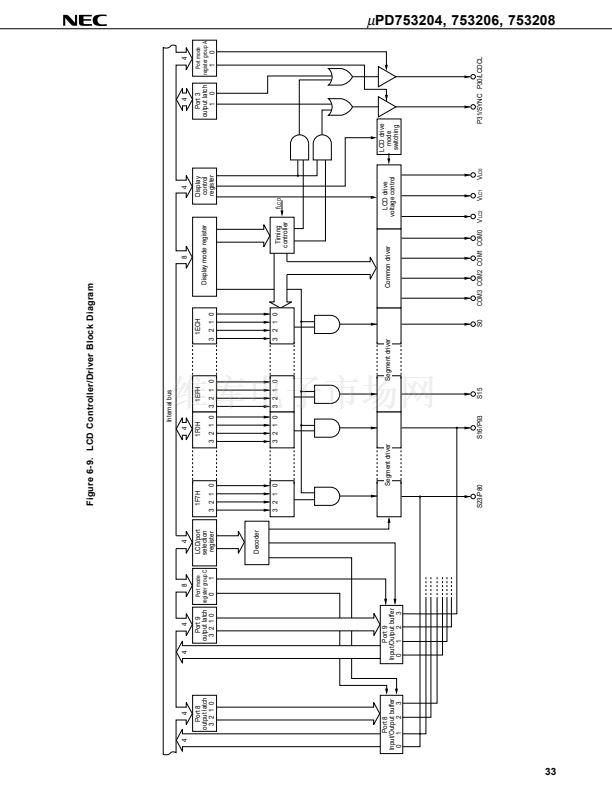

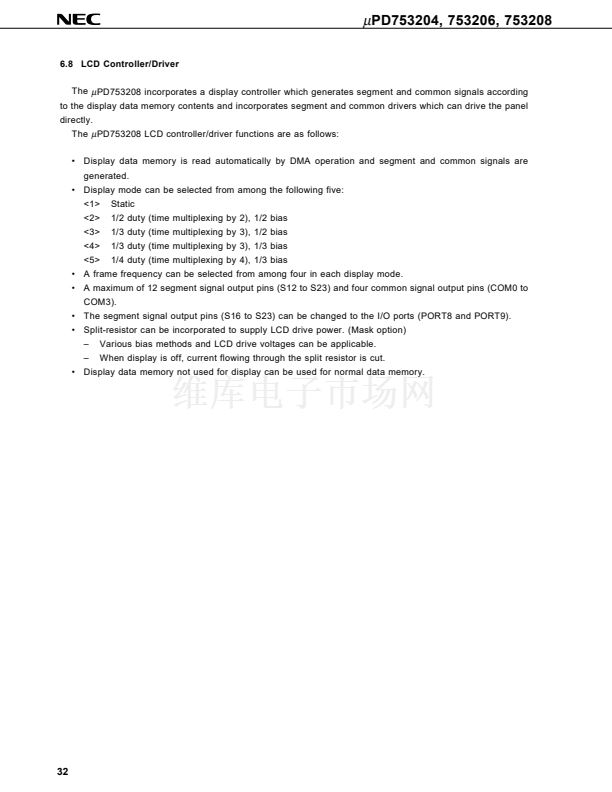

鈥?Internal programmable LCD controller/driver
鈥?Small package:

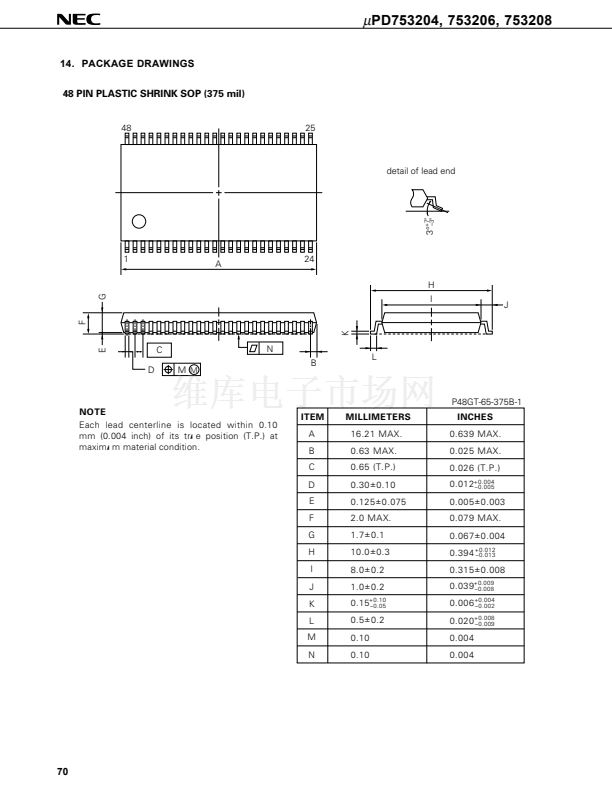

48-pin plastic shrink SOP (375 mils, 0.65-mm pitch)
鈥?One-time PROM version:
碌
PD75P3216
Applications
Remote controllers, Cameras, Sphygnomamometers, Compact-disc radio cassette player compo systems,
gas meters, etc.
Ordering Information
Part number
Package
48-pin plastic shrink SOP (375 mils, 0.65-mm pitch)
48-pin plastic shrink SOP (375 mils, 0.65-mm pitch)
48-pin plastic shrink SOP (375 mils, 0.65-mm pitch)
ROM (脳 8 bits)
4096
6144
8192
碌
PD753204GT-脳脳脳
碌
PD753206GT-脳脳脳
碌
PD753208GT-脳脳脳
Remark
脳脳脳
indicates ROM code suffix.
Unless otherwise specified, references in this data sheet to the
碌
PD753208 mean the
碌
PD753204 and the
碌
PD753206.
The information in this document is subject to change without notice.
Document No. U10166EJ2V0DS00 (2nd edition)
Date Published March 1997 N
Printed in Japan
The mark
shows major revised points.
漏
1996
