UPD70208HLP-12 Datasheet

  • UPD70208HLP-12

  • V40HLTM, V50HLTM 16/8, 16-BIT MICROPROCESSOR

  • 110頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

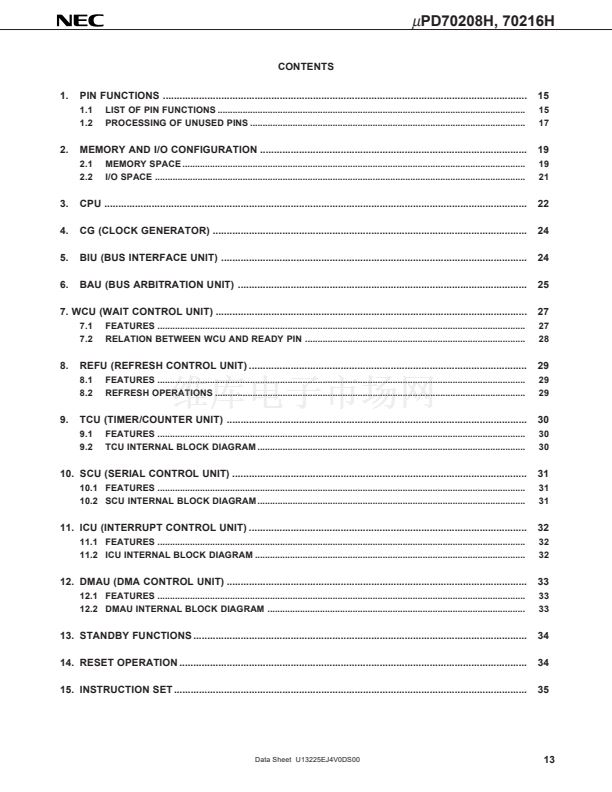

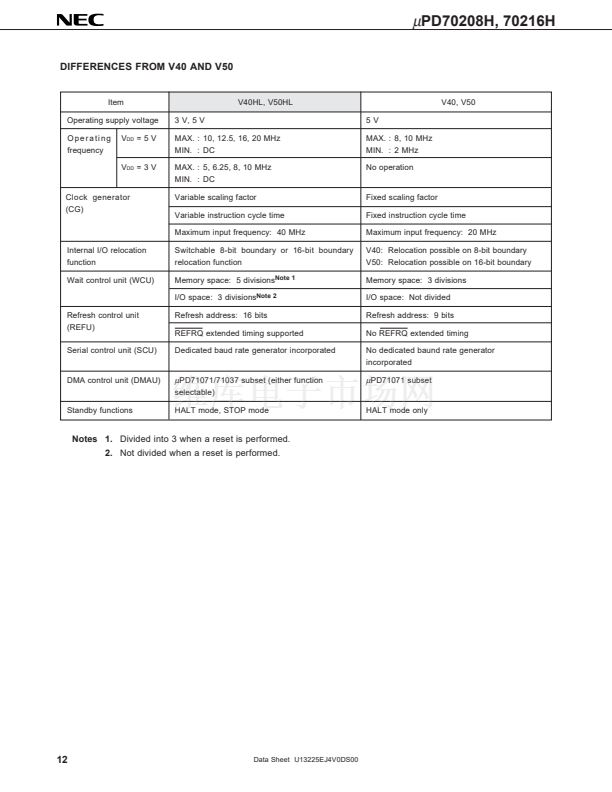

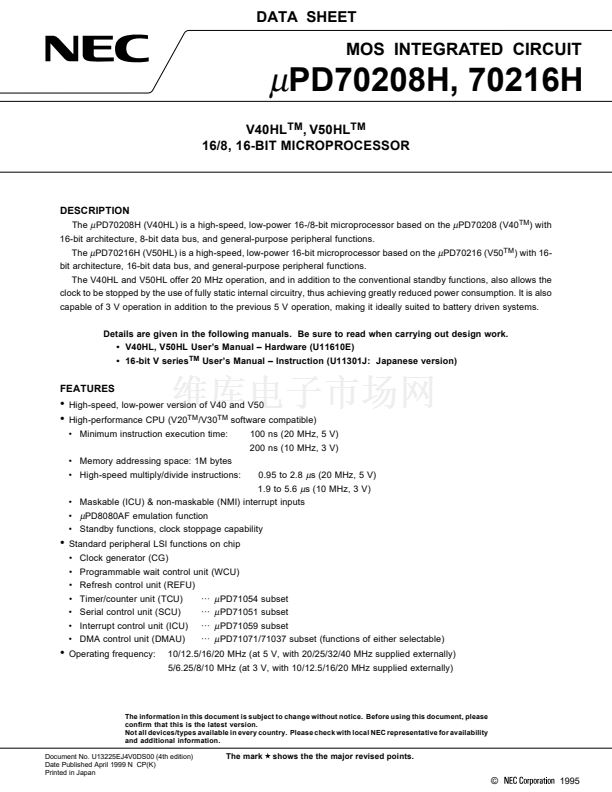

DATA SHEET
碌
PD70208H, 70216H
V40HL
TM
, V50HL
TM
16/8, 16-BIT MICROPROCESSOR
MOS INTEGRATED CIRCUIT
DESCRIPTION
The
碌
PD70208H (V40HL) is a high-speed, low-power 16-/8-bit microprocessor based on the
碌
PD70208 (V40
TM
) with
16-bit architecture, 8-bit data bus, and general-purpose peripheral functions.
The
碌
PD70216H (V50HL) is a high-speed, low-power 16-bit microprocessor based on the
碌
PD70216 (V50
TM
) with 16-
bit architecture, 16-bit data bus, and general-purpose peripheral functions.
The V40HL and V50HL offer 20 MHz operation, and in addition to the conventional standby functions, also allows the
clock to be stopped by the use of fully static internal circuitry, thus achieving greatly reduced power consumption. It is also
capable of 3 V operation in addition to the previous 5 V operation, making it ideally suited to battery driven systems.
Details are given in the following manuals. Be sure to read when carrying out design work.
鈥?V40HL, V50HL User鈥檚 Manual 鈥?Hardware (U11610E)
鈥?16-bit V series
TM
User鈥檚 Manual 鈥?Instruction (U11301J: Japanese version)
FEATURES
鈥?/div>
鈥?/div>
High-speed, low-power version of V40 and V50
High-performance CPU (V20
TM
/V30
TM
software compatible)
鈥?Minimum instruction execution time:
鈥?Memory addressing space: 1M bytes
鈥?High-speed multiply/divide instructions:
100 ns (20 MHz, 5 V)
200 ns (10 MHz, 3 V)
0.95 to 2.8
碌
s (20 MHz, 5 V)
1.9 to 5.6
碌
s (10 MHz, 3 V)
鈥?Maskable (ICU) & non-maskable (NMI) interrupt inputs
鈥?/div>
碌
PD8080AF emulation function
鈥?Standby functions, clock stoppage capability
Standard peripheral LSI functions on chip
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Clock generator (CG)
Programmable wait control unit (WCU)
Refresh control unit (REFU)
Timer/counter unit (TCU)
路路路
碌
PD71054 subset
Serial control unit (SCU)
路路路
碌
PD71051 subset
Interrupt control unit (ICU) 路路路
碌
PD71059 subset
DMA control unit (DMAU)
路路路
碌
PD71071/71037 subset (functions of either selectable)
10/12.5/16/20 MHz (at 5 V, with 20/25/32/40 MHz supplied externally)
5/6.25/8/10 MHz (at 3 V, with 10/12.5/16/20 MHz supplied externally)
鈥?/div>
鈥?/div>
Operating frequency:
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for availability
and additional information.
Document No. U13225EJ4V0DS00 (4th edition)
Date Published April 1999 N CP(K)
Printed in Japan
The mark
shows the the major revised points.
漏
1995
