UPD61P24 Datasheet

  • UPD61P24

  • 4-BIT SINGLE-CHIP MICROCONTROLLER FOR REMOTE CONTROL TRANSMI...

  • 36頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD61P24
4-BIT SINGLE-CHIP MICROCONTROLLER
FOR REMOTE CONTROL TRANSMISSION
DESCRIPTION
The
碌
PD61P24 is a 4-bit single-chip microcontroller for infrared remote controllers for TVs, VCRs, stereos, cassette
decks, air conditioners, etc.
As the
碌
PD61P24 is user-programmable, it is ideal for evaluation of programs running in a
碌
PD6124A or 6600A,
and for small-scale production of such systems.
The functions of the
碌
PD61P24 are described in detail in the following User鈥檚 Manual. Be sure to read this
manual before designing your system.
碌
PD612X Series User鈥檚 Manual: IEP-1083
FEATURES
鈥?Transmitter for programmable infrared remote control-
ler

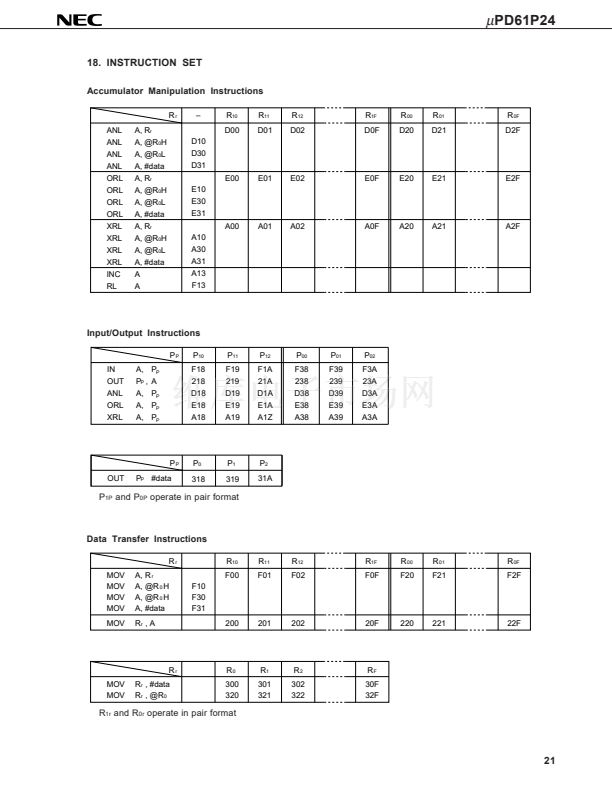

鈥?19 types of instructions
鈥?Instruction execution time: 17.6
碌
s (with 455-kHz ce-
ramic resonator)

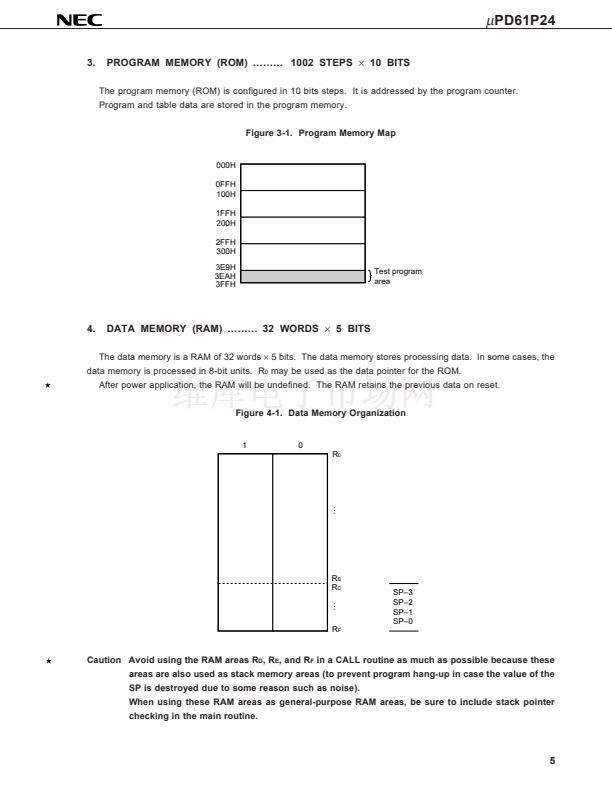

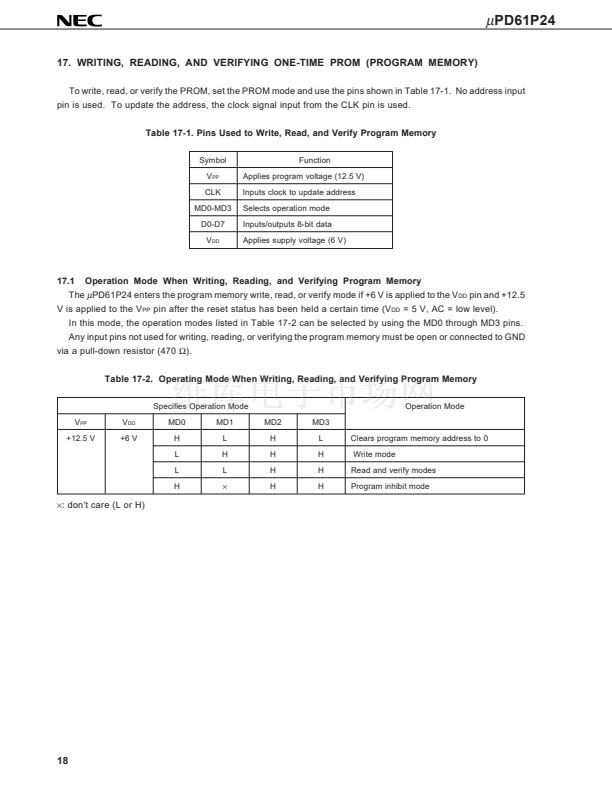

鈥?On-chip one-time PROM: 1002
脳
10 bits
鈥?Data memory (RAM) capacity
鈥?I/O pins (K
I/O
): 8 pins
鈥?Input pins (K
I
): 4 pins
: 32
脳
5 bits

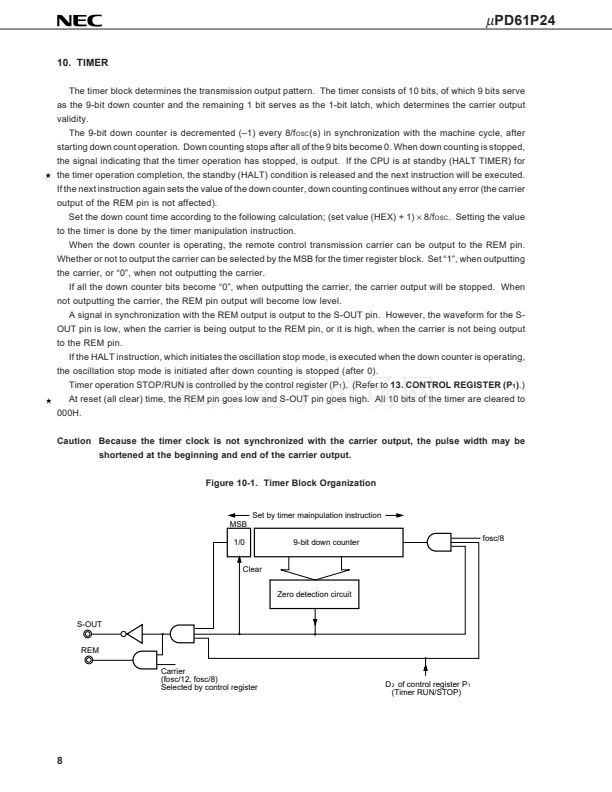

鈥?9-bit programmable timer: 1 channel
鈥?Serial input pins (S-IN): 1 pin
鈥?Transmission-in-progress indication pin (S-OUT): 1
pin
鈥?Transmit carrier frequency (REM)
f
OSC
/12, f
OSC
/8
鈥?Standby operation (HALT/STOP mode)
鈥?Low power consumption
鈥?Current consumption in STOP mode (T
A
= 25擄C)
1
碌
A MAX.
鈥?Low-voltage operation: V
DD
= 2.2 to 5.5 V
Caution To use the NEC transmission format, ask NEC to supply the custom code.
Do no use R
0
when using a register as an operand of the branch instruction.
The information in this document is subject to change without notice.
Document No. U12629EJ4V0DS00 (4th edition)
Previous No. IC-2876
Date Published July 1997 N
Printed in Japan
The mark
shows major revised points.
漏
1997
